Vectra Genisys® Therapy System
PATIENT PREPARATION
37

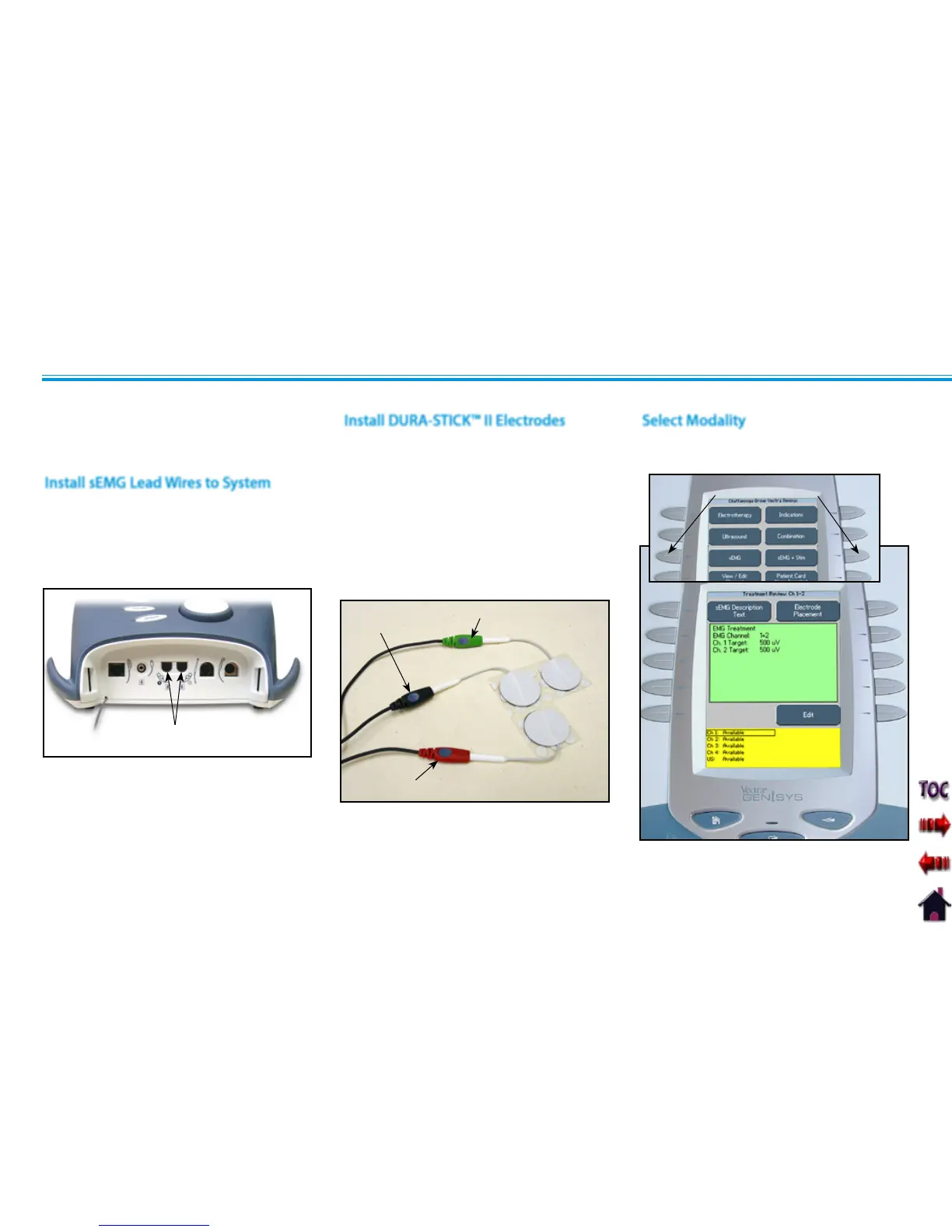

Install sEMG Lead Wires to System
Connect a DURA-STICK II 1.25 in (3 cm)
disposable electrode to each lead. These
electrodes are designed for use with
Chattanooga equipment and will provide
an accurate reading of sEMG activity.
Leave electrodes on the protective
backing until treatment area has been
prepared.
sEMG AND sEMG+STIM PATIENT PREPARATION
Remove the Front Access Cover from the
Therapy System and remove the existing
Lead Wires. Connect the sEMG Lead wires
to the channel(s) desired for use with the
sEMG or sEMG + Stim modality.
CONNECT sEMG LEAD WIRES
Replace the Front Access Cover.
NOTE: Two Channels may be used for
sEMG Therapy at the same time. If four
electrotherapy channels are available, a
maximum of only two may be used at a
time and must be channels 1/2 or 3/4.
Install DURA-STICK™ II Electrodes Select Modality
Press the sEMG or sEMG + Stim button as
required for the therapy prescribed.
PRESS sEMG OR sEMG+STIM BUTTON
REFERENCE GREEN LEAD
ACTIVE RED LEAD
ACTIVE BLACK
LEAD
This section applies only to models
capable of supporting the functions of the
sEMG module.
