Chattanooga 2761 - sEMG+STIM Therapy Set Up

Vectra Genisys® Therapy System
63
OPERATION
INDICATIONS (CONTINUED)

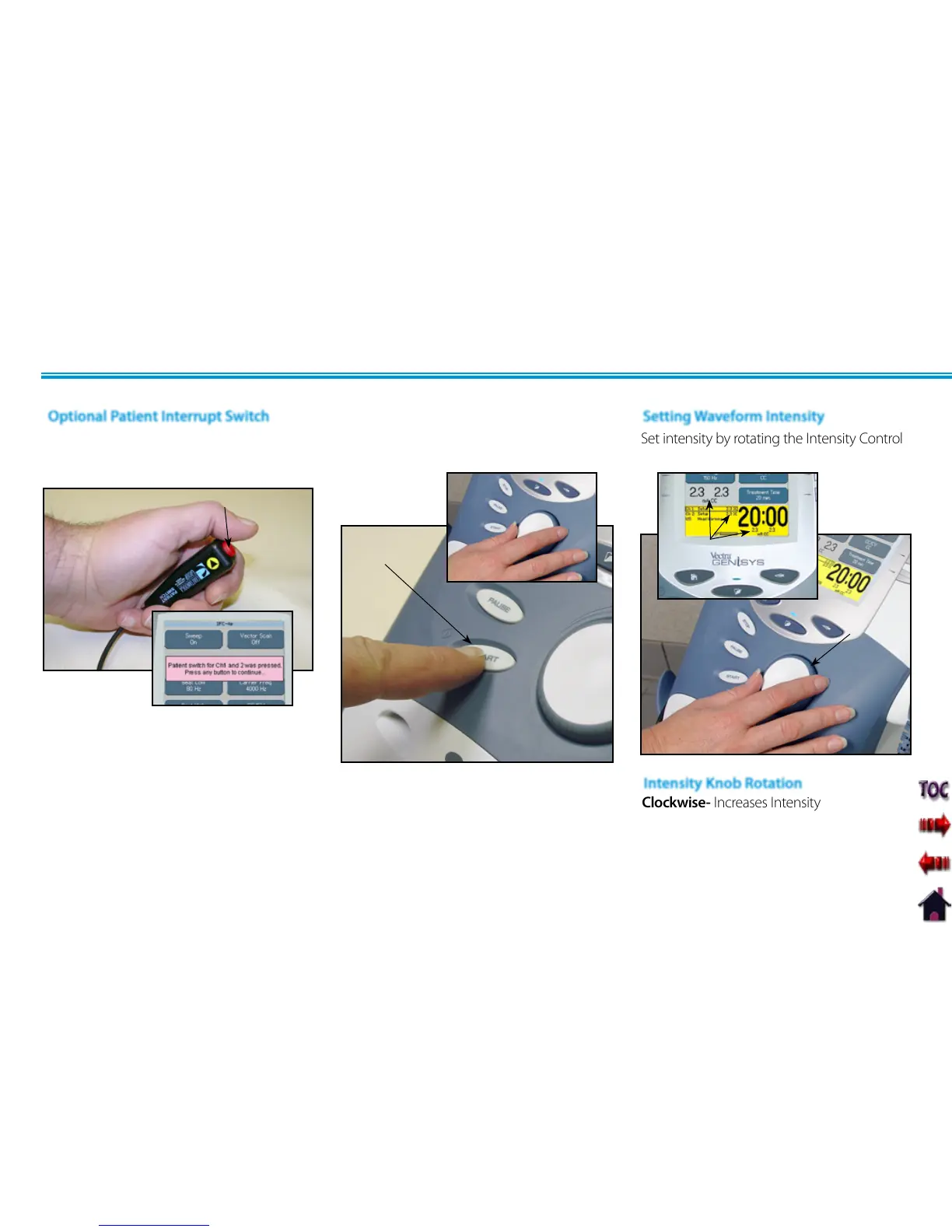

Give Patient Interrupt Switch to patient
and explain that pressing the Red button
once pauses the therapy session.
Optional Patient Interrupt Switch
PRESSING BUTTON ONCE PAUSES SESSION
If Patient Interrupt Switch is depressed, the
treatment will be paused and a message
will appear on the System screen.
Press any button to clear the message.
NOTE: If the Patient Interrupt Switch
is depressed a second time,
the message will clear from
the screen and the treatment
will remain paused.
Reset intensity and press the Start button
to resume session.
START
BUTTON
Set intensity by rotating the Intensity Control
Knob to the prescribed level.
Setting Waveform Intensity
INTENSITY
DISPLAYED
ROTATE
INTENSITY
KNOB
Clockwise- Increases Intensity
Counterclockwise- Decreases Intensity
Intensity Knob Rotation
