27

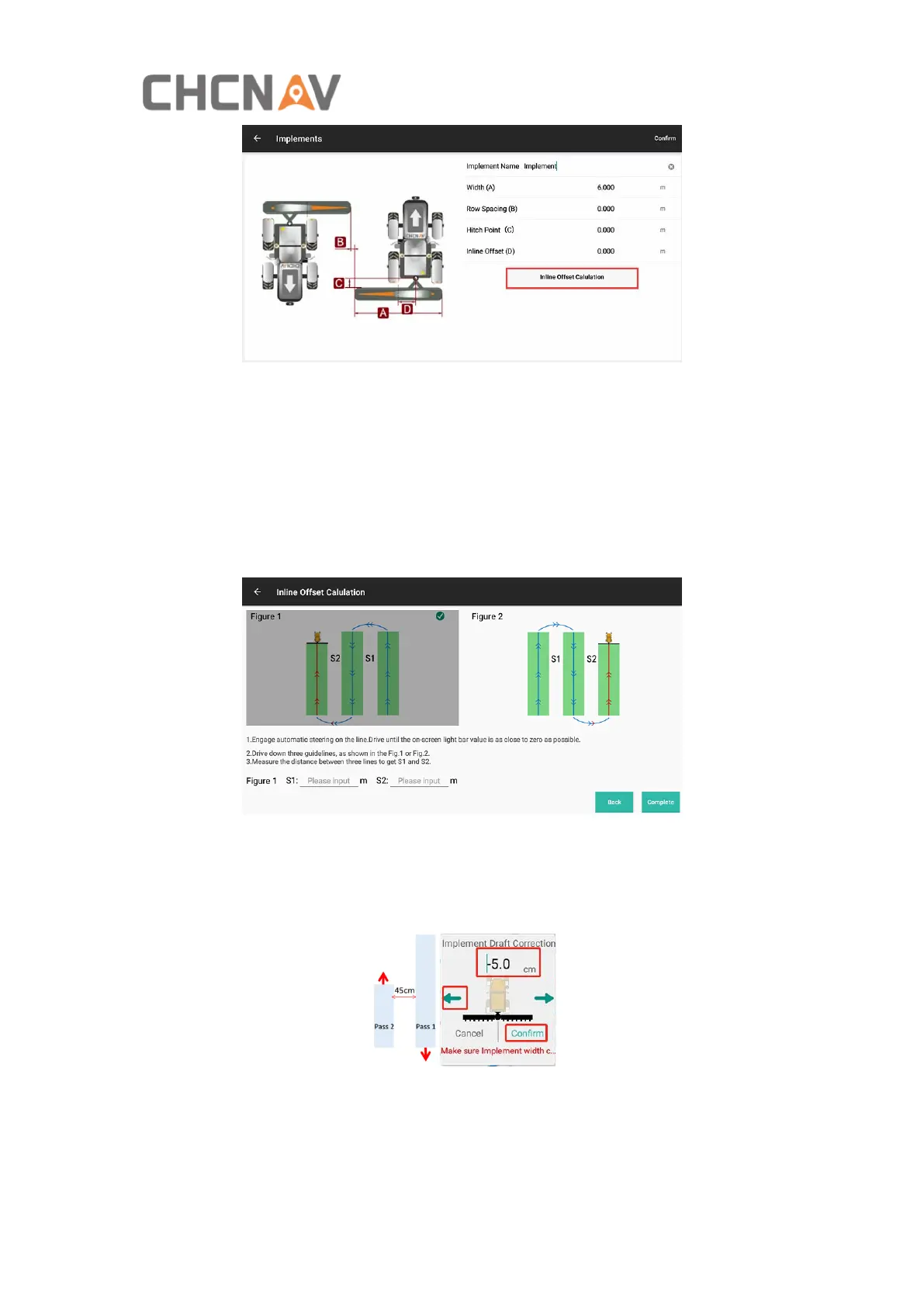

Width: Implement width, and the default value is 6m.
Row Spacing: The distance between two passes, and the default value is 0m.
Hitch Point: The distance from hitch point to implement, and the default value is 0m.
The current algorithm do not use this value, so it has no practical significance.
Inline Offset: The offset from implements center to vehicle center.
If there is the row spacing issue with skip or overlap, it is necessary to click Inline
Offset Calculation to make offset calculation.
There are two methods to choose, then follow the instruction.
C: Setup the Center offset. For example, if the row spacing is 50 cm, drive two passes,
then check the actual row spacing is 45 cm, click the left arrow 5 times to do the left
shift with 5 cm.
10. Brightness configuration. There are three modes including sunny, cloudy and
night modes.
