Chino KP3000 User Manual

-11 -
7-2. Cable for communication
Before connecting, prepare the exclusive communication cables. They are available with our
company also and you can order them.

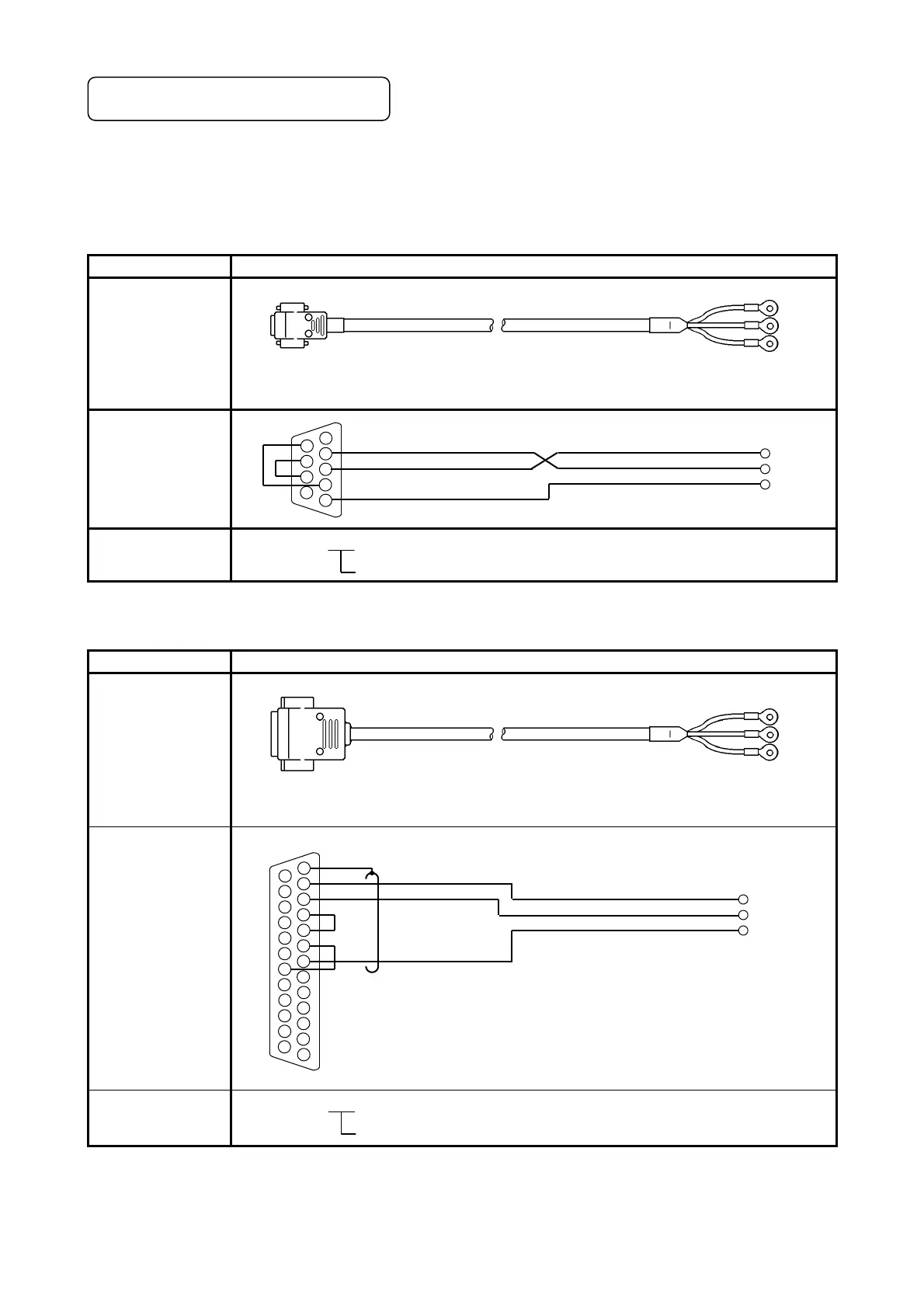

7-2-1. Communication cable for RS-232C (Between PC/Line converter)
① Connection between PC (9 pin) and KP, PC (9 pin) and line converter
Cable
9 pin connector ↔ 0 type crimp-style terminal ↔ RS-232 cable
Format
Internal wiring
Model code
RZ-CRS6□□
Cable length is 1 to 15m (Specified)
② Connection between PC (25 pin) and KP, PC (25 pin) and line converter
Cable
25 pin connector ↔ 0 type crimp-style terminal RS-232C cable
Format
Internal wiring
Model code
RZ-CRS2□□
Cable length is 1 to 15m (Specify)
ＳＤ
ＲＤ
ＳＧ
PC side 25 pin
connector
Cable （Maximum length 15m） for RS-232C
KP
Line converter side
ＲＤ
ＳＤ
ＳＧ
Cable （Maximum length 15m） for RS-232C
PC side 9 pin
connector
KP
Line converter side
ＳＤ
ＲＤ
ＳＧ
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
For NEC make PC 98 series

Chino KP3000 Specifications

General

Brand	Chino
Model	KP3000
Category	Controller
Language	English
