Chino KP3000 User Manual

- 13 -

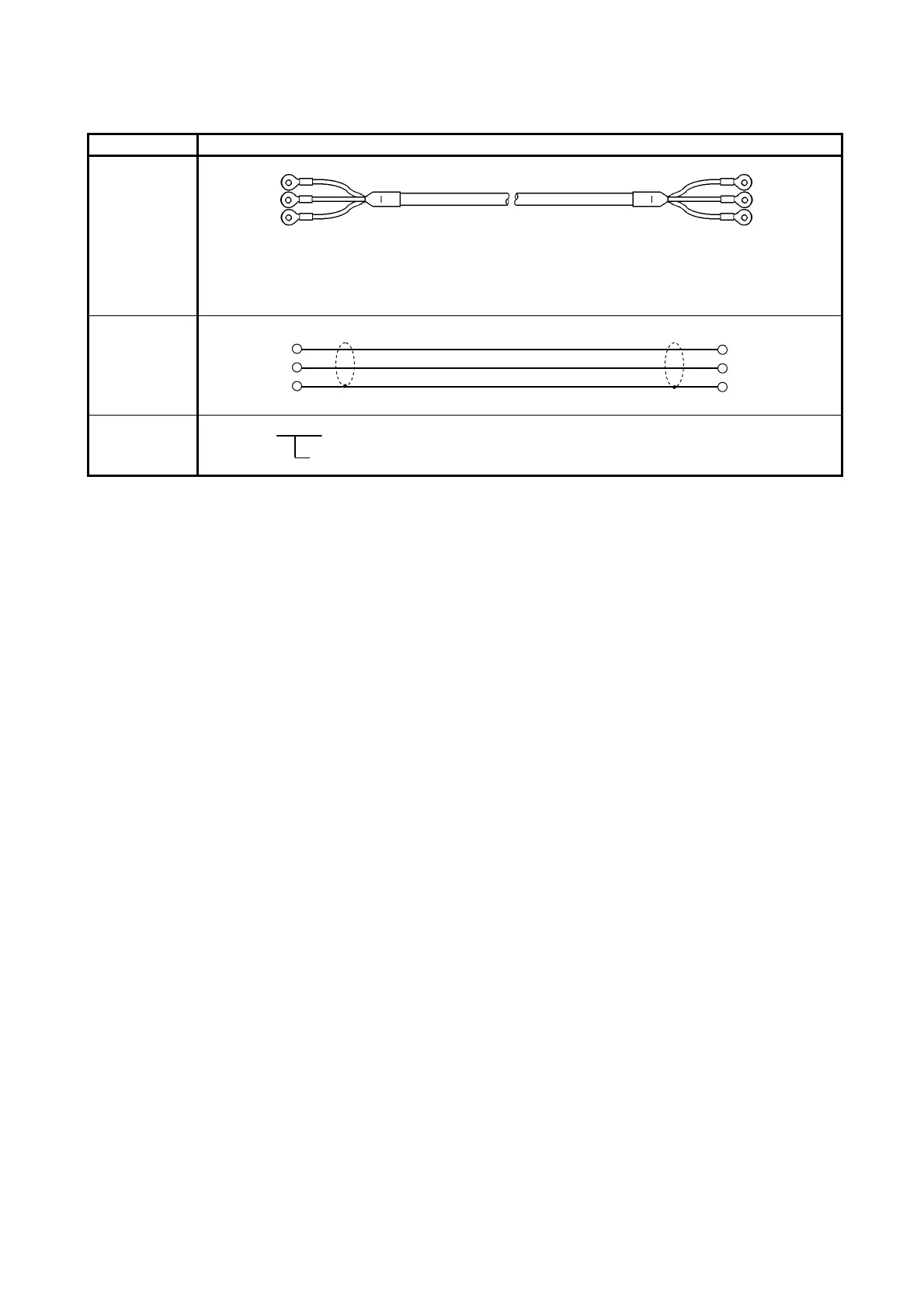

7-2-3. Communication cable for RS-485
① Connection between line converter and KP; and between KPs
Cable
0 type crimp style terminal ↔ 0 type crimp style terminal RS-485 cable
Format
SG (Signal Grand) wire is available in both the terminals using 2 wick cable made by
twisting CVVS wire. It is disconnected and used as there is no SG terminal on the line
converter side.
Internal
wiring
Model code
RZ-LEC□□□
Cable length is 001 to 200m (Specified)
RDA (Black)
RDB (White)
SG (Green)
(Black) SA
(White) SB
(Green) SG
Line converter side
KP side
ＲＤ
Ａ
ＲＤ
Ｂ
Ｓ
Ｇ
ＳＡ
ＳＢ
ＳＧ
