Chroma 11021 User Manual

Specification
2-7
2.4 Zeroing
Open Zeroing: It eliminates the open stray impedances measurement errors caused by the
test fixture.
Short Zeroing: It eliminates the short residual impedances measurement errors caused by
the test fixture.
2.5 Measurement Time
Table 2-4 lists the measurement time from the measurement start, sampling, calculating to
binning or comparing signal output.
11021 Measurement Time:
Item Fast Medium Slow
100Hz/120Hz 85mS
1KHz/10KHz 75mS
145mS 325 mS
11021-L Measurement Time:
Item Fast Medium Slow
1KHz/10KHz 75mS 145mS 325 mS
40KHz 105mS 185mS 415mS
50KHz 90mS 150mS 400mS
Table 2-4 Measurement Time

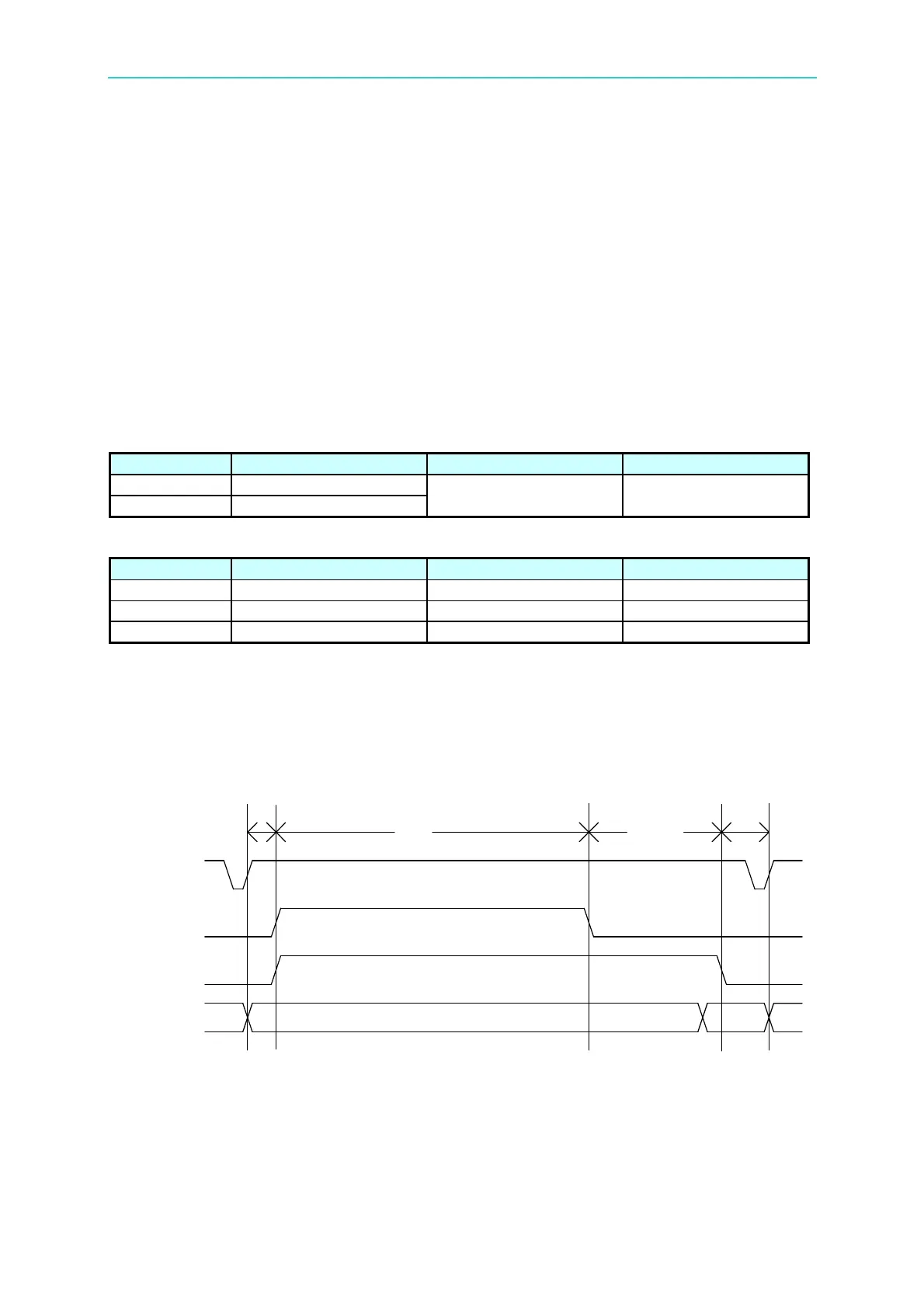

2.6 Trigger Timing
1. Clear Mode (see 4.3 Setting for Operation)
T2
T4
T3
/Jugement
result
Invalid Valid
/ACQ
/EXT Trig.
/EOT
T1
T1: It is the time of trigger delay that can be set from 0 ~ 9999mS.
T2: It indicates the sampling of analog signal is done and the test goes the next DUT (/ACQ).
T3: It is the time of firmware calculation & judgment signal output completion (/EOT: T2 +
T3).
T4: It is the time of next trigger since the measurement ended. (The time length is depending
on the trigger signal.).
