LCR Meter 11021 / 11021-L User’s Manual
4-8

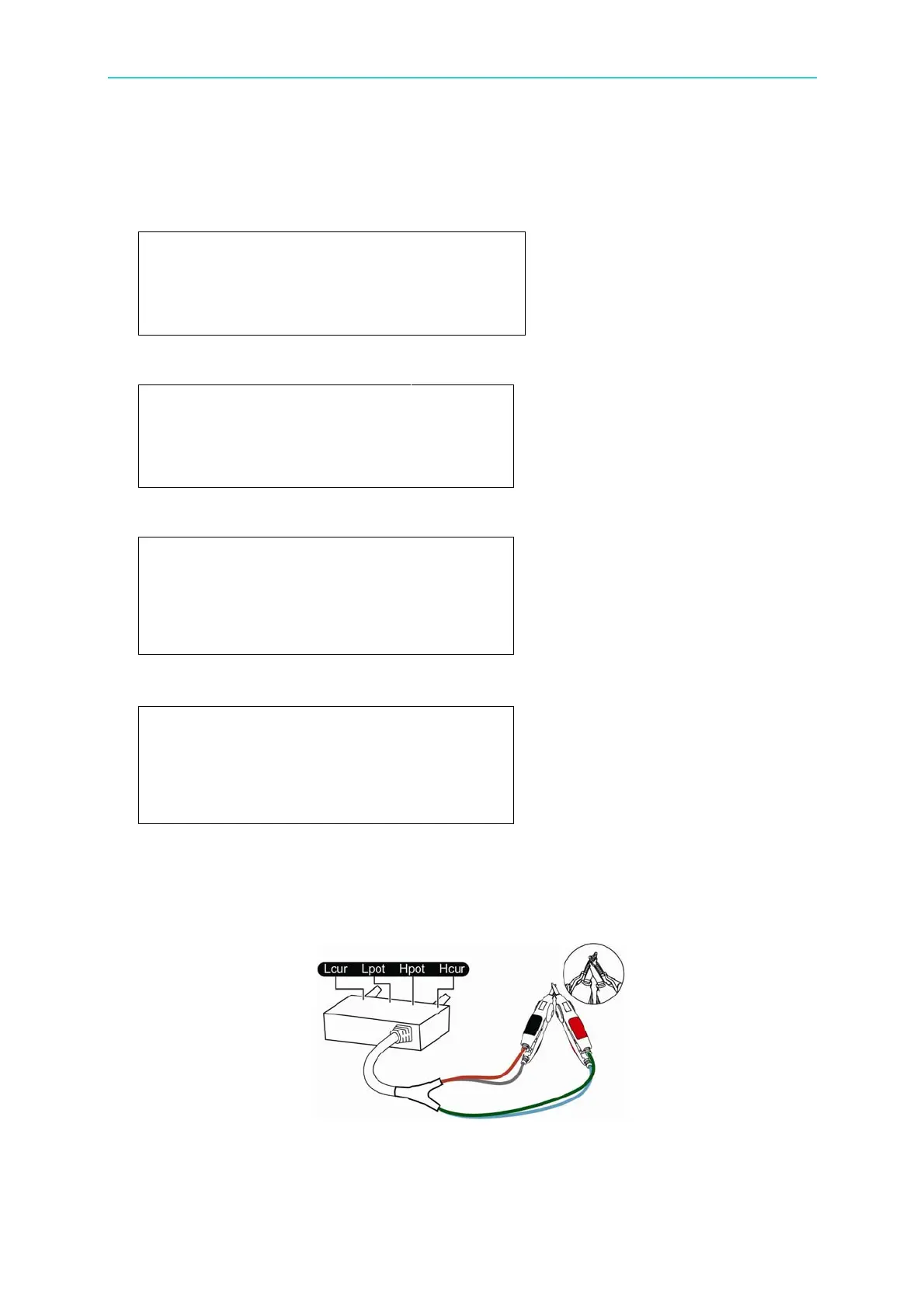

4.4.2 Short Correction
1. When the meter is powered on normally, press [MAIN INDEX] to enter the main screen
as shown below:
2. Press [F3] to show the following screen:
3. Press [F2] to show the following screen:
4. Select Single or Multi frequency as need, and the screen appears as below:
The figure above tells the user that it will do the short correction now. Please prepare the
test cable and press [TRIGGER] to start the correction. Be sure to use the
Test Cable of
4BNC/2Clips shipped along with the LCR Meter and keep it in short state as the figure shown
below.
When the test cable is connected as the figure shown above, be sure to connect H
CUR
and
L
CUR
first and then the
POT
and
CUR
. Press [Trig] to start the short correction. When there is a
< MAIN INDEX > BINNING ÅSet the sorting test
COMPARE ÅSet HI/LO limit for comparison
CORRECTION ÅZeroing calibration
F1
F2
F3
F4
< CORRECTION > OPEN Å Open zeroing
SHORT Å Short zeroing
F1
F2
F3
F4
< CORRECTION SHORT > SINGLE Å Single frequency
MULTI Å Multi frequency
ABORT
F1
F2
F3
F4
Å Cancel correction, return to
previous page
< CORRECTION SHORT >
SHORT CIRCUIT TEST LEADS
THEN PRESS TRIGGER.
ABORT
F1
F2
F3
F4
Å Cancel correction, return to
previous page
To Next Page
