Description of Panel
4-3

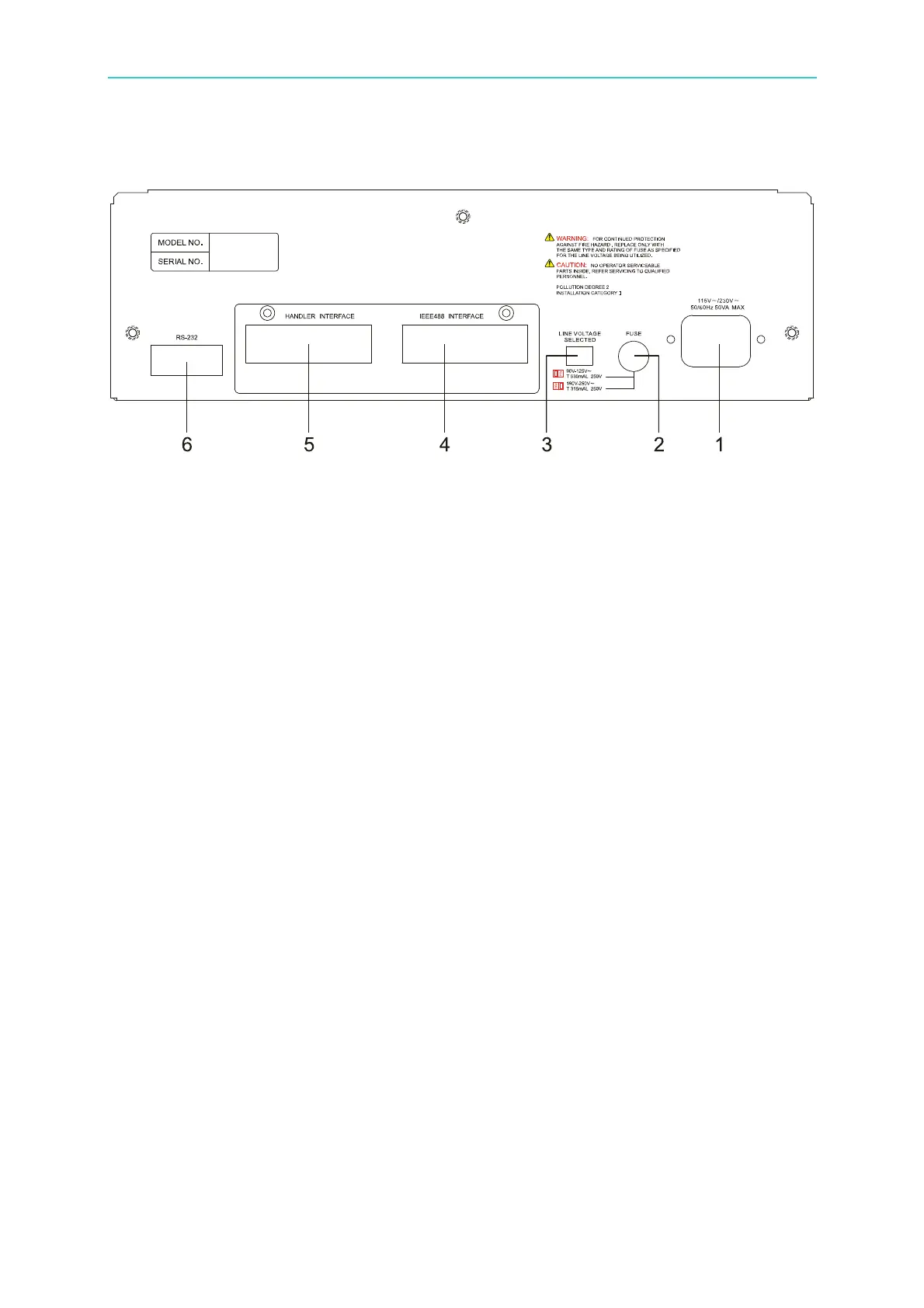

4.2 Rear Panel Description
(1) AC Line
It meets the International Electromechnical Commission 320 standard for 3-wire socket.
Please use the power cord of Beeline SPH-386 or similar (the accessory W12 010130).
(2) Fuse
A 630mA or 315mA slow blow fuse is used to prevent the over current from occurring
when the instrument power is in 90 ~ 125V or 190 ~ 250V.
(3) Power Voltage Switch
Be sure to power off the instrument before switching the voltage. Use a small flat
screwdriver to switch the power voltage to the proper position.
(4) IEEE488 Interface Connector
The input/output connecting cable follows the IEEE488-1978 standard. The functions
include: total remote control, selected result output, with or without controller, and
IEEE-488 interface connection acceptance.
(5) HANDLER Interface Connector
It is the element handler. The output is GO/NG and status etc., while the input is “Start”
signal. It accepts Amphonol “Microribbon” plug or P/N 57-30240 or equivalent products.
(6) RS232 Interface Connector
The input/output connecting cable follows the RS232 standard. The functions include:
total remote control, selected result output, with or without controller, and RS232
interface connection acceptance.
