Programmable DC Electronic Load 6310 Series Operation & Programming Manual
Time
Current
Load1
load2
10mS 10mS
10mS 10mS
4A
2A
T1
T2
T1
T2

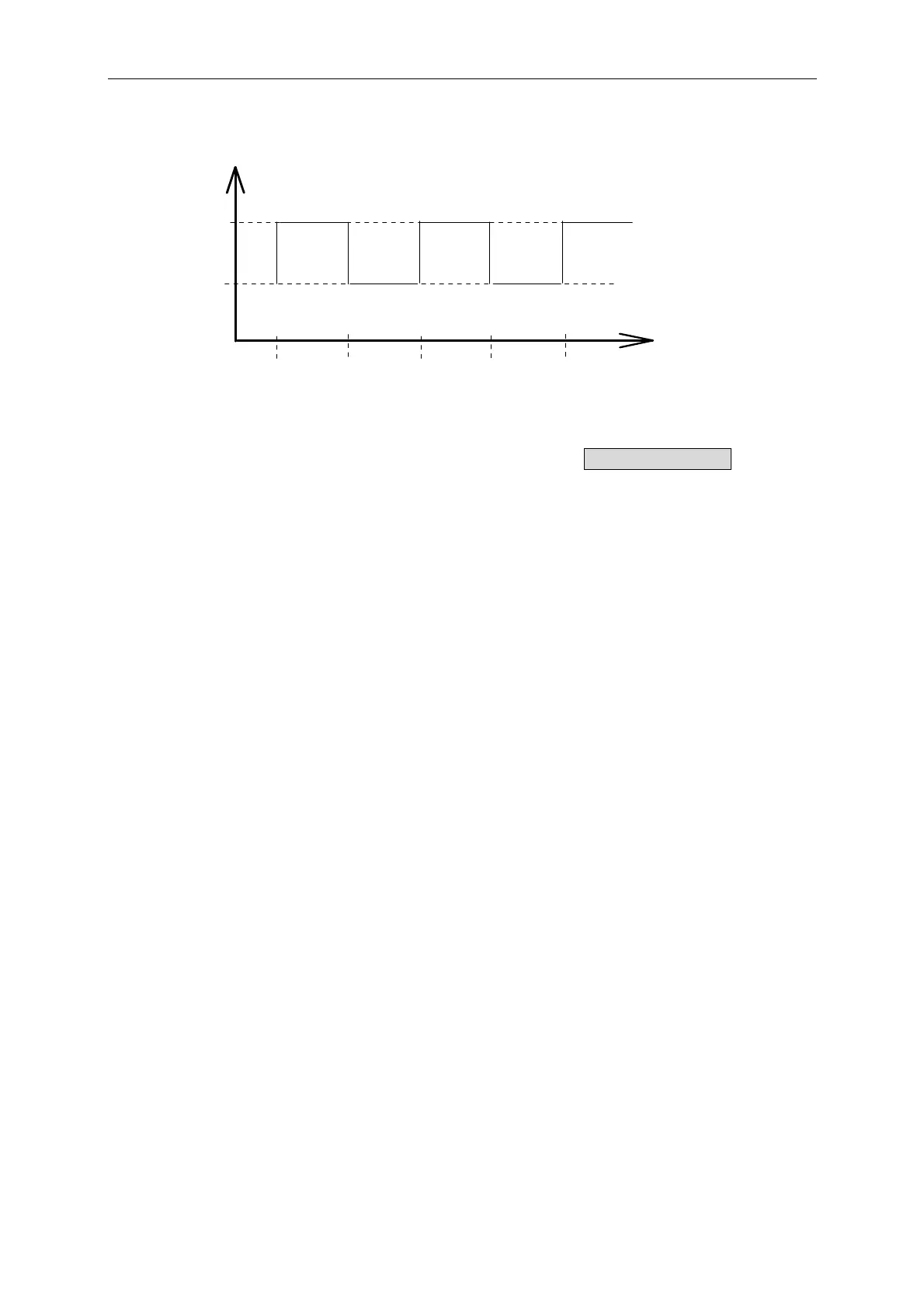

Figure 3-5 Dynamic Current Waveform
The STATic/DYNAmic functions can also be selected through STATIC/DYNAMIC key on the
Load module.
Slew Rate (Rise, Fall A/μS or mA/μS)
Slew rate determines the rate at which the current input of a module change to a newly
programmed value. There are two slew rate values, which are rise rate and fall rate.
Voltage Ranges (Low, High)
There are two voltage ranges for voltage measurement and Von voltage setting. The low
range provides better resolution at low voltage measurements. If the value is over the
maximum of low range, you must select the high range. The CC mode voltage range
selection is in configuration setting.
3-6
To Next Page
