Programmable DC Electronic Load 6310 Series Operation & Programming Manual

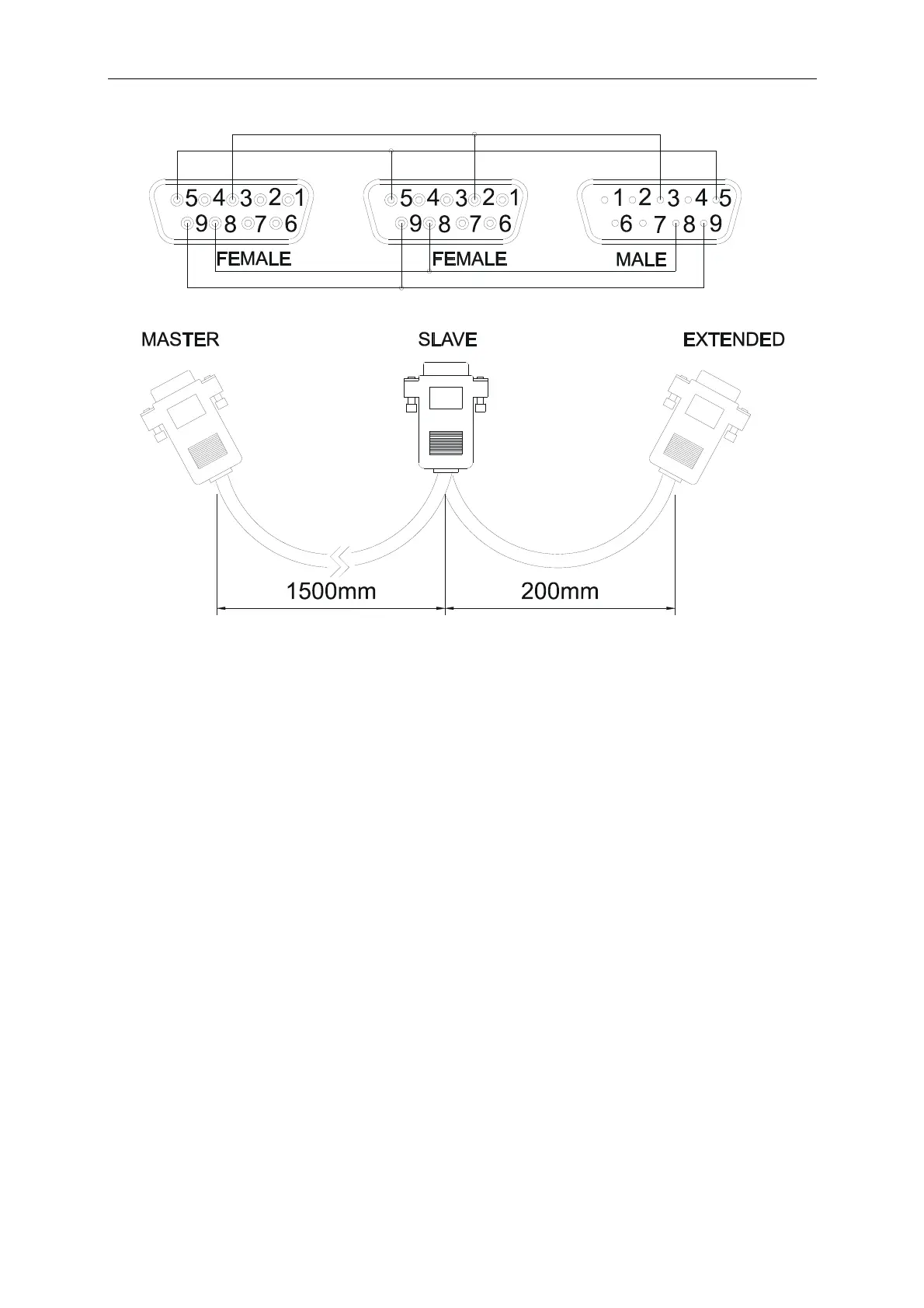

Figure 4-6 Synchronous Cable Connections
4.3 Local Operation of Load Module
There are two types of panels in Load module, single channel module panel and double
channels module panel. There are four keys for each of the module panel. Only one key is
different from the keypads. Figure 4-7 shows the single channel/module front panel.
