Programmable DC Electronic Load 6310 Series Operation & Programming Manual
6+ ,)7
(17(5
M
A
I
N
F
R
A
M
E

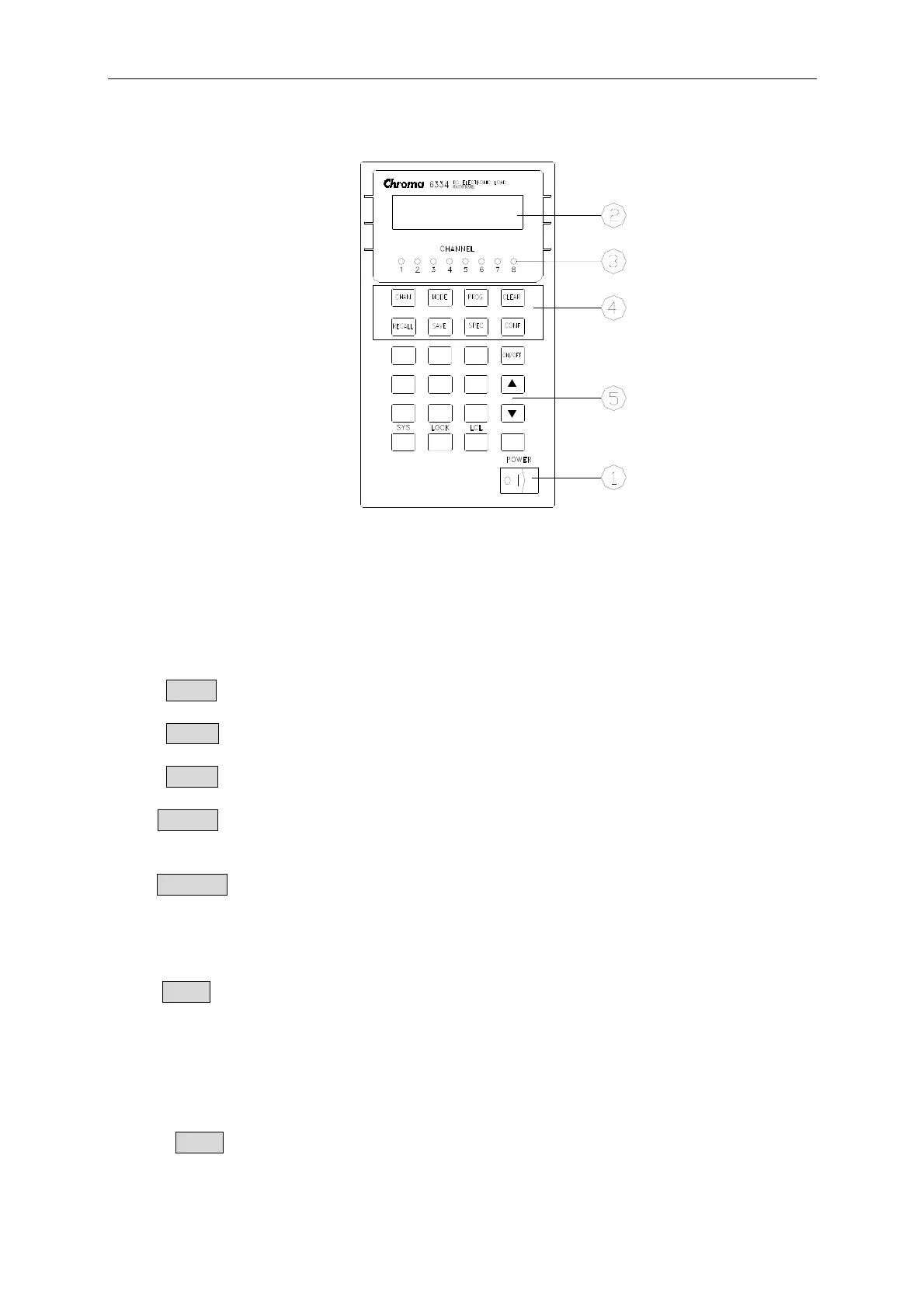

Figure 4-1 Front Panel of Mainframe
1. Line switch Turn the ac power on/off.
2. LCD display Display channel information normally.
Channel indicator Indicate the active channel setting.
Function keys
CHAN To select a channel for settings.
MODE To select a mode for settings.
PROG To select a program for settings or running.
CLEAR To clear the digit entered from keypad. This key lets you
correct the wrong digits before they are entered.
RECALL To recall the saved settings from EEPROM, and all channel’s
settings from specified files (1 to 101). Recalling file 101
means to recall the factory default setting. The recall program
is from PROG, number 1 to 10.
SAVE To save all of the present mode settings of all channels in the
specified files (1 to 100). The save program is from 1 to 10.
Saving DEFAULT is to save the status of all channels for the
next time the Electronic Load is turned on. All saved settings
are stored in EEPROM, and will not be lost when ac power is
cycled.
SPEC To select specification data for editing, or to enable SPEC
function.
4-2
