IMPORTANT: On both parts there can be found a triangle which should be
pointing towards each other.
Make sure the magnet is placed next to the transmitter (within 1 centimeter).
Enter the password on the control panel and press button.
The button will light up.
Separate the transmitter and magnet more than 1 cm from each other.
The sensor will be triggered.
The control panel will beep once when connecting is successfully. If the system beeps
twice the sensor has already been connected.
1.
2.
3.
4.
5.
Electric Lock Output
The connector of PUSH and GND of the electric lock should be connected to the
output connector of PUSH and GND at the bottom of the control panel.
When disarming the system with the control panel connected to an electric lock, the
control panel will send a signal and the lock will be opened automatically.
Note: The door which is equipped with electric lock will open automatically if there is a power
failure. It is suggested that backup power supply should be provided for electric lock to prevent
from power failure.
LED indicator
Blink once
Blink once per 3 seconds
: Door/window open detected
: Low battery indication, please change the batteries
immediately.
Note: When battery level is low you will receive an SMS for notifcation.

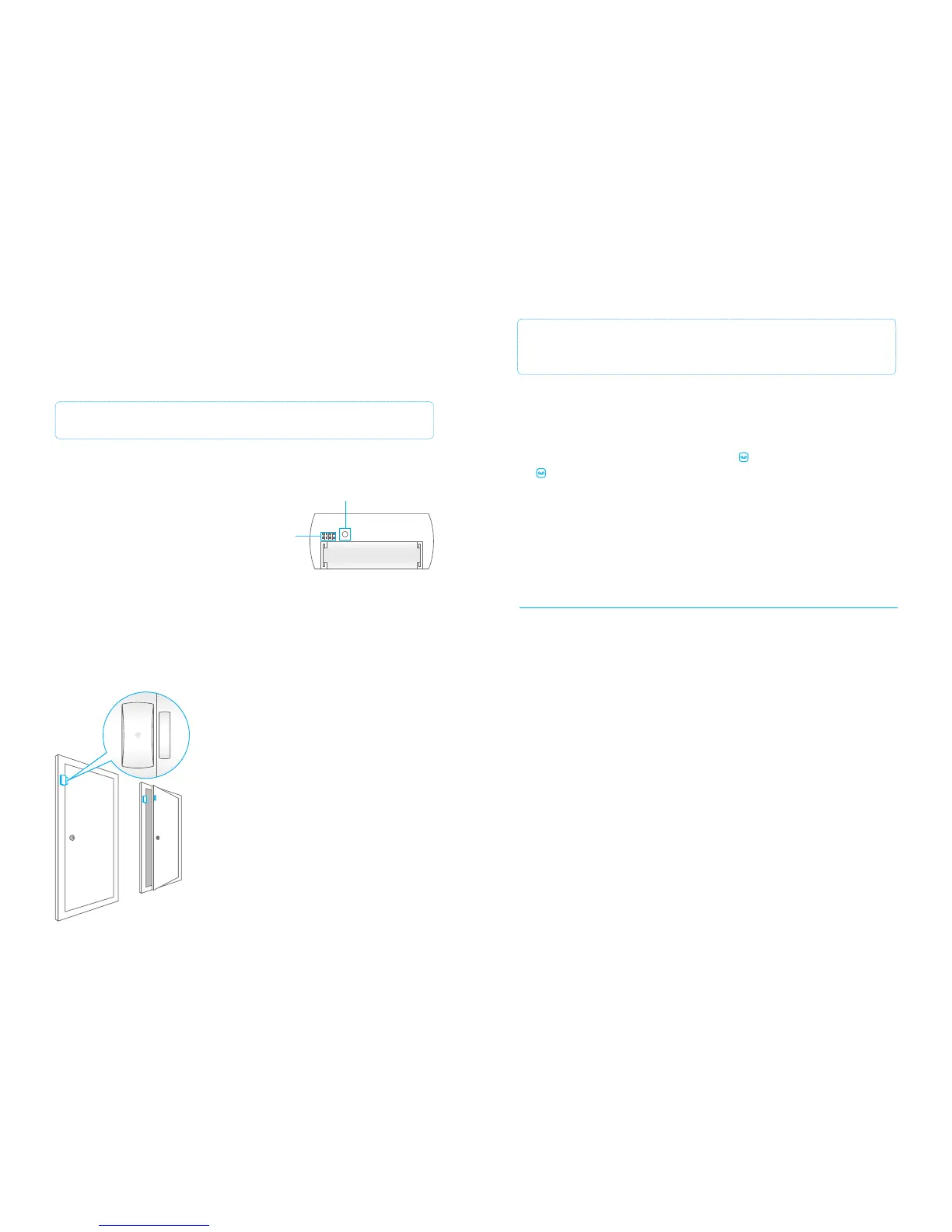

Inside the door/window contact
Tamper switch
When opening the housing of the
door/window contact the tamper
switch will be triggered and send a
signal to the control panel.
Tamper switch
Group setting
AA 1.5V LR6
Installation tips
The door/window sensor can be installed on doors, windows or any other objects that
can be opened or closed. When installing it on a windows the sensor (large part) can
be applied to the frame and the magnet on the window itself.
The LED indicator must blink once when the
transmitter and magnet are being separated more
than one centimeter.
The distance between the transmitter and magnet
must not be over one centimeter in closed position.
Apply both parts with the included double-sided
tape. It is also possible to apply the contact with
screws.
It is not recommended placing door/window contact
in areas with a lot of metal. This also applies to a
surface with a lot of metal. Always check if the LED
indicator blinks when opening the door or window.
Connecting magnet contact
PIR-900 Wireless PIR Motion Detector
1.
2.
3.
1.
2.
3.
IMPORTANT: When single zone group is selected, the sensor will always be in
the normal group. It is not possible to place it in the home group.
