LE-3xx/LE-4xx Hardware Installation & User Guide
51
CONSOLE PORT PIN ASSIGNMENTS
A
Console Port Pin Assignments
The RS-232 serial console port located on the front of the device uses a common
9-pin, D-type connector for attachment. The DB-9 connector on the device is a
male connector. The cord used to connect to the device should be a standard null
modem cable with a female DB-9 connector. The pin assignment is shown in
Figure A-1
.

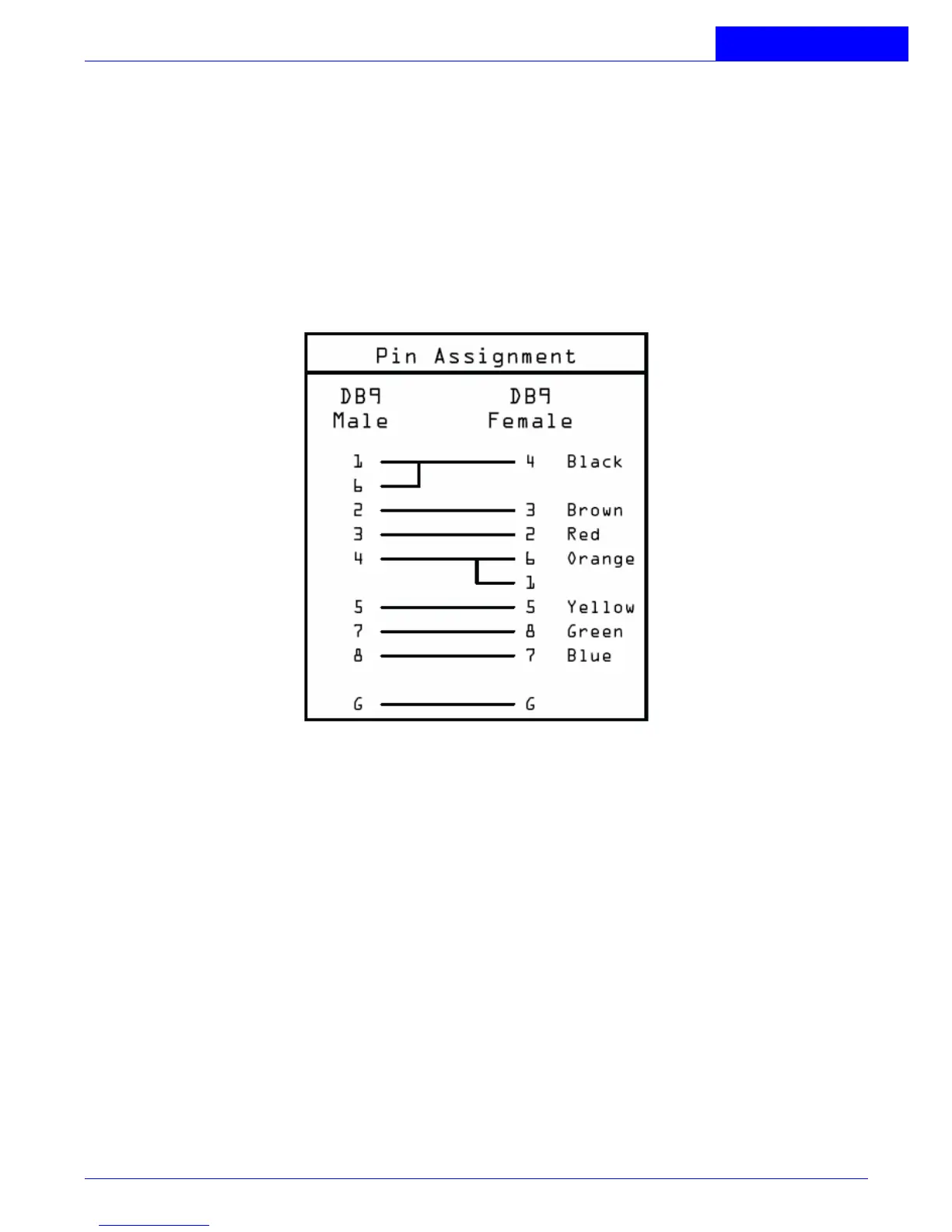

Figure A-1:
Pin Assignment for null modem cable for connecting to the serial console port
