POWER SUPPLY LED
2
Twistable Cord Retainer Installation (removable power supplies):

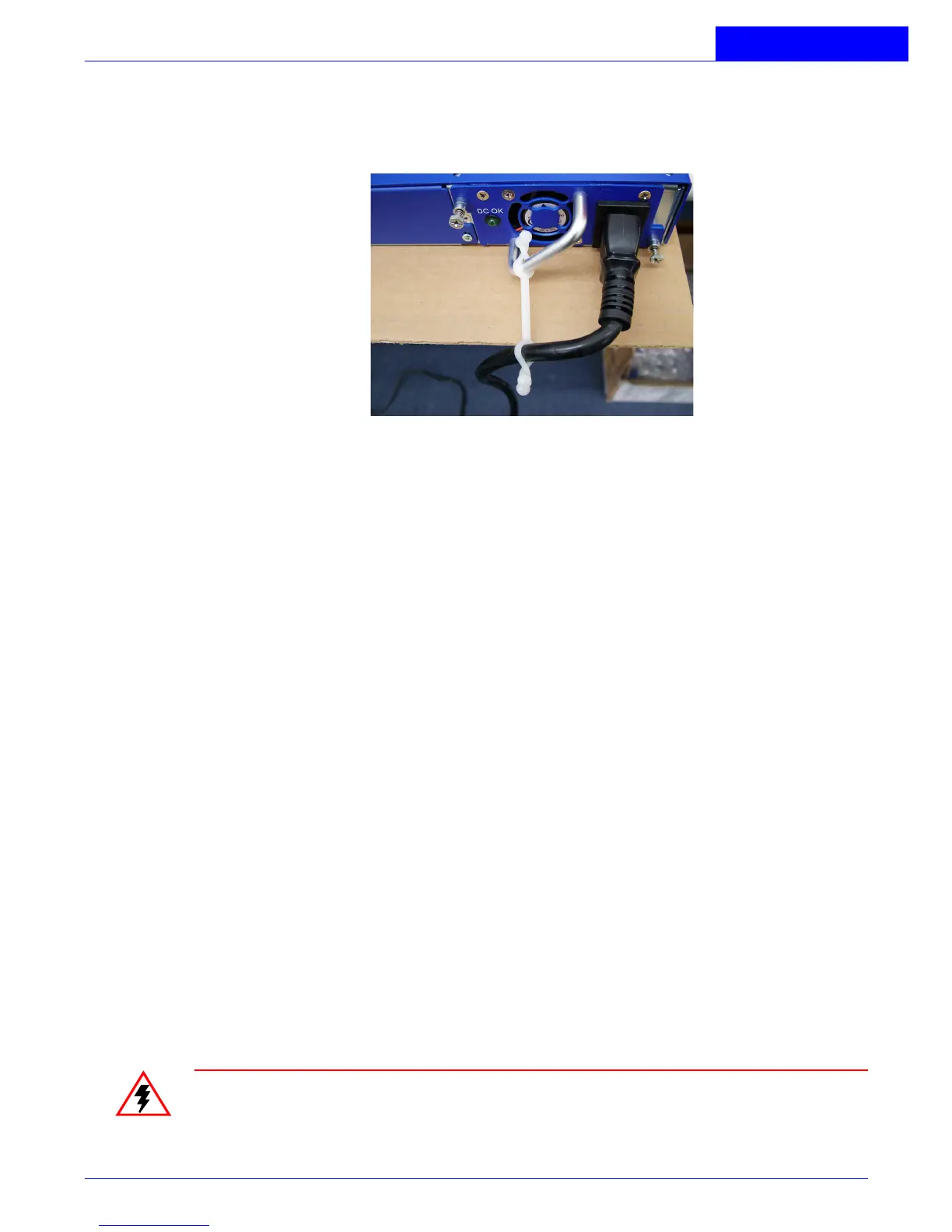

Figure 2-5:
Twistable Cord Retainer Installation
1.
Twist one end of the retainer around the handle of the power supply (see
Figure
2-5
).
2.
Plug the power cord firmly into the device's power receptacle.
3.
Twist the other end of the clip around the power cord as shown in
Figure 2-5
.
4.
The power cord may now be plugged into a power source.
Power Supply LED
Each power supply provides one green LED to indicate the status of the power supply. The LED
will be on when the power supply is on and receiving source power. If the source power exceeds
or drops below allowable tolerances, the LED turns off and an SNMP alarm is generated.
Power Supply Fan
Each power supply includes a built-in fan to ensure adequate cooling of the power supply. If the
fan should fail, replace the power supply immediately. Keep the fans clear of obstructions in
order to maintain adequate cooling.
Installing an AC Power Supply
WARNING:
To prevent ESD damage to electronic components, always use an ESD
wrist strap when handling modules or coming into contact with internal
components of the SDS/SCS.
