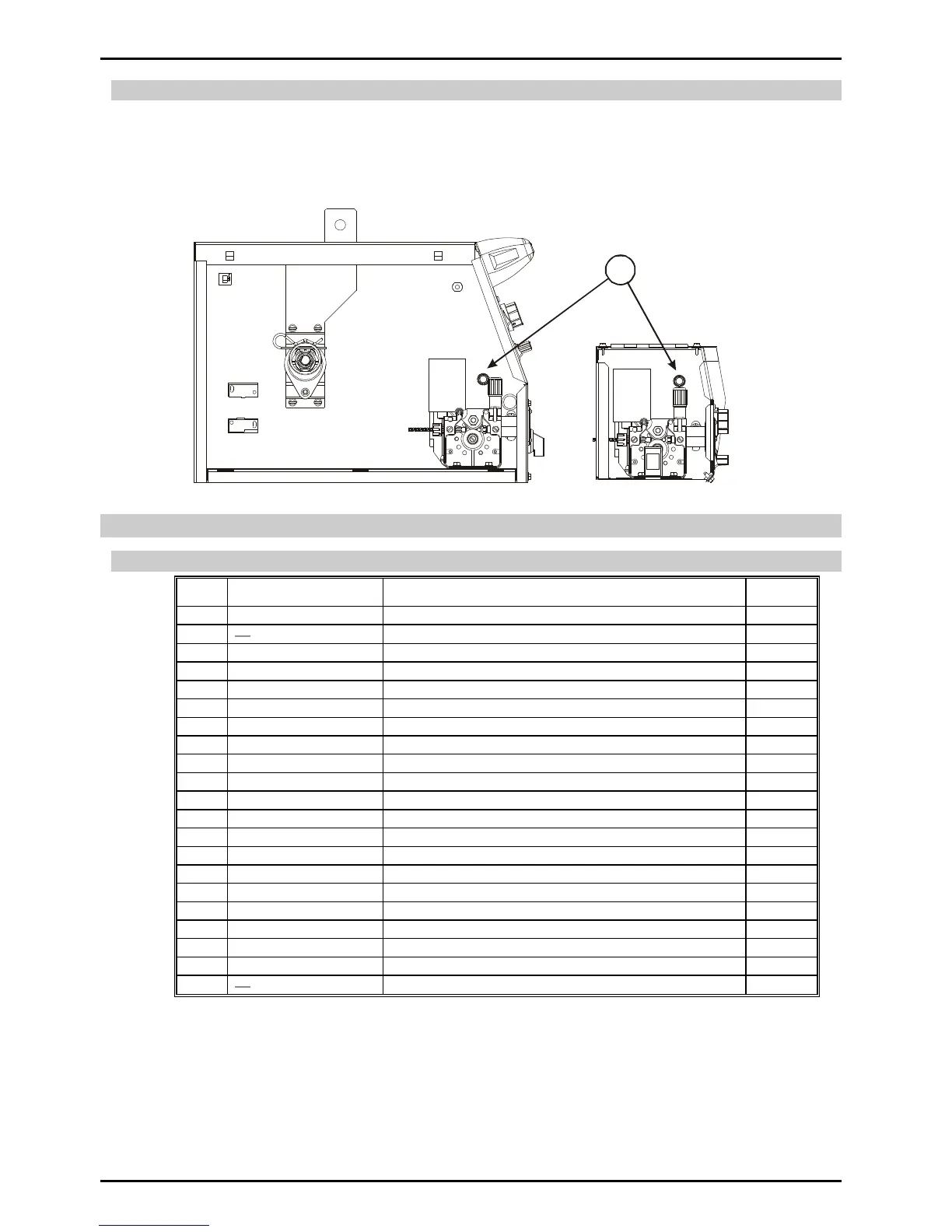

10.13 Burnback
Burnback time is the difference between the wirefeed motor stopping and switching off of the welding current. The Burnback time allows
the electrode wire to burn out of the molten metal weld pool. The Burnback time is factory set for optimum performance.
Clockwise adjustment increases Burnback time.
The Burnback adjustment is located within the wiredrive compartment of the power source for TRANSMIG 225 and TRANSMIG 255
Compact, and is located within the wiredrive compartment of the wirefeeder for TRANSMIG 255 Remote (255 2R wirefeeder).
SECTION 11: 250A TWECO MIG Torch OTWX212/3035 (where supplied)
11.01 MIG Torch Components
Item
Part No.
Description
Qty
1
OTW22
Nozzle
1
2
Contact tip (refer to Table 8)
1
3
OTW52
Gas diffuser
1
4
OTW32
Insulator
1
5
OTW64A/45
Conductor Tube
1
6
OTW102
Power Connector
1
7
OTW83
Handle Kit
1
8
OTW92
Trigger Assembly
1
9
OTW152
Gun Hanger
1
10
OTW142/6
Front Cable Support
1
11
OTW132/12
Front Cable Clamp
1
19
OTW134/14
Front Cable Clamp
1
20
OTW350R23010
Rear Support
1
21
OTW174X/2
Connector Nut
1
22
OTW174EX/1C
Conduit Cap
1
23
OTW174EX/1G
O-Ring
1
24
OTW4M/S
Screw
1
25
OTW174EX/1
Rear Connector
1
26
OTW174X/M
Power Connection
1
27
OTWX6RC
Rear Case
1
28
Conduit (refer to Table 9)
1
Table 7 – MIG Torch Components
