13
Four steps to start

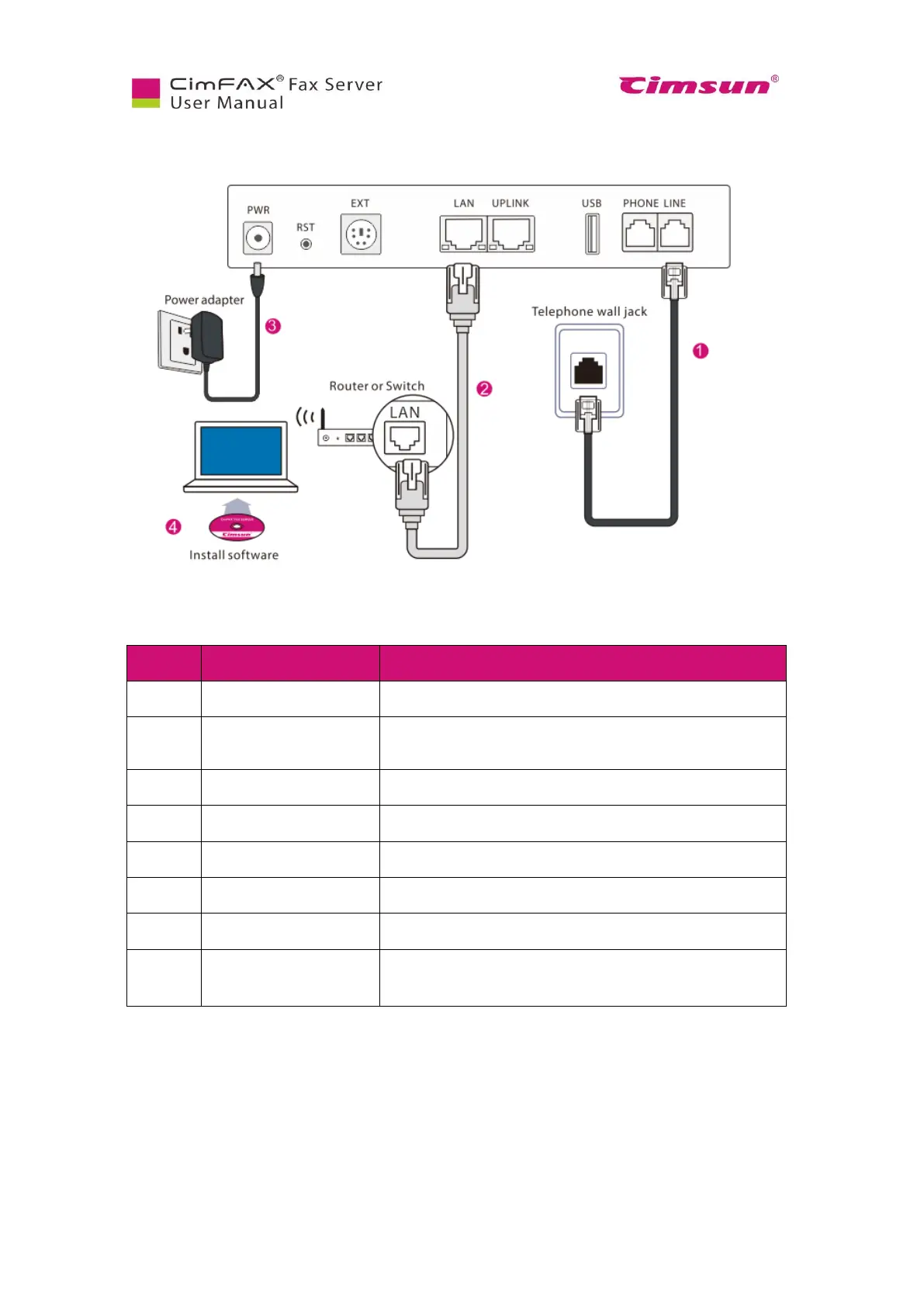

Fig 2.2 4-step cable connection
Port
Item
Description
PWR
Power in
Connects to a power adapter.
RST
Reset button
Restores settings to factory default. Details refer to “5.8 Restore
Factory Settings”.
EXT
External function
Reserved.
LAN
Ethernet (RJ-45)
Connects to an Ethernet 10/100M based network.
UPLINK
Ethernet (RJ-45)
Connects to another network device.
USB
USB (Master)
Reserved.
LINE
Telephone line (RJ-11)
Connects to a telephone line.
PHONE
Telephone device (RJ-11)
Connects to a telephone or fax machine. Details refer to “8.2 Manual
Answer”
Fig 2.3 Rear panel
