2.2 Setting up CimFAX Fax Servers
2.2.1 Standard Edition A5/B5/C5/C5S

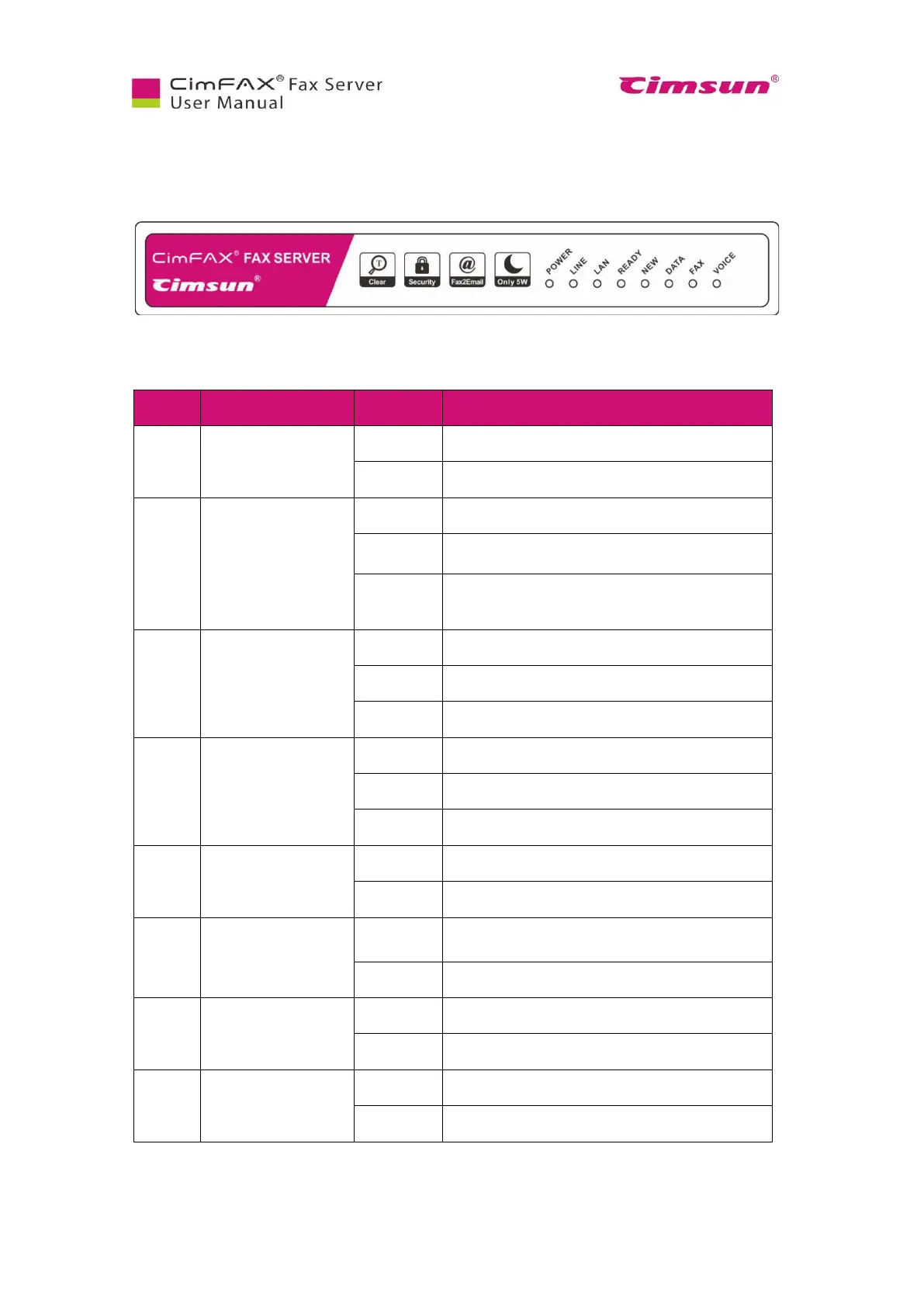

Fig 2.1 Standard Edition front panel
LED
Item
Status
Description
PWR
Power state
On
Power on.
Off
Power failure.
LINE
Telephone
Line status
On
The port is connected to a telephone line.
Flash
The port is connected to a telephone line.
Off
The port is not connected to a telephone line, or in
off-hook status.
LAN
Network status
On
The port is connected to network.
Off
The port is not connected to network.
Flash
Sending or receiving network data packets.
READY
Server status
On
Server is running.
Flash
Server is initiating.
Off
Server failure.
NEW
New fax notification
Off
No notification.
Flash
Notifies you have new fax(es).
DATA
Storage status
On/Flash
The storage is reading or writing data. Power off at
this time may cause data loss.
Off
The storage is idle.
FAX
Fax status
On
Server is receiving or sending fax.
Off
Server is not in fax mode.
VOICE
Voice Status
On
Server is playing voice.
Off
Server is not in voice mode.
