Chapter 7 Building the Second Row Table Assembly
Parts List
Figure 7-12 Foam Bumper Assembly
Step 13 Insert the second row PDUs in the lower cable gutters.
Note You install the remaining PDUs and route the cables in Chapter 9, “Routing Power and Signal
Cables.”

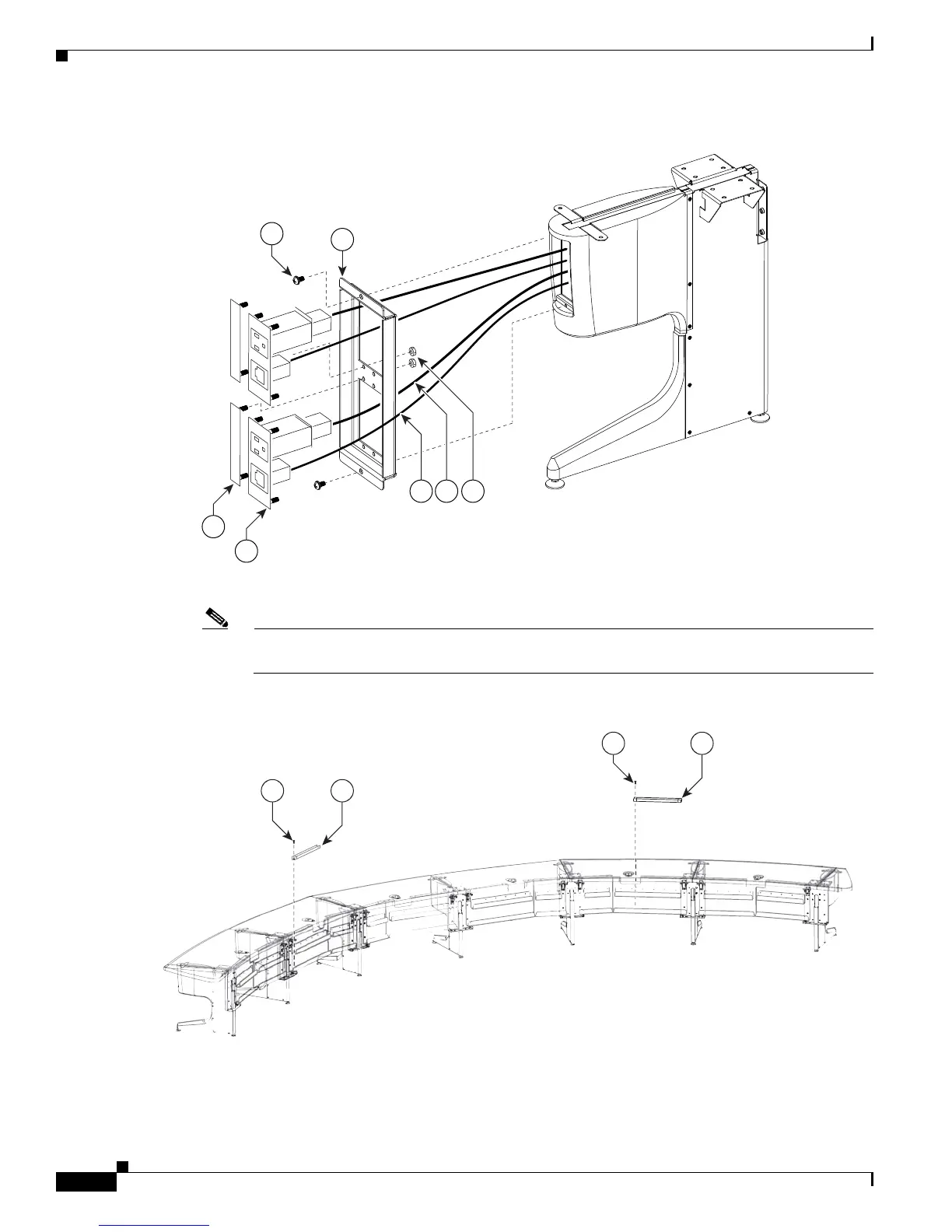

Figure 7-13 Second Row PDUs
Step 14 Attach the first set of floating brackets to the table assembly.
204175
46
45
44
50
47 48 49
55
55 54
54
204171
