Chapter 7 Building the Second Row Table Assembly
Parts List
• Insert four wooden biscuits in the slot between the two table sections and join the sections together,
then insert and tighten the draw bolts evenly on each side until the tabletop sections are joined.

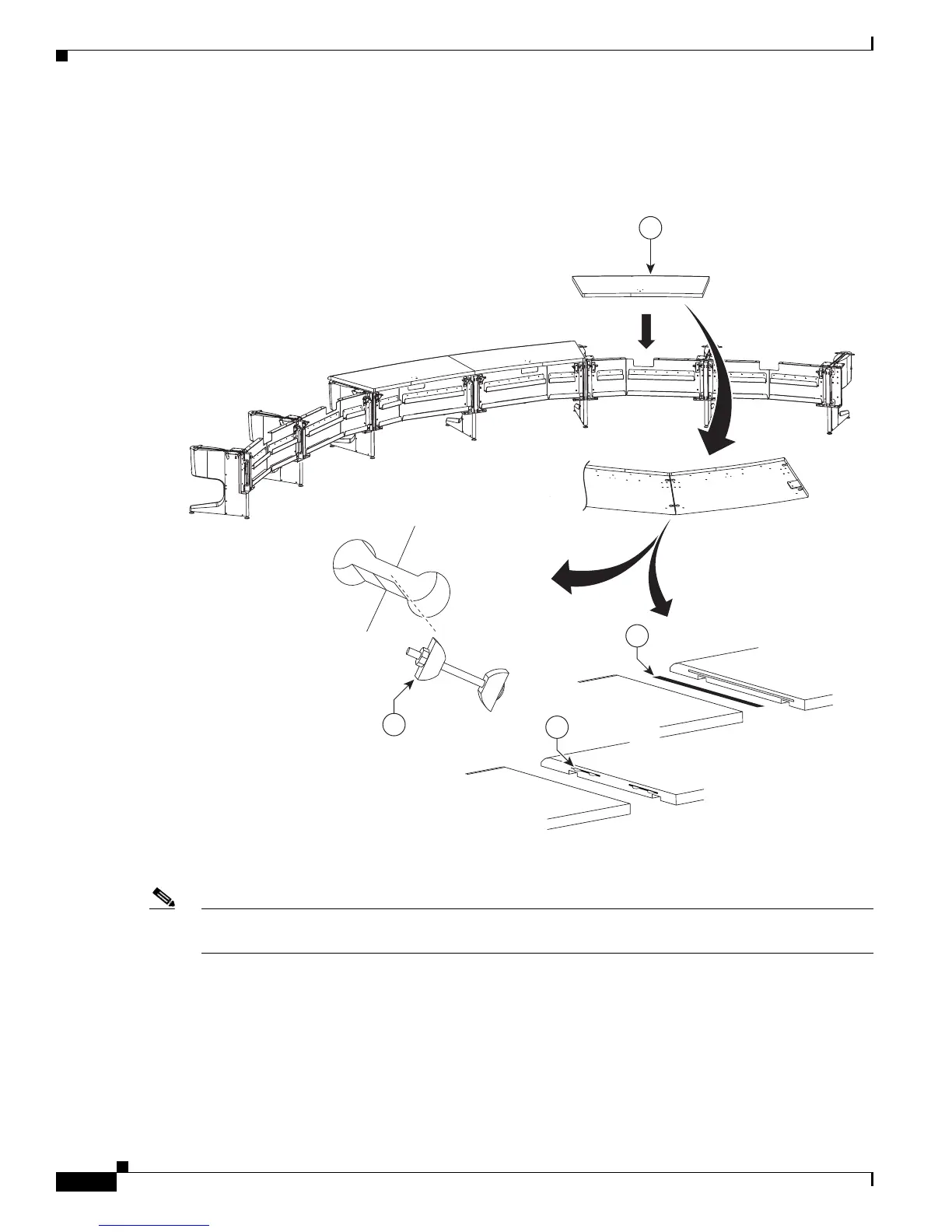

Figure 7-18 Tabletop Section 3 (Section 6)
Step 19 Place table section 4 (section 3) on the table and join it to table section 2 (section 4) using either the
spline or biscuits, then use the draw bolts to join the sections.
Note If you are building a Reduced Configuration table (four tabletops instead of six), continue to Step 22
after completing this step.
