Cisco 700 series Configuration Guide

Routing IP to a Central Site
Cisco 700 Series Router Configuration Guide
3-12

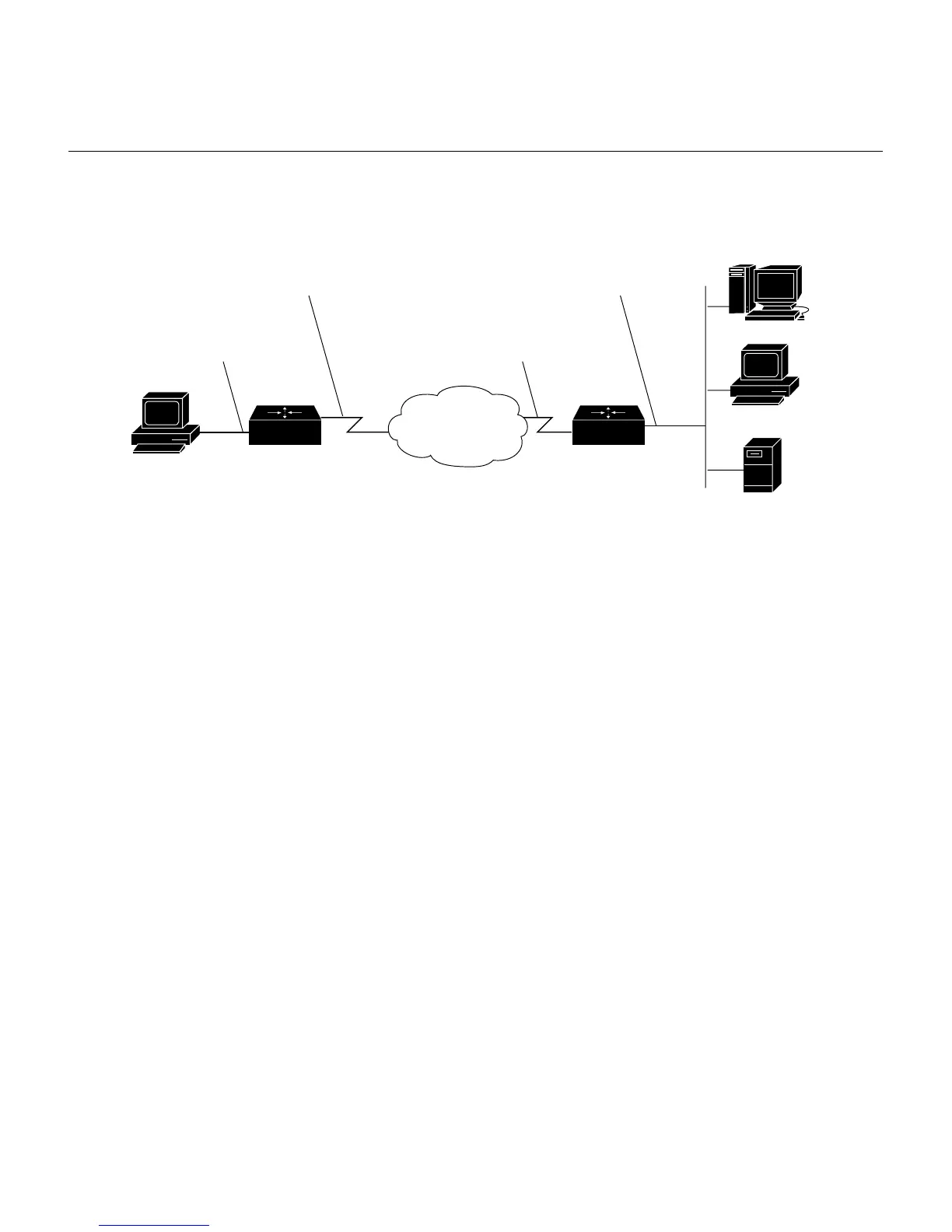

Figure 3-3 Routing IP to a Central Site—Example Configuration
In this example, the Cisco 765 router named remote765 is used to establish a connection
through the ISDN service provider to the corporate network at a central site.
Cisco765
Ethernet interface
IP address: 172.16.17.9
IP subnet mask: 255.255.255.0
Remote router
System name: remote765
ISDN number: 5553693/4
User profile name: central765
Central site router
System name: central765
ISDN number: 5550143/4
User profile name: remote765
Ethernet interface
IP address: 172.15.1.100
IP subnet mask: 255.255.255.0
ISDN interface
IP address: 10.48.125.7
IP subnet mask: 255.255.255.0
S4802
ISDN
network
ISDN interface
IP address: 10.48.125.4
IP subnet mask: 255.255.255.0
