Cisco 700 series Configuration Guide

SPID Detection (North America only)
Cisco700 Series Router Configuration Guide
4-2
SPID Detection (North America only)
In North America, SPIDs can be automatically detected or manually configured. For more
information on SPID detection, see "Setting SPID Autodetection (North America only)"
and "Setting SPIDs Manually (North America only)" in the "Basic Configurations" chapter.
IP Static Routing and Callback with CHAP Authentication
This section describes how to configure the routers for Internet Protocol (IP) static routing
and callback with Challenge Handshake Authentication Protocol (CHAP).
Figure 4-1 illustrates the configuration used in this example.

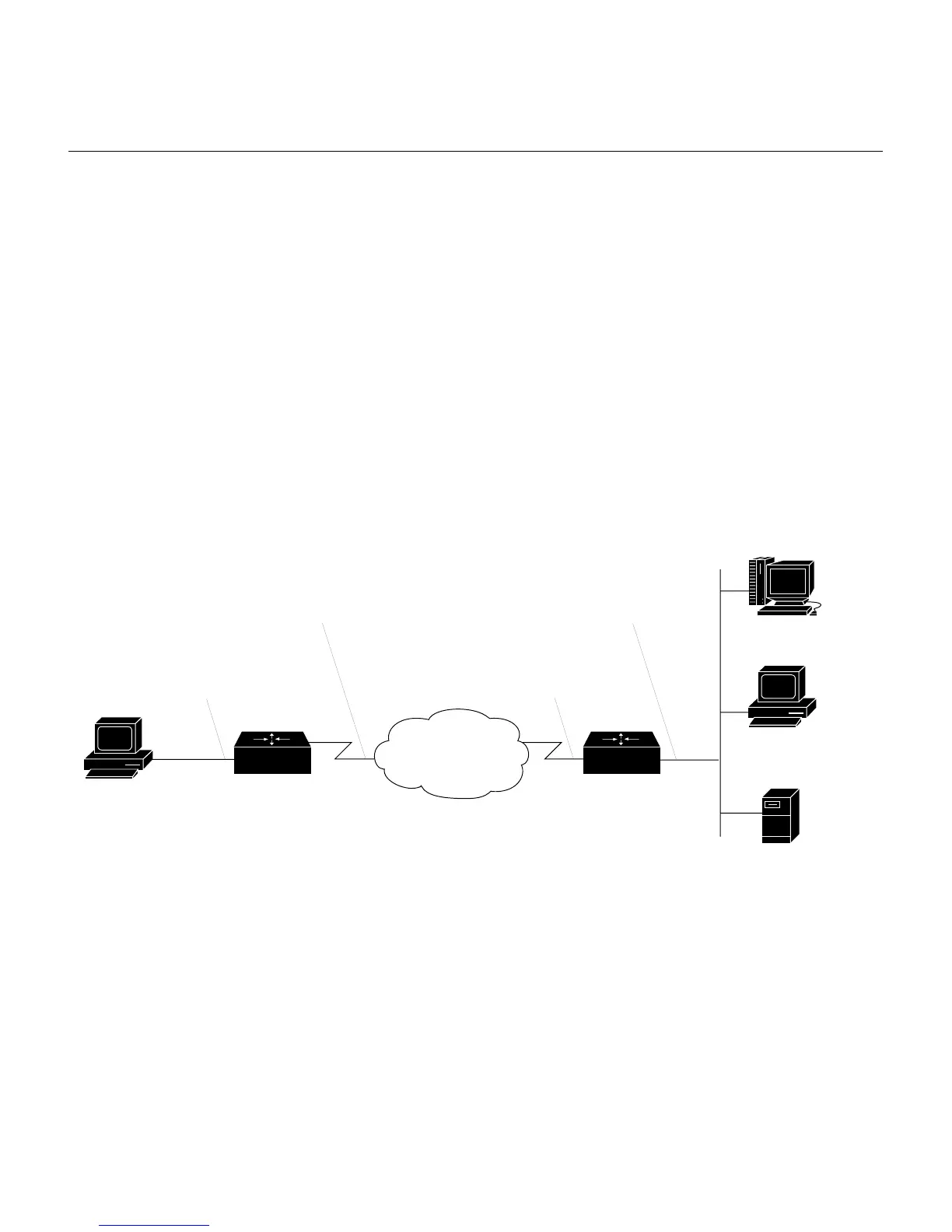

Figure 4-1 IP Static Routing and Callback with CHAP Authentication
Ethernet interface
IP address: 172.18.124.2
IP subnet mask: 255.255.255.0
Serial interface
IP address: 172.16.125.1
IP subnet mask: 255.255.255.0
Serial interface
IP address: 172.16.125.7
IP subnet mask: 255.255.255.0
Ethernet interface
IP address: 192.168.147.9
IP subnet mask: 255.255.255.248
Telecommuter PC
IP address:
192.168.147.8
Remote router
ISDN number: 5553693
User profile name: 4500
Central site router
ISDN number: 5558011
Host name: 4500
Central site network
IP network: 172.18.124.0
765 CPA4500
S4768
ISDN
