IP Static Routing with CHAP Authentication and MLP
Cisco700 Series Router Configuration Guide
4-4
IP Static Routing with CHAP Authentication and MLP
This section describes how to configure the central site Cisco 4500 series router and the
remote Cisco 765 series router for IP static routing with Challenge Handshake
Authentication Protocol (CHAP) and Multilink Protocol (MLP).
Figure 4-2 is an illustration of the configuration used in this example.

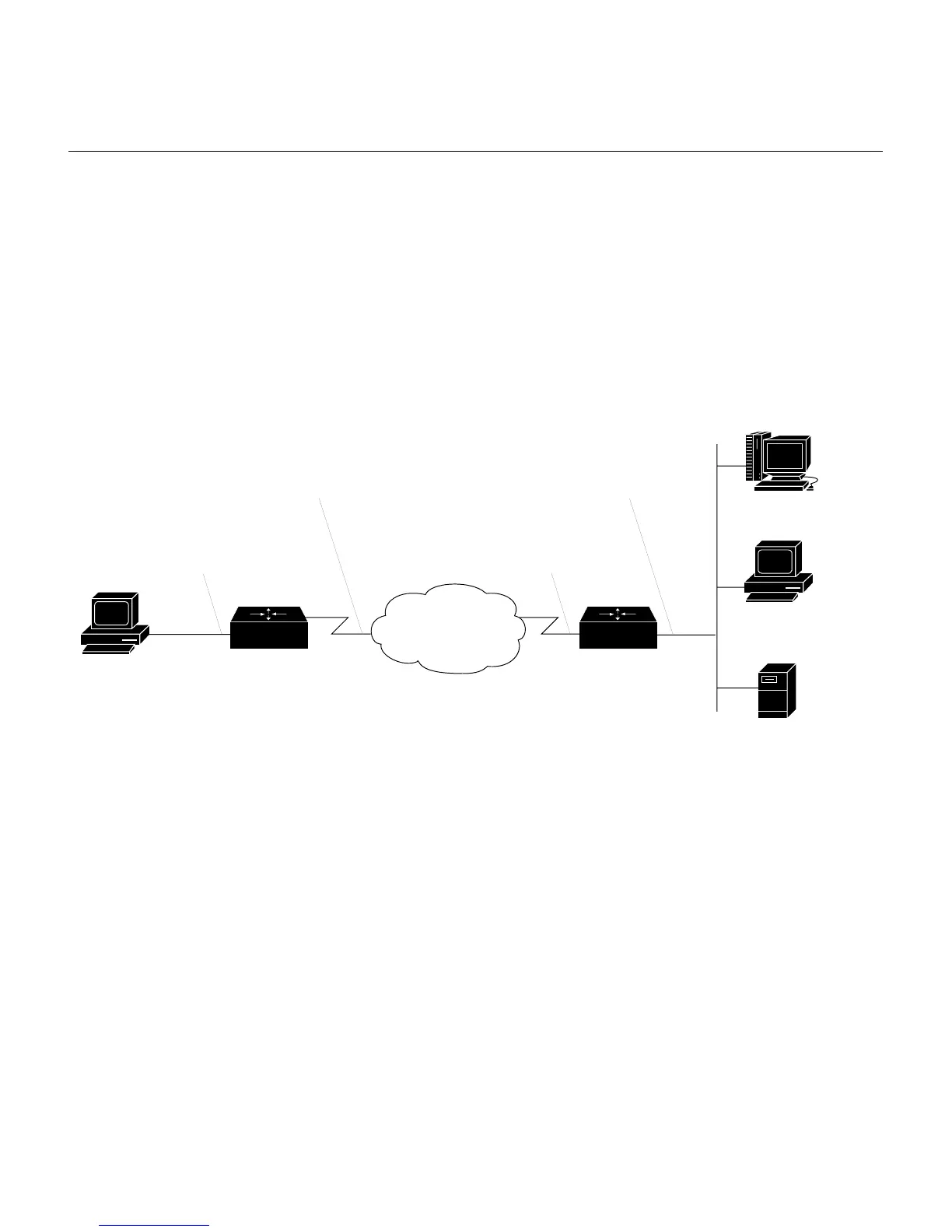

Figure 4-2 IP Static Routing with CHAP Authentication and MLP
Ethernet interface
IP address: 172.18.124.2
IP subnet mask: 255.255.255.0
Serial interface
IP address: 172.16.125.1
IP subnet mask: 255.255.255.0
Serial interface
IP address: 172.16.125.7
IP subnet mask: 255.255.255.0
Ethernet interface
IP address: 192.168.147.9
IP subnet mask: 255.255.255.248
T
elecommuter PC
IP address:
192.168.147.8
Remote router
ISDN number: 5553693
User profile name: 4500
Central site router
ISDN number: 5558011
Host name: 4500
Central site network
IP network: 172.18.124.0
765 CPA4500
S4768
ISDN
