Configuring DHCP Relay, DHCP Server, and PAT 5-5
PPP IPCP Negotiation Example
PPP IPCP Negotiation Example
This section describes how to configure a remote Cisco 700 series router for PPP IPCP
negotiation to a central site router, such as a Cisco 4500 series router, that is running Cisco
IOS software.
Figure 5-1 is an illustration of the configuration used in this example.

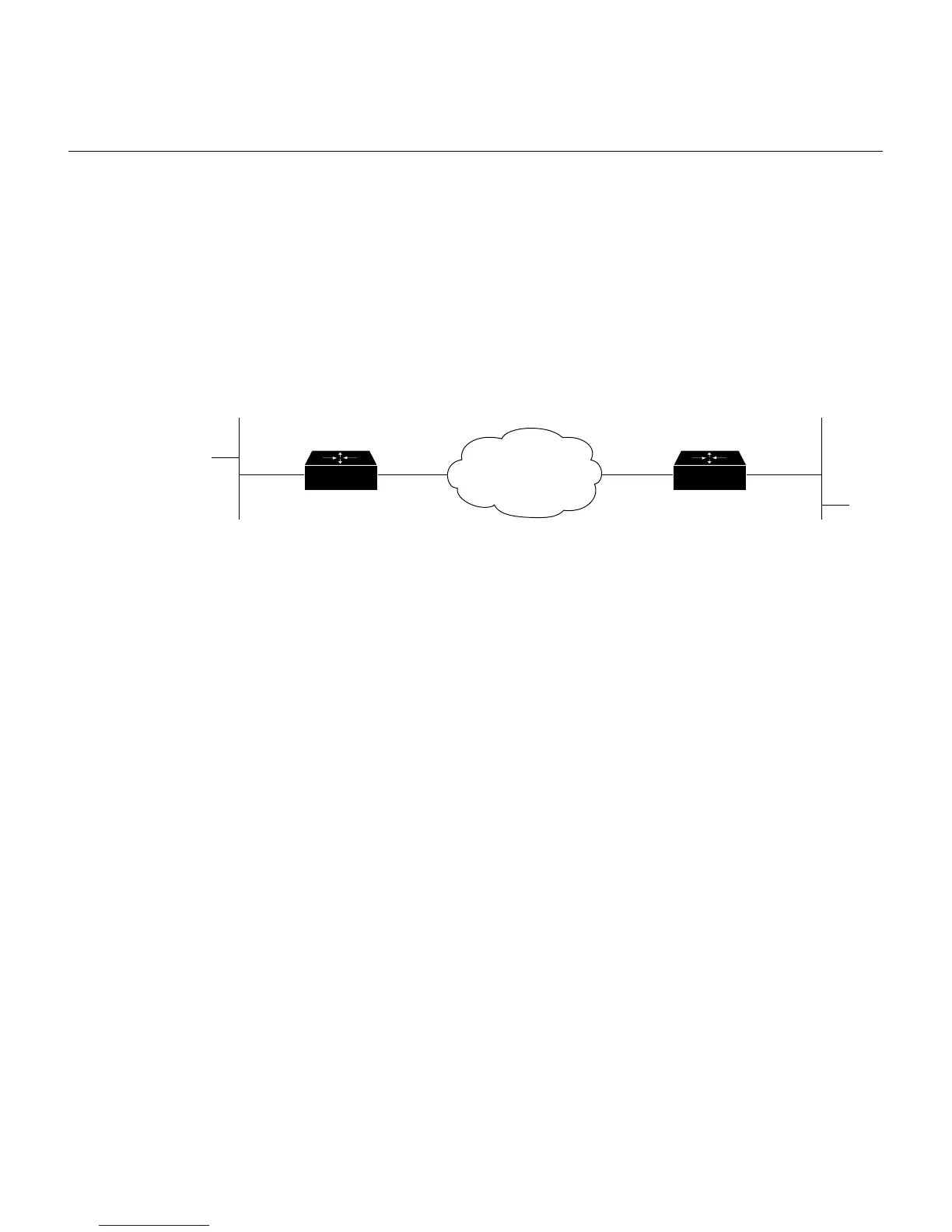

Figure 5-1 PPP IPCP Negotiation
Cisco 765 Series Router Commands
Following are the commands for configuring the remote Cisco 765 series router for
point-to-point IPCP negotiation with a Cisco 4500 router:
set switch 5ess
set
1 dir directory_number
set 2 dir directory_number
set system 765
set user 4500
set ppp secret client
set ppp password client
set active
set 1 number
phone_number
set 2 number
phone_number
set ip routing on
set ip route destination
0.0.0.0/0 gateway 0.0.0.0
set ip rip version 2
set ip rip receive v2
set ip rip update linkup
reboot
For detailed information regarding the commands listed here, refer to the Cisco 700 Series
Router Command Reference.
ISDN network
Cisco 765 Cisco 4500
H9230
