Cisco 700 series Configuration Guide

DHCP Relay with IPCP Negotiation Example
Cisco700 Series Router Configuration Guide
5-6
Verify the Configuration
You can use the show ip configuration all and show ip route all commands to see the IPCP
negotiation address.
DHCP Relay with IPCP Negotiation Example
This section describes how to configure a remote Cisco 700 series router for DHCP relay
with IPCP negotiation to a central-site router running Cisco IOS software.

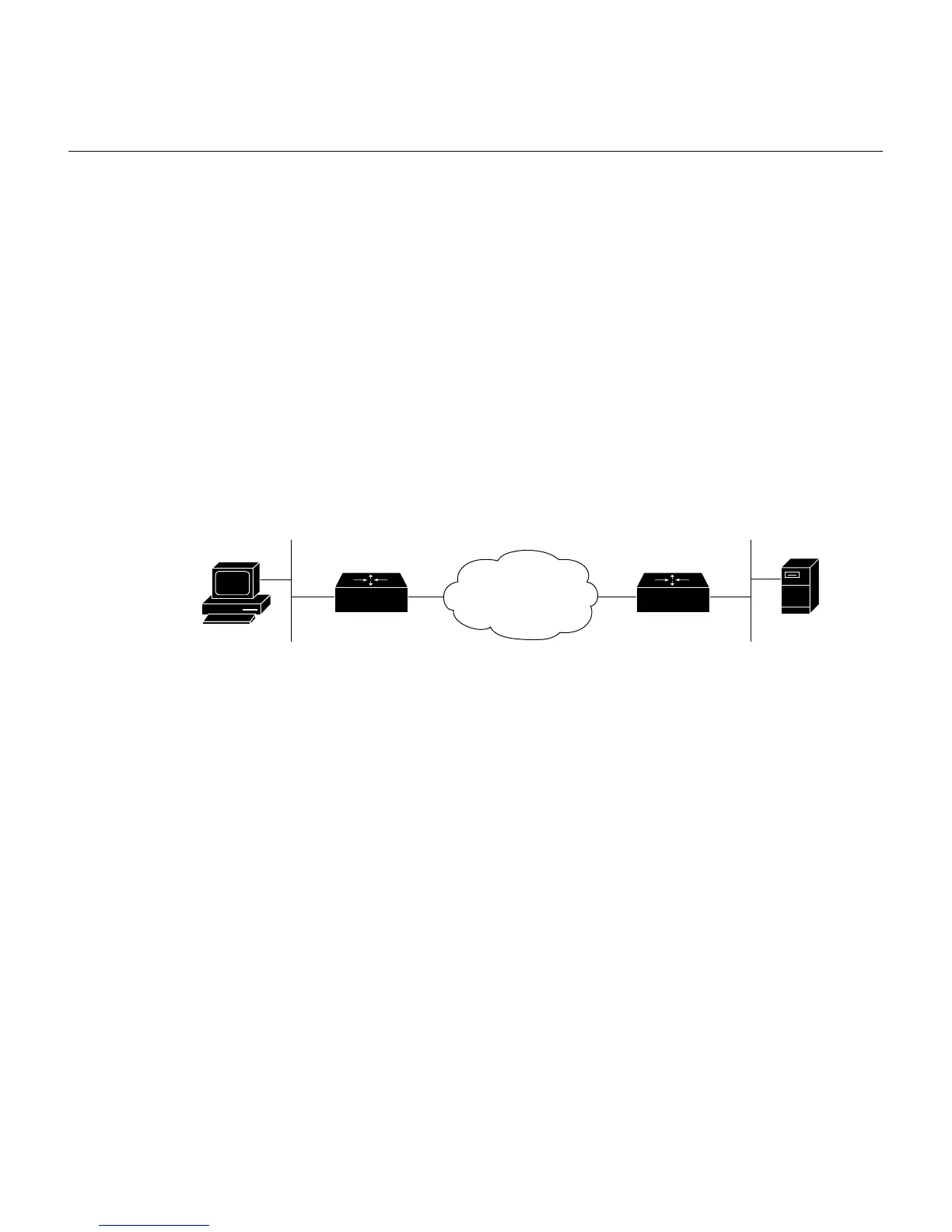

Figure 5-2 is an illustration of the configuration used in this example.
Figure 5-2 DHCP Relay with IPCP Negotiation
Cisco 765 Series Router Commands
Following are the commands for configuring the remote Cisco 765 series router for DHCP
Relay with IPCP Negotiation with a Cisco 4500 router:
set system 765
set dhcp relay 172.168.100.2
set user 4500
set 1 number phone_number
set 2 number
phone_number
set ip routing on
set ip rip version 2
set ip rip receive v2
set ip rip update linkup
reboot
For detailed information regarding the commands listed here, refer to the Cisco 700 Series
Router Command Reference.
ISDN network
Cisco 765
DHCP relay agent
DHCP
client
DHCP
server
172.168.100.2Cisco 4500
H9231
