PAT with IPCP Single-Destination Negotiation Example
PAT with IPCP Single-Destination Negotiation Example
This section describes how to configure a remote Cisco 700 series router for PAT with IPCP
single-destination negotiation to a central-site router running Cisco IOS software.
Figure 5-4 is an illustration of the configuration used in this example.

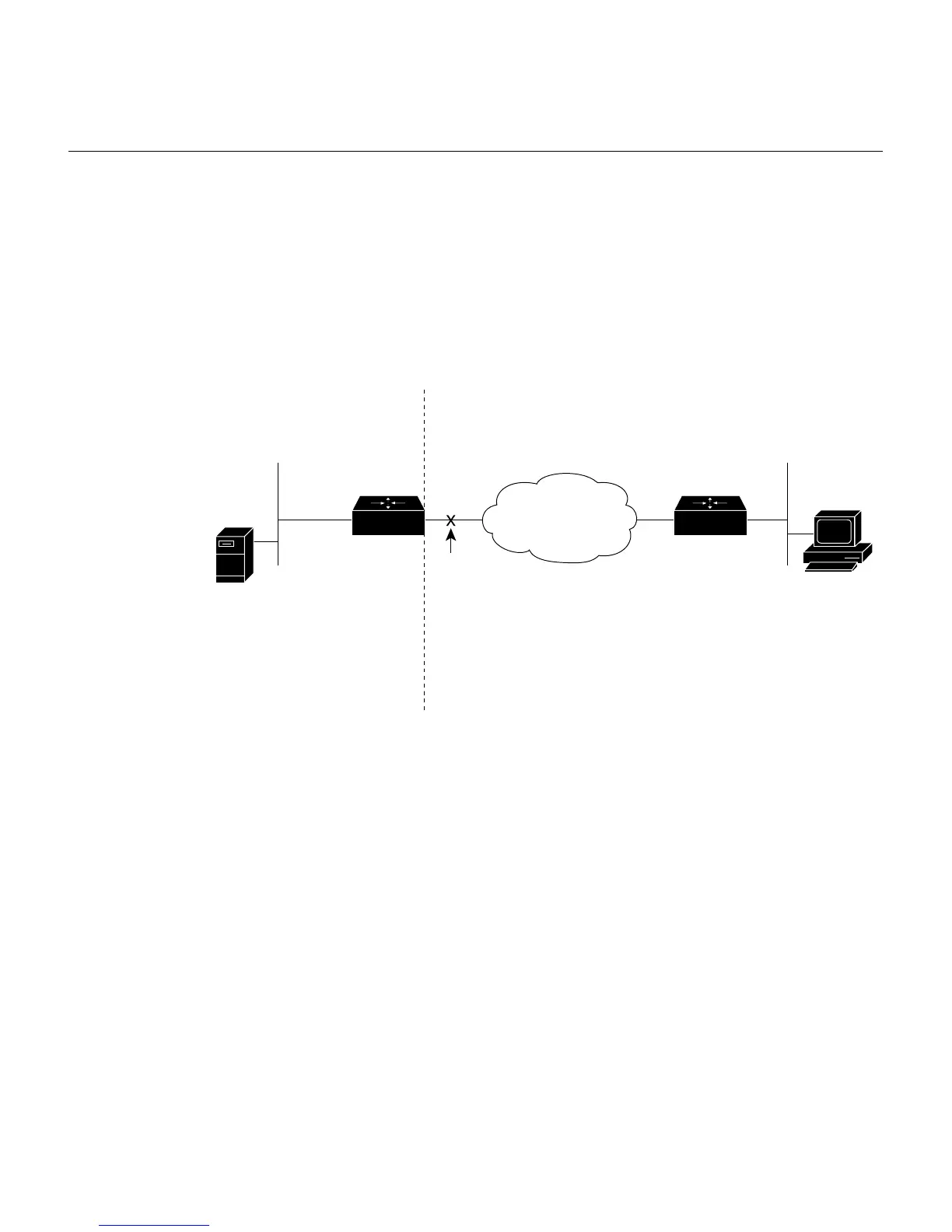

Figure 5-4 PAT with IPCP Single-Destination Negotiation
ISDN network
Cisco 765
PAT on
IPCP negotiated
address assigned
Private
network
Public
network
Internal
profile
FTP
server
10.0.0.2
A
10.0.0.1
Cisco 4500
H9233
