Cisco 700 series Configuration Guide

Basic Configurations 3-15

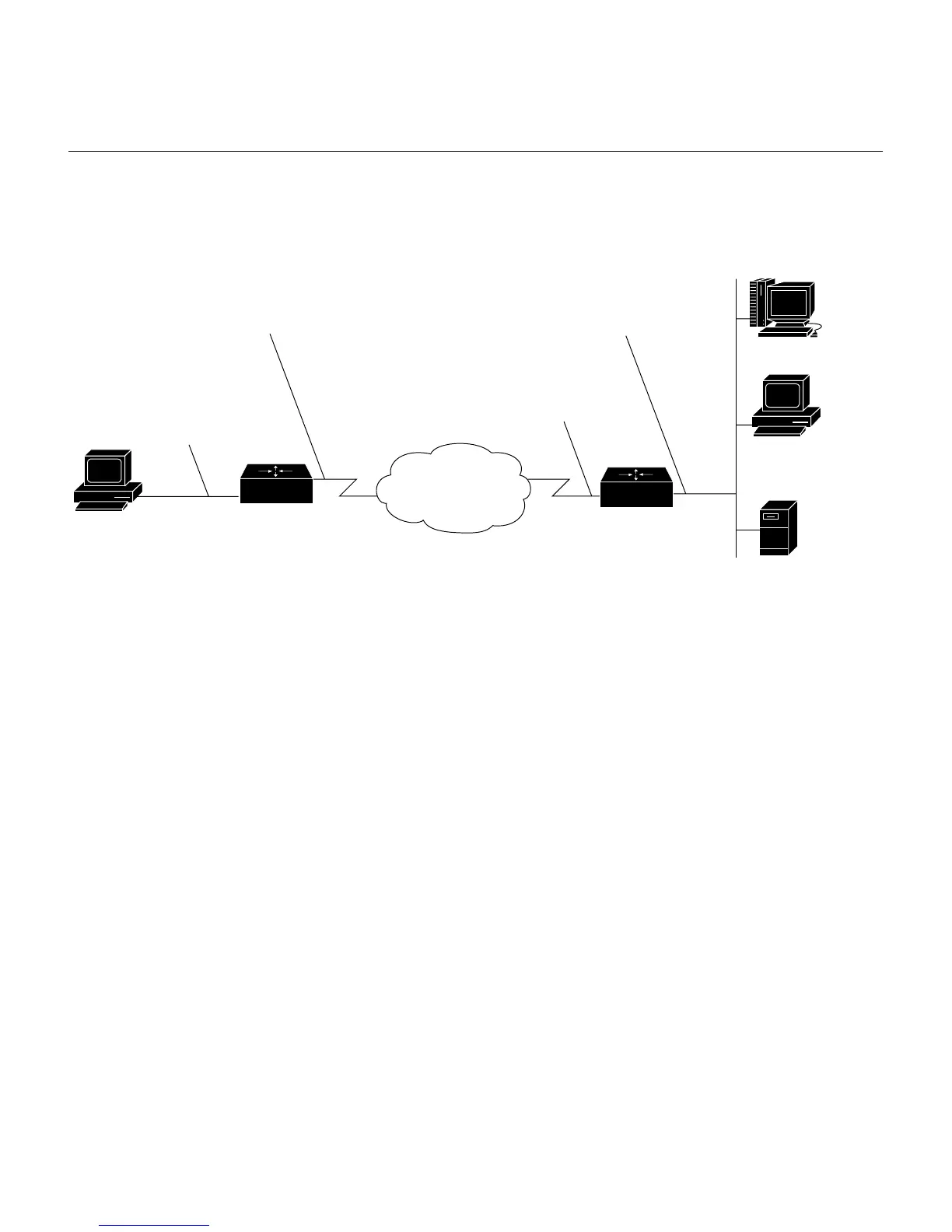

Figure 3-4 Routing IP and IPX On-Demand—Example Configuration
The remote Cisco 765 router is used to establish a connection through the ISDN service
provider to the corporate network at a central site using PPP. The remote Cisco 765 router
has three permanent profiles: LAN, Internal, and Standard. This example uses the LAN
profile and a user-defined profile.
ISDN network
S4800
765
Cisco765
Ethernet interface
IP address: 172.15.1.100
IP subnet mask: 255.255.255.0
IPX network: 73146
IPX framing 802.2
ISDN interface
IP address: 10.32.125.4
IP subnet mask: 255.255.255.0
IPX network: 32125
Central site router
System name: central765
ISDN number: 5550143/4
User profile name: remote765
Remote router
System name: remote765
ISDN number: 5553693/4
User profile name: central765
ISDN interface
IP address: 10.32.125.7
IP subnet mask: 255.255.255.0
IPX network: 32125
Ethernet interface
IP address: 172.16.17.9
IP subnet mask: 255.255.255.0
IPX network: 1478
IPX Framing 802.2
Cisco765
