Chapter 34 Configuring Local SPAN and RSPAN
Understanding How Local SPAN and RSPAN Work
Local SPAN Overview
Local SPAN supports source ports, source VLANs, and destination ports on the same Cisco 7600 series
router. Local SPAN copies traffic from one or more source ports in any VLAN or from one or more
VLANs to a destination port for analysis (see Figure 34-1). For example, as shown in Figure 34-1, all
traffic on Ethernet port 5 (the source port) is copied to Ethernet port 10. A network analyzer on Ethernet
port 10 receives all network traffic from Ethernet port 5 without being physically attached to Ethernet
port 5.

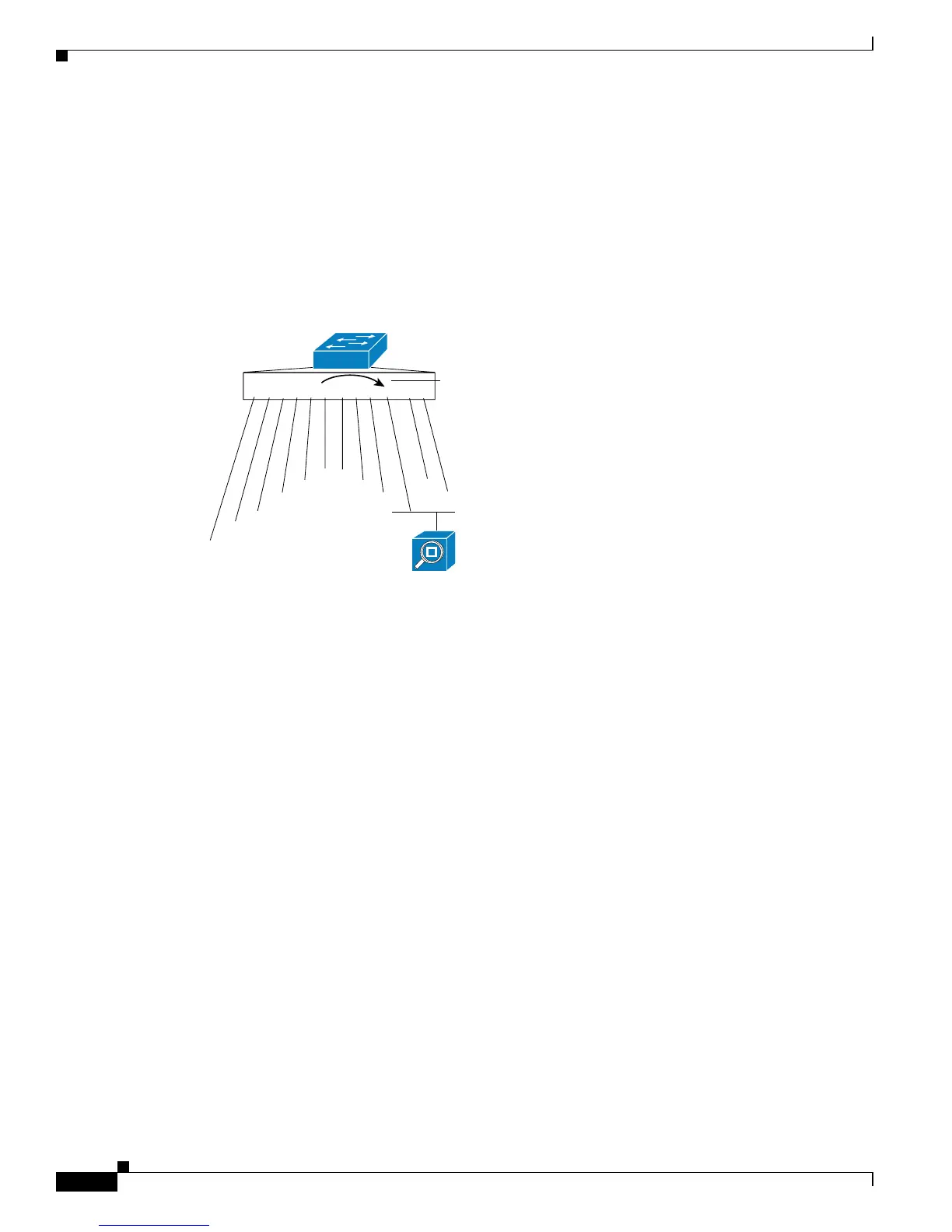

Figure 34-1 Example SPAN Configuration
1 2 3 4 5 6 7 8 9 10 11 12
Port 5 traffic mirrored
on port 10
E3
E2
E1
E4
E5
E6 E7
E8
E9
E11
E12
E10
Network analyzer
S6884

Cisco 7609 Specifications

General

Chassis Slots	9
Switch Fabric Capacity	720 Gbps
Power Supply Options	AC or DC
Product Type	Router
Form Factor	Rack-mountable
Supported Line Cards	Various Cisco 7600 Series line cards
Operating System	Cisco IOS
Management	CLI, SNMP
Forwarding Performance	400 Mpps
Maximum Power Consumption	4000 Watts
Redundancy	Yes
Interfaces/Ports	Various, depending on line cards installed
