Cisco 8800 Series Guide

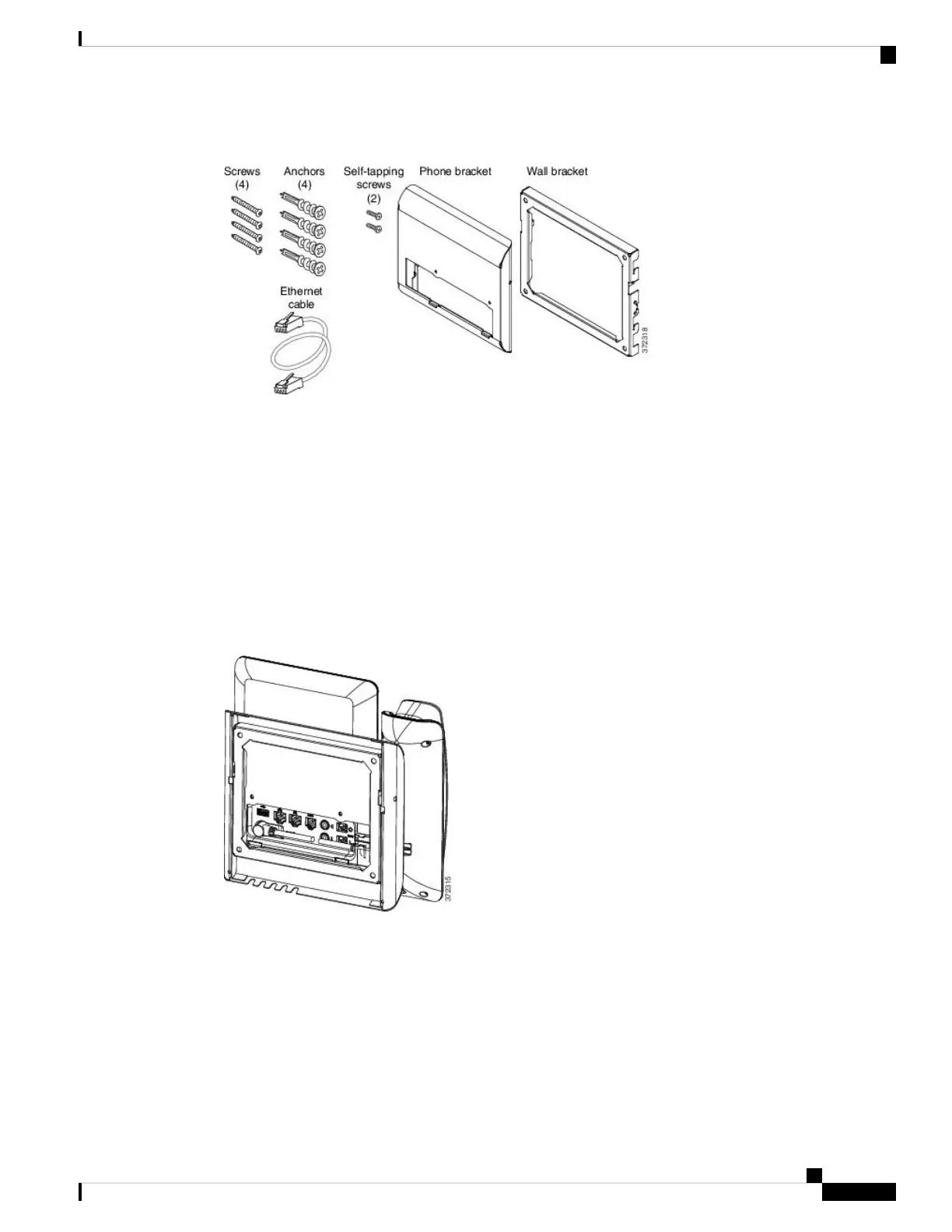

Figure 8: Components
The package contains the following items:
• One phone bracket
• One wall bracket
• Four #8-18 x 1.25-inch Phillips-head screws with four anchors
• Two K30x8mm self-tapping screws
• One 6-inch Ethernet cable
The following figure shows the wall mount kit installed on the phone.
Figure 9: Back view of Wall Mount Kit Installed on Phone
The following figure shows the phone with the wall mount kit from the side.
Cisco IP Phone 8800 Series Multiplatform Phone Administration Guide for Release 11.3(1) and Later
493
Cisco IP Phone Accessories
Cisco IP Phone Accessories

Cisco 8800 Series Specifications

General

Protocols	SIP, SCCP
Audio	Wideband audio
Connectivity	Gigabit Ethernet
Power	Power over Ethernet (PoE)
Bluetooth	Yes
USB	Yes
Codec Support	G.711, G.722, G.729, iLBC
Dimensions	Varies by model
Weight	Varies by model
Wi-Fi	Yes (varies by model)
