Install the Wireless Microphone Charging Cradle
You use the charging cradle to charge the wireless microphone battery.
Procedure
Step 1 Plug the charging cradle power adapter into an electrical outlet.
Step 2 Plug one end of the USB-C cable to the charging cradle and the other end into the power adapter.

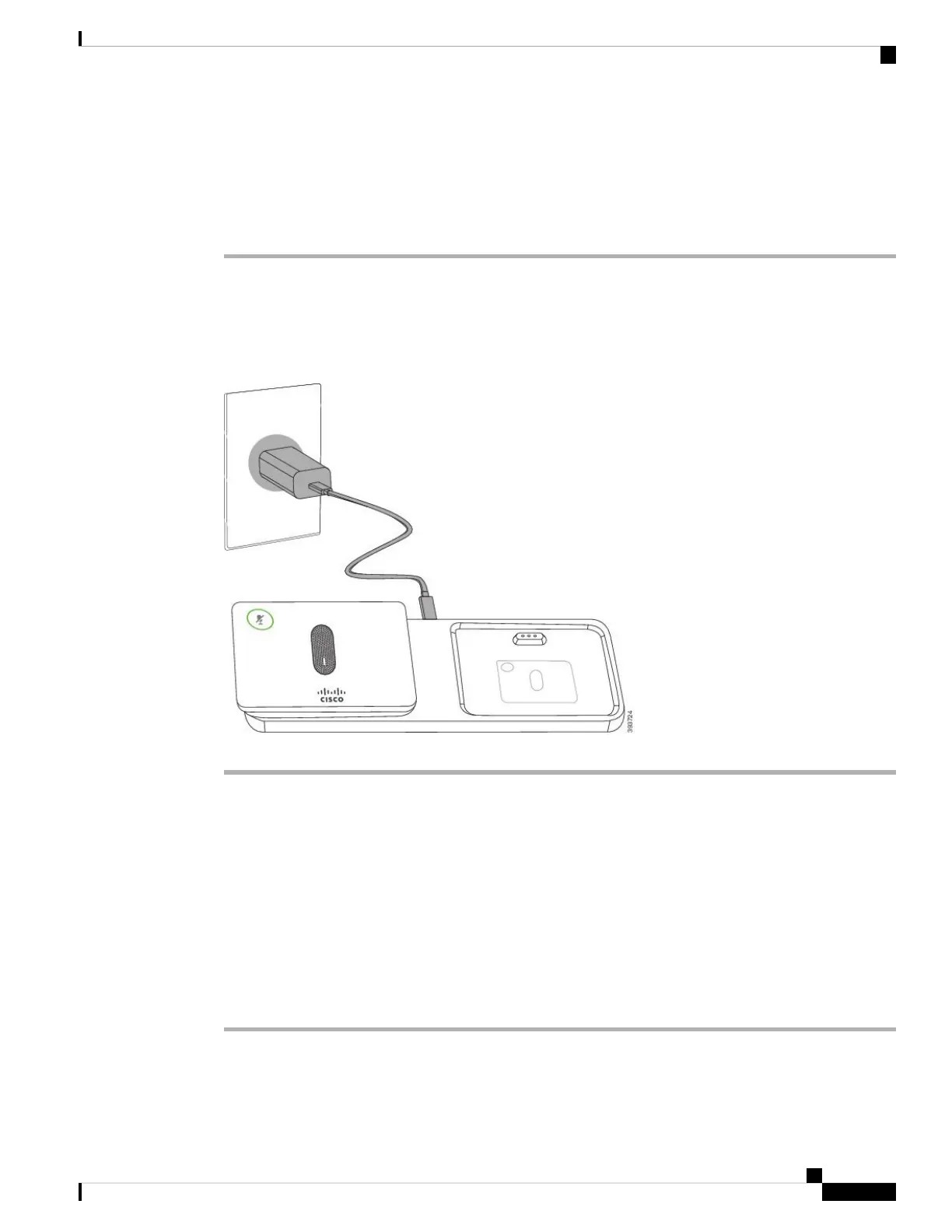

The following figure shows installation of a wireless microphone charging cradle.
Figure 5: Wireless Microphone Charging Cradle Installation
Related Topics
Wireless Expansion Microphone, on page 20
Charge a Wireless Microphone
Before you begin
Install the wireless microphone charging cradle. For more information, see Install the Wireless Microphone
Charging Cradle, on page 13.
Procedure
Step 1 Place the microphone in the charging cradle.
Cisco IP Conference Phone 8832 Multiplatform Phone User Guide
13
Your Phone
Install the Wireless Microphone Charging Cradle

Table of Contents

Other manuals for Cisco 8832

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco 8832 and is the answer not in the manual?

Cisco 8832 Specifications

General IconGeneral
Control typeButtons
Display typeLCD
Product typeIP conference phone
Voice codecsG.711a, G.711u, G.722, G.729A, G.729ab, OPUS, iLBC
CertificationCE Markings per directives 2014/30/EU and 2014/53/EU and 2014/35/EU \u2028 \u2028 UL 60950 Second Edition \u2028 CAN/CSA-C22.2 No. 60950 Second Edition \u2028 EN 60950 Second Edition (including A11 and A12) IEC 60950 Second Edition (including A11 and A12) EN 60950-1 IEC 60950-1 AS/NZS 60950.1 47CFR Part 15 (CFR 47) Class B AS/NZS CISPR32 Class B \u2028 CISPR32 \u2028Class B EN55032 \u2028 Class B EN 300 386 ICES003 Class B \u2028 VCCI Class B \u2028 EN61000-3-2 \u2028 EN61000-3-3 \u2028 EN61000-4-2 IEC61000-4-2 EN61000-4-3 IEC61000-4-3 EN61000-4-6 IEC61000-4-6 KN22 Class B \u2028 EN55024 \u2028 CISPR24 \u2028 KN24 Armadillo Light AS/ACIF S004 NZPTC220
Product colorCharcoal
Frequency range100 - 20000 Hz
Built-in displayYes
Display diagonal3.9 \
Languages supportARA, BUL, CAT, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HEB, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, TUR, UKR
Display resolution480 x 128 pixels
Security algorithmsEAP-FAST, EAP-TLS, SHA-256, SSH
Ethernet LAN data rates10, 100 Mbit/s
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4, IPv6, SIP, SDP, UDP, DHCP, GARP, TFTP, HTTPS, RTP, RTCP, Cisco Discovery Protocol, LLDP
Cables includedUSB
Storage temperature (T-T)-10 - 60 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)10 - 95 %
Operating relative humidity (H-H)10 - 90 %
USB connector typeUSB Type-C
RJ-45 ports quantity1
Weight and Dimensions IconWeight and Dimensions
Width278 mm
Height61 mm
Weight1850 g
