Chapter 2 Functional Description
Modular Line Cards

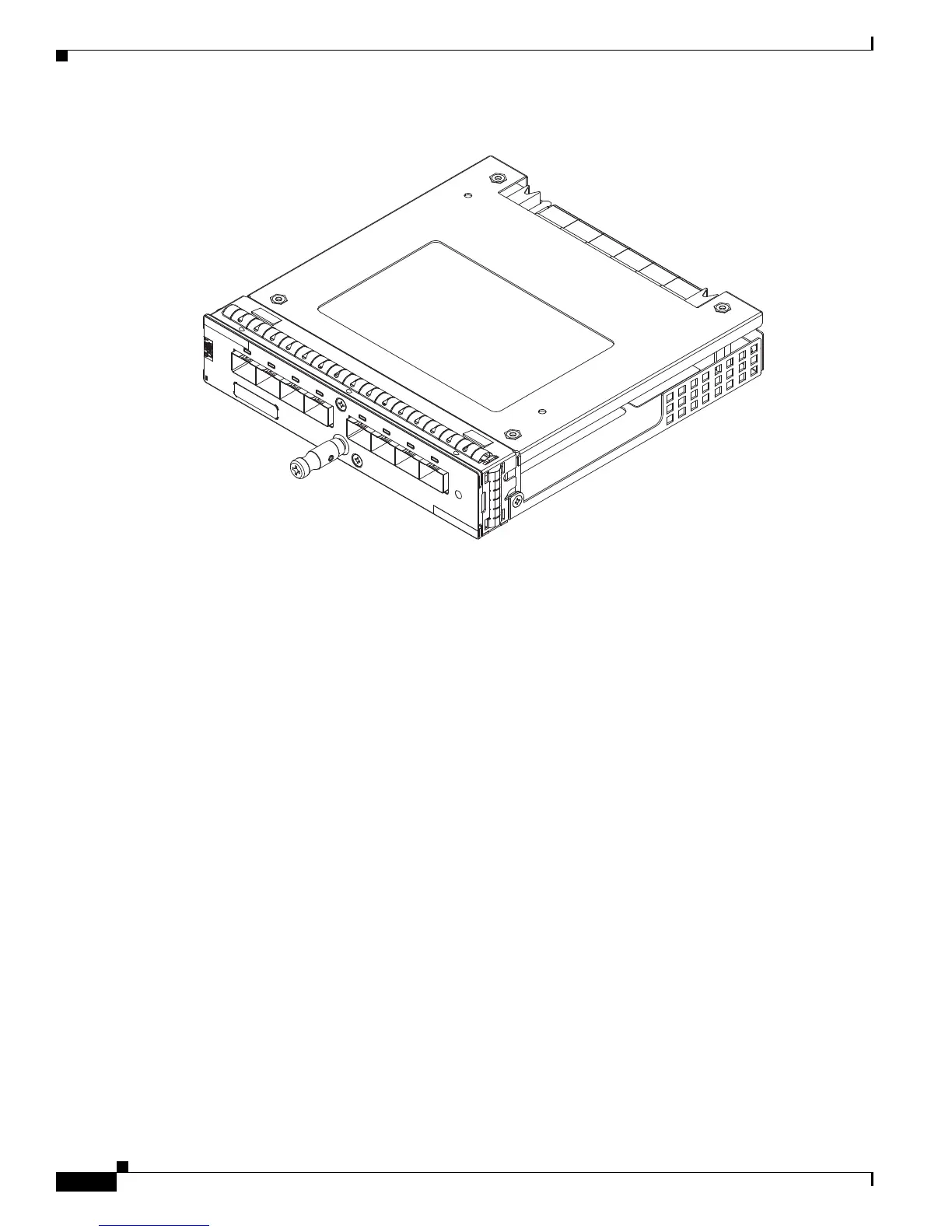

Figure 2-36 8-Port 10-Gigabit Ethernet MPA
4-Port 10-Gigabit Ethernet Modular Port Adapter
The 4-Port 10-Gigabit Ethernet MPA provides four cages for XFP Ethernet optical interface modules
that operate at a rate of 10-Gbps. The four XFP modules can be 10-Gigabit Ethernet multimode
connections.
Each XFP cage on the 4-Port 10-Gigabit Ethernet MPA has an adjacent A/L LED visible on the front
panel. The A/L LED indicates the status of the associated XFP port.
Figure 2-37 shows an example of the 4-Port 10-Gigabit Ethernet MPA.
303443
A9K-MP A-8X 10GE
A9K-MP A-8X 10GE
STATUS
A/L
A/L
A/L
A/L
A/L
A/L
A/L
A/L
4
5
6
7
0
1
2
3

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
