Cisco ASR 9010 Overview And Reference Guide

1-14
Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 1 Overview and Physical Description
Rack-Mounting Considerations

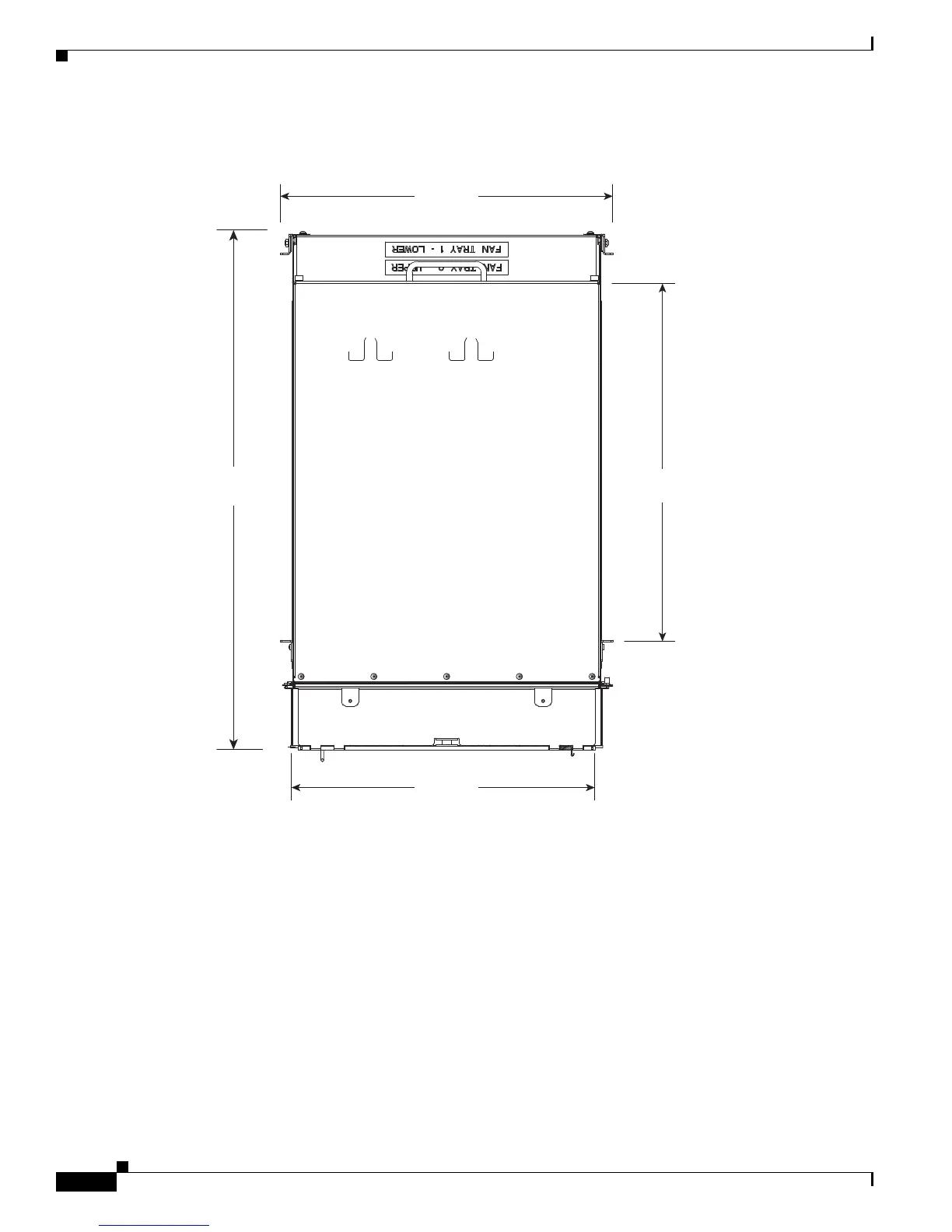

Figure 1-12 Cisco ASR 9912 Router Chassis Footprint Dimensions—Top Down View
Chassis Slots
All Cisco ASR 9010 Router chassis line cards and RSP cards are front-facing and mounted vertically,
with ejector levers and captive screws at the top and bottom of each card.
All Cisco ASR 9006 Router and Cisco ASR 9904 Router chassis line cards and RSP cards are
front-facing and mounted horizontally, with ejector levers and captive screws at the left and right ends
of each card.
All Cisco ASR 9922 Router chassis RP, FC, and line cards are front-facing and mounted vertically, with
ejector levers and captive screws at the top and bottom of each card.
303667
Rear of chassis
Front of chassis
17.60 in
(44.70 cm)
29.44 in
(74.78 cm)
18.97 in
(48.18 cm)
22 in
(55.88 cm)

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
