Chapter 1 Overview and Physical Description
Chassis Physical Overview
Cisco ASR 9912 Router
The Cisco ASR 9912 Router chassis is centered around a redundant pair of RP cards, seven redundant
FC cards, and ten line cards. The chassis fits in Telco, EIA, and ETSI racks and cabinets.
Figure 1-7 shows the slot locations for the chassis.

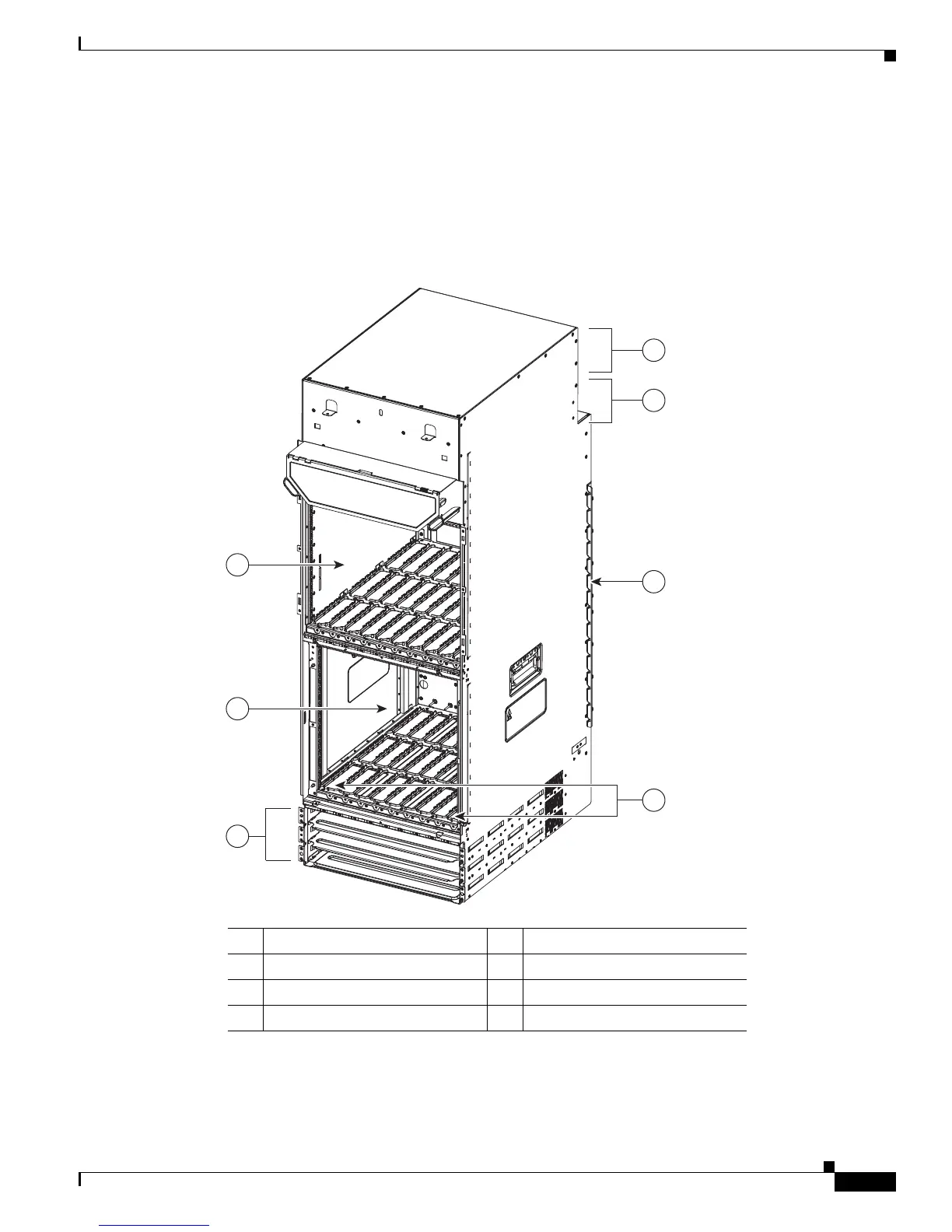

Figure 1-7 Cisco ASR 9912 Router Chassis Components
1 Ten slots for line cards 5 Two fan trays (rear insertion)
2 Seven center slots for FC cards 6 Rack mount bracket
3 Three bays for power trays 7 Two edge slots for RP cards
4 Rear air exhaust
7
1
6
2
3
4
5
304170

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
