Chapter 2 Functional Description
Modular Line Cards
Figure 2-38 2-Port 10-Gigabit Ethernet MPA
2-Port 40-Gigabit Ethernet Modular Port Adapter
The 2-Port 40-Gigabit Ethernet MPA provides two cages for QSFP+ Ethernet optical interface modules
that operate at a rate of 40 Gbps. The two QSFP+ modules can be 40-Gigabit Ethernet multimode or
single mode connections.
Each QSFP+ cage on the 2-Port 40-Gigabit Ethernet MPA has an adjacent A/L LED visible on the front
panel. The A/L LED indicates the status of the associated QSFP+ port.

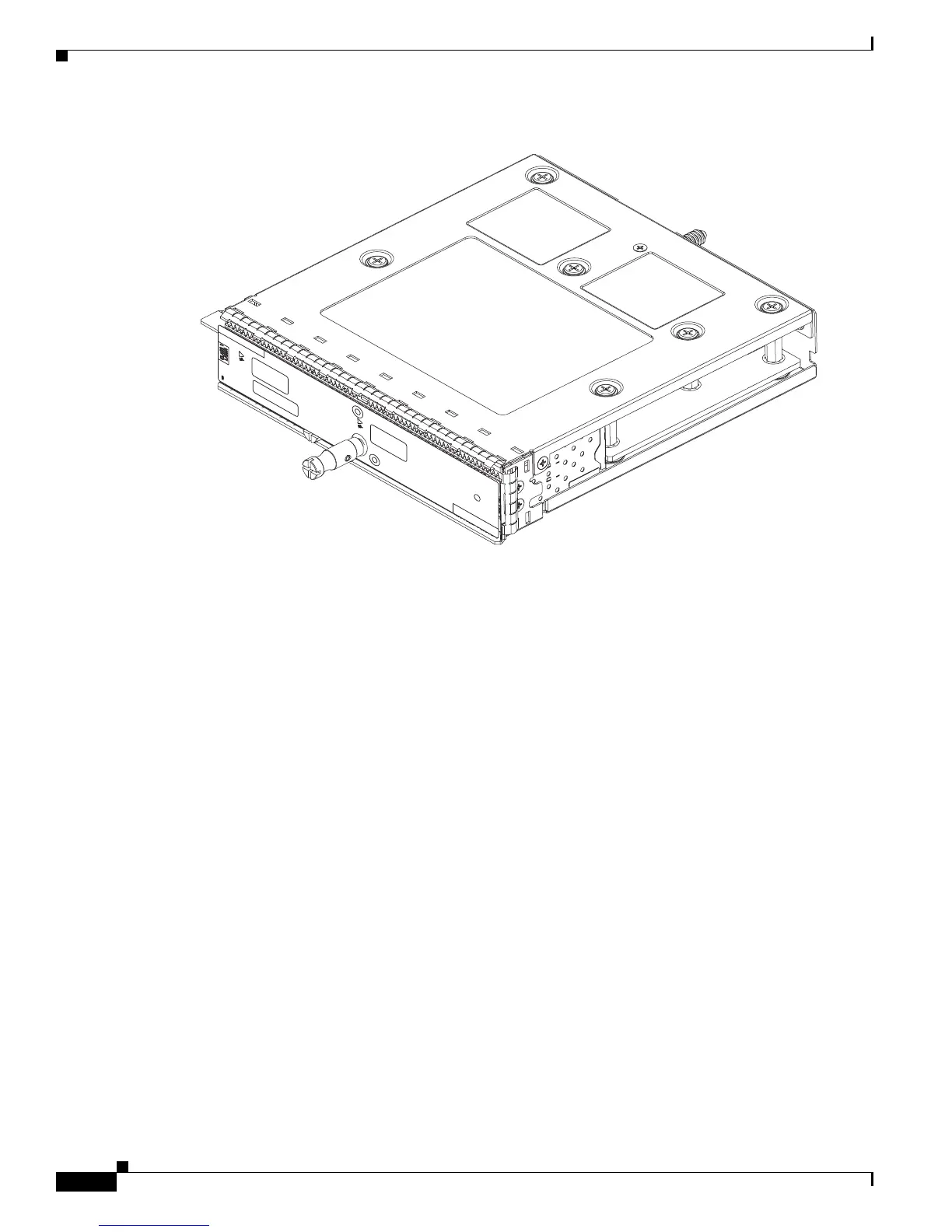

Figure 2-39 shows an example of the 2-Port 40-Gigabit Ethernet MPA.
330782
STATUS
A9K-MPA-2X10GE
A9K-MPA-2X10GE
0

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
