Cisco ASR 9010 Overview And Reference Guide

1-23
Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 1 Overview and Physical Description
Rack-Mounting Considerations

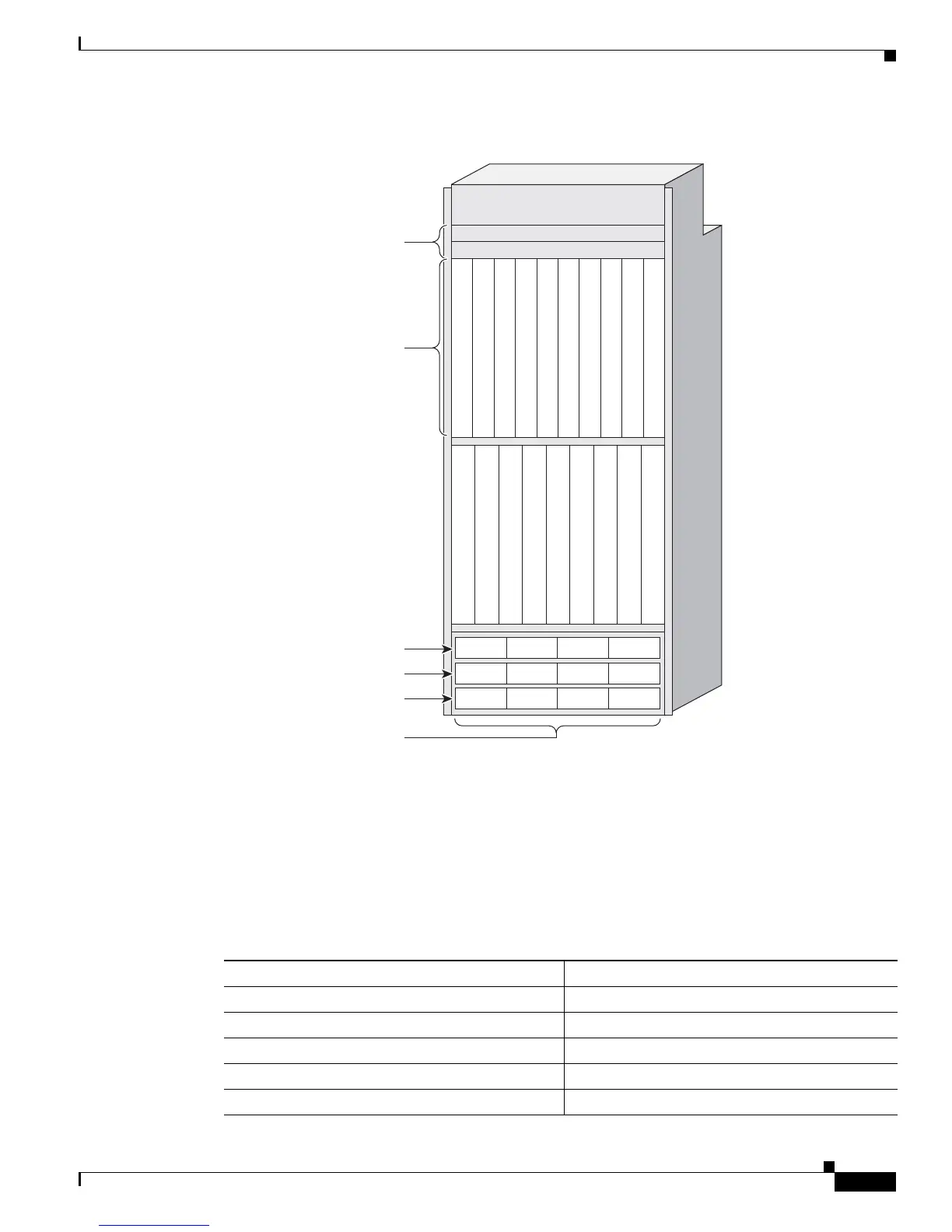

Figure 1-22 Cisco ASR 9912 Router Components and Slot Numbering
Power Module Hardware and Software Identification
The power modules have software IDs that differ from the hardware ID labels on the chassis shown in
the figures above. Table 1-1 lists the hardware IDs and the corresponding software IDs for the power
modules.
303672
M3M2M1M0
M7M6M5M4
M11M10M9M8
PS0
Power modules
PS1
PS2
Fan trays
(rear instertion)
Line cards
LC0 LC1 LC2 LC3 LC4 LC5 LC6 LC7 LC8 LC9
Slot 0 Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Slot 9
FT0
FT1
RP0
FC0 FC6
RP1
FC1 FC2 FC3 FC4 FC5
Power shelves/trays
Table 1-1 Power Module Hardware and Software IDs
Hardware ID Software ID
PS0 M0 PM0
PS0 M1 PM1
PS0 M2 PM2
PS0 M3 PM3
PS1 M0 PM4

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
