Cisco ASR 9010 Overview And Reference Guide

2-7
Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 2 Functional Description
Route Switch Processor Card

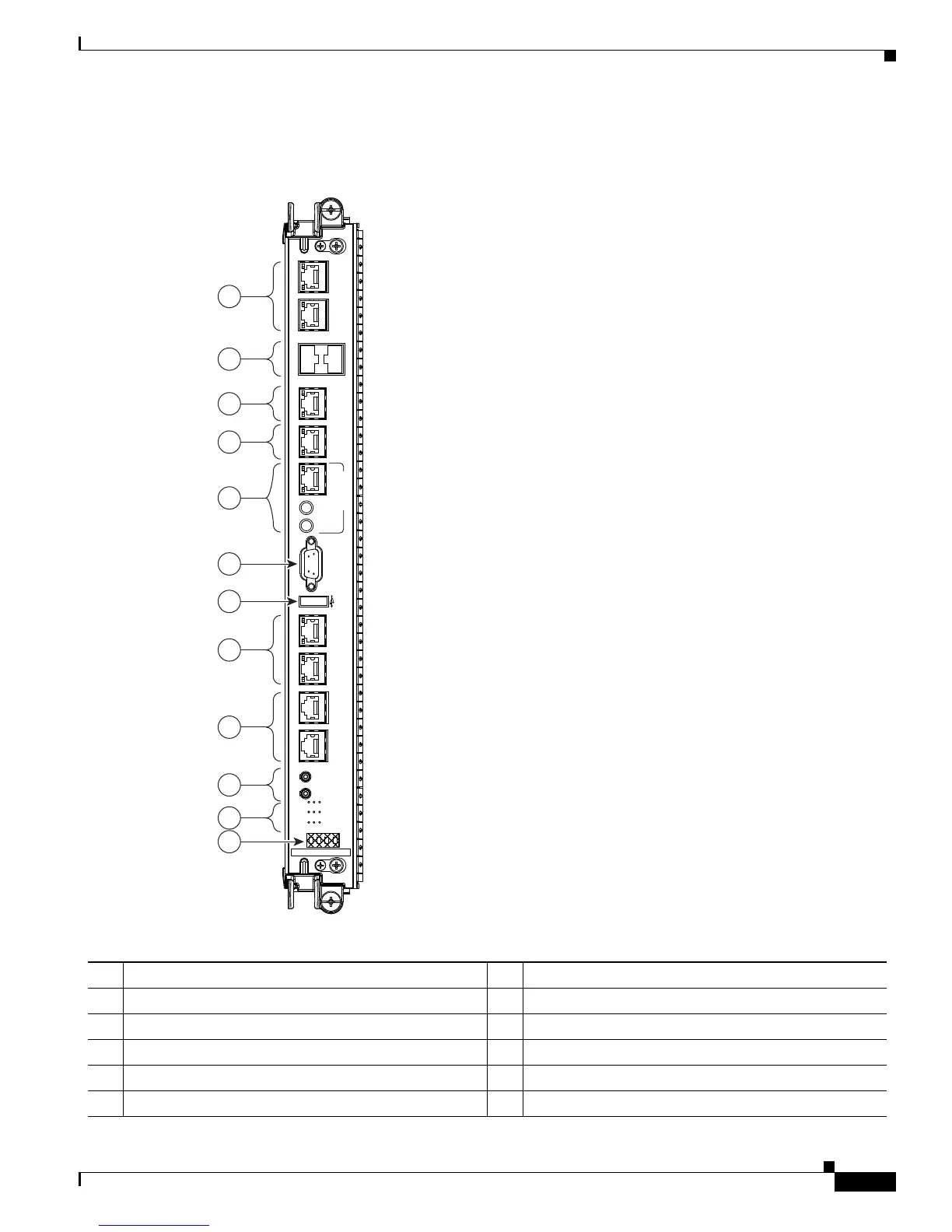

Figure 2-7 shows the front panel of the RSP-440 card.
Figure 2-7 RSP-440 Card Front Panel
330841
SYNC 0 SYNC 1
SFP + 0 SFP + 1
IEEE 1588 ICS0
A9K-RSP440-SE
BITS J211 BITS J211
LINK ACT
ALARM OUT
ACO
LAMP
TEST
AUX
CONSOLEMGT LAN 1
BITS J.211
MGT LAN 0
BITS J.211
10MHz 1PPS
FC FAULT MAJ
ACO
SSD
CRIT
FAIL
GPS
MIN
SYNC
GPS INTERFACE
ICS1/TOD
6
7
12
1
8
9
11
10
2
3
4
5
1 SYNC (BITS/J.211) ports 7 External USB port
2 SFP ports 8 Management LAN ports
3 IEEE 1588 port 9 CONSOLE and AUX ports
4 ToD port 10 Alarm Cutoff (ACO) and LAMP TEST push buttons
5 10MHz and 1PPS indicators 11 Eight discrete LED indicators
6 Alarm Out DB9 connector 12 LED matrix display

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
