Cisco ASR 9010 Overview And Reference Guide

1-18
Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 1 Overview and Physical Description
Rack-Mounting Considerations
Slot Numbering and Marking
All card slots are clearly numbered. Labels identifying slots are visible from the front of the chassis and
are clearly numbered below each slot. As mentioned previously, fiber and cables are routed upward and
do not obscure the slot ID labels.
Figure 1-16 shows slot ID numbering for the Cisco ASR 9010 Router with version 1 power trays.
Figure 1-17 shows slot ID numbering for the Cisco ASR 9010 Router with version 2 power trays.

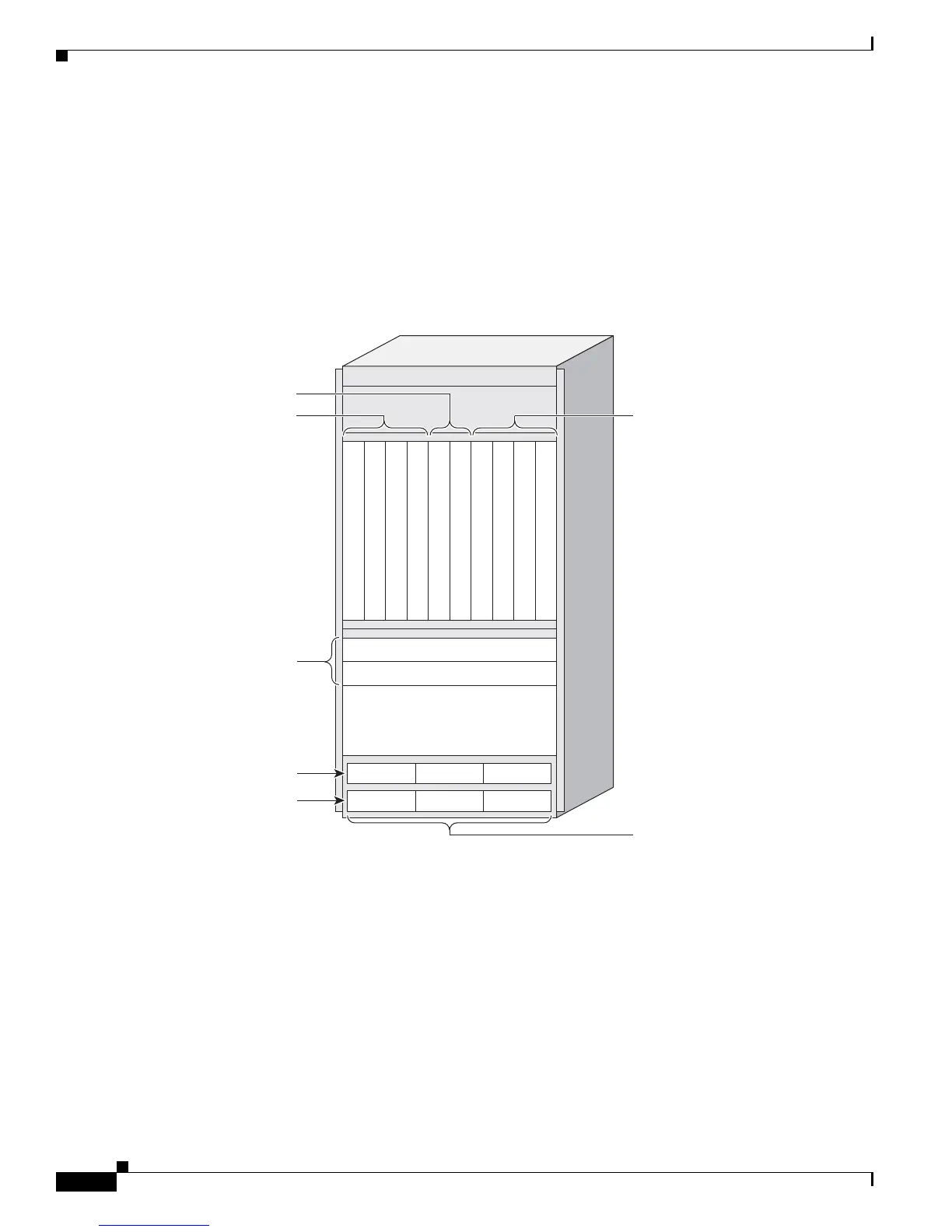

Figure 1-16 Cisco ASR 9010 Router Router Slot ID Numbering—Version 1 Power Trays
242689
Line card Line card Line card Line card
RSP0 RSP1
FT0
FT1
Front air intake
Line card Line card Line card Line card
Slot 0 Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Slot 9
Power shelves
PS0
PS1
Power modules
M0 M1 M2
M0 M1 M2
Line cards 0-3
Fan trays
Line cards 4-7
RSP cards
0123 4567

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
