Cisco ASR 9010 Overview And Reference Guide

1-19
Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 1 Overview and Physical Description
Rack-Mounting Considerations

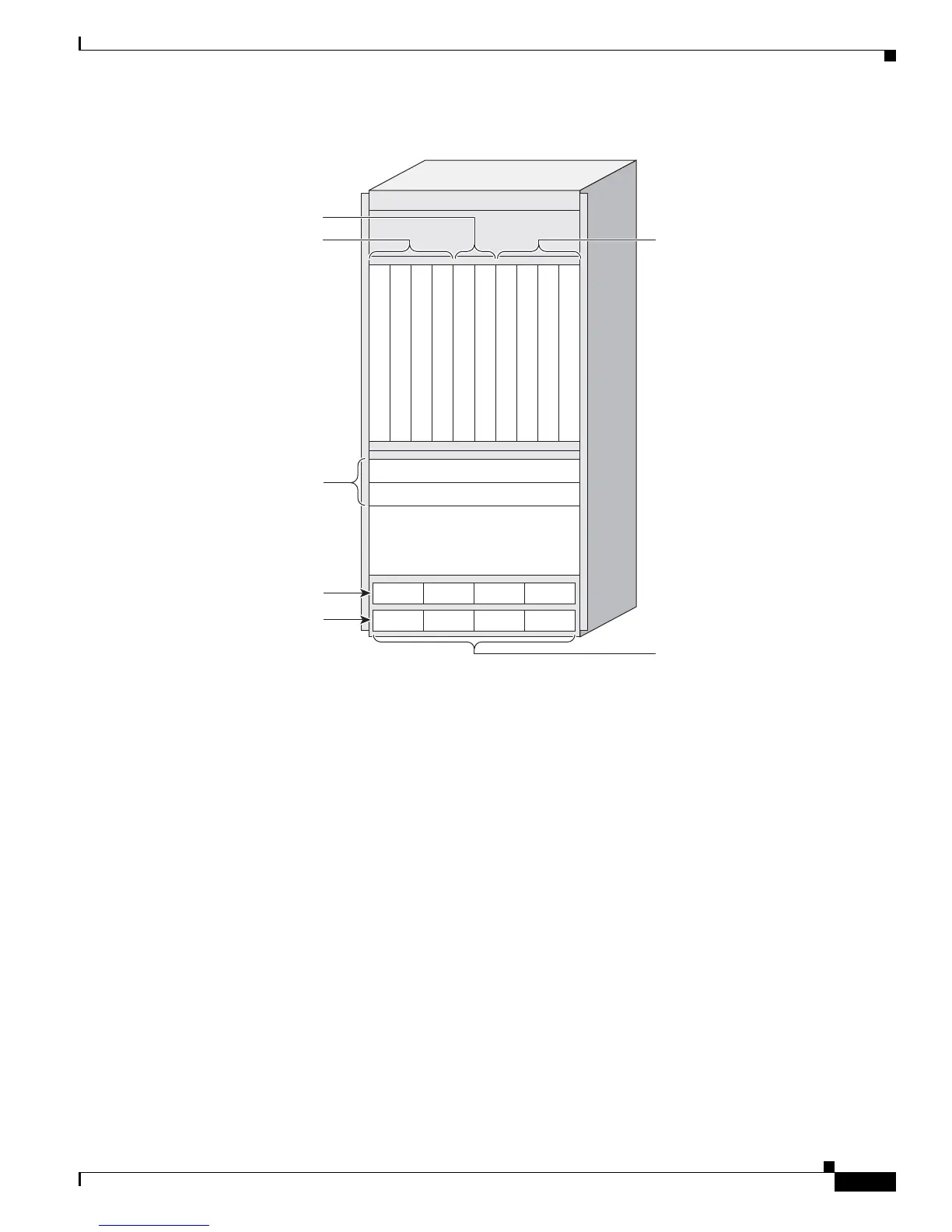

Figure 1-17 Cisco ASR 9010 Router Slot ID Numbering—Version 2 Power Trays
284401
Line card Line card Line card Line card
RSP0 RSP1
FT0
FT1
Front air intake
Line card Line card Line card Line card
Slot 0 Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Slot 9
Power shelves
PS0
PS1
Power modules
M0 M1 M2
M0 M1 M2
M3
M3
Line cards 0-3
Fan trays
Line cards 4-7
RSP cards
0123 4567

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
