Cisco ASR 9010 Overview And Reference Guide

1-3
Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 1 Overview and Physical Description
Chassis Physical Overview

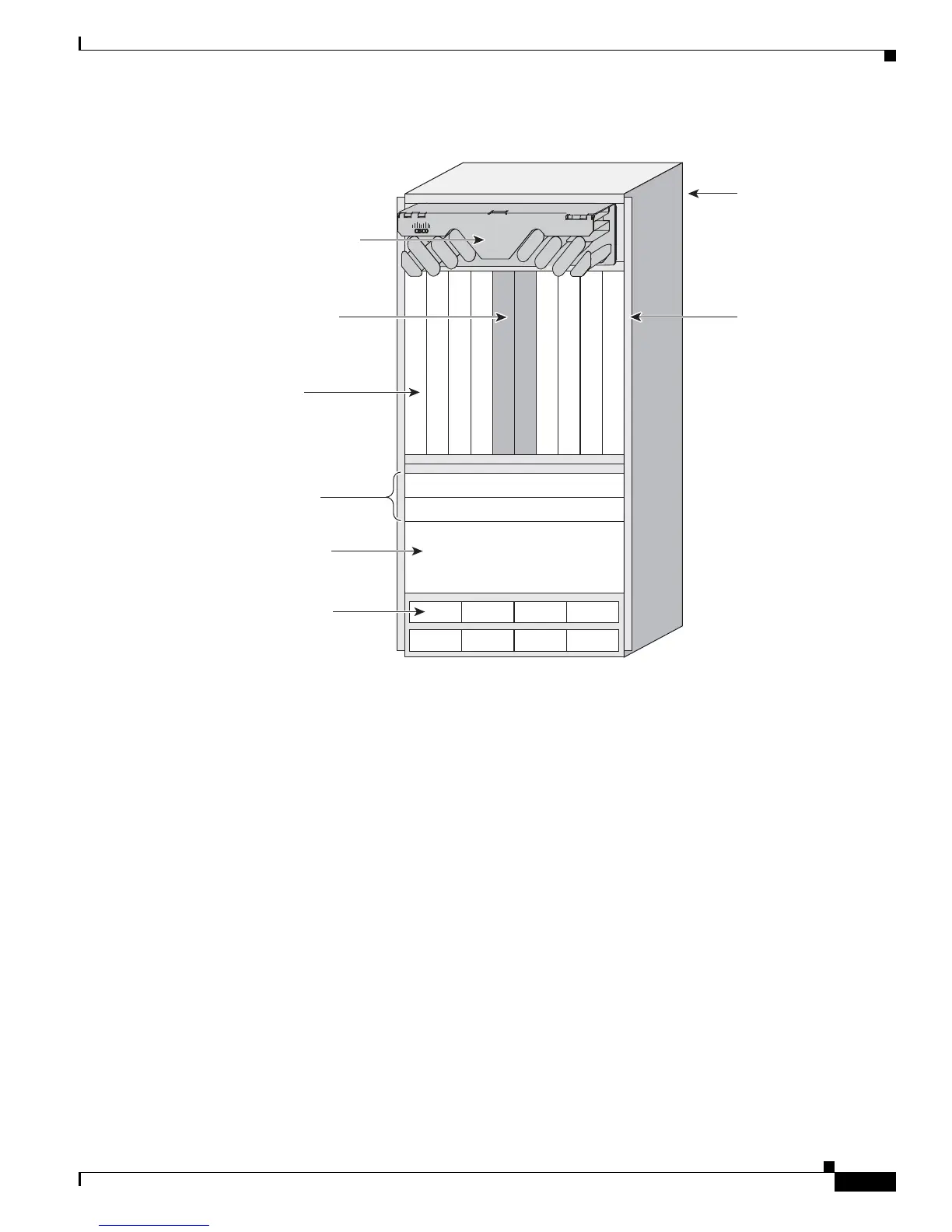

Figure 1-2 Cisco ASR 9010 Router Chassis Components—Version 2 Power Trays
284400
Eight AC/DC or
DC/DC power modules
Front air intake
Eight slots
(four on each side)
for line cards
Rear air exhaust
Rack mount bracket
Two fan trays
Two center slots
reserved for
redundant RSPs
Cable management
tray

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
