Chapter 2 Functional Description
Ethernet Line Cards

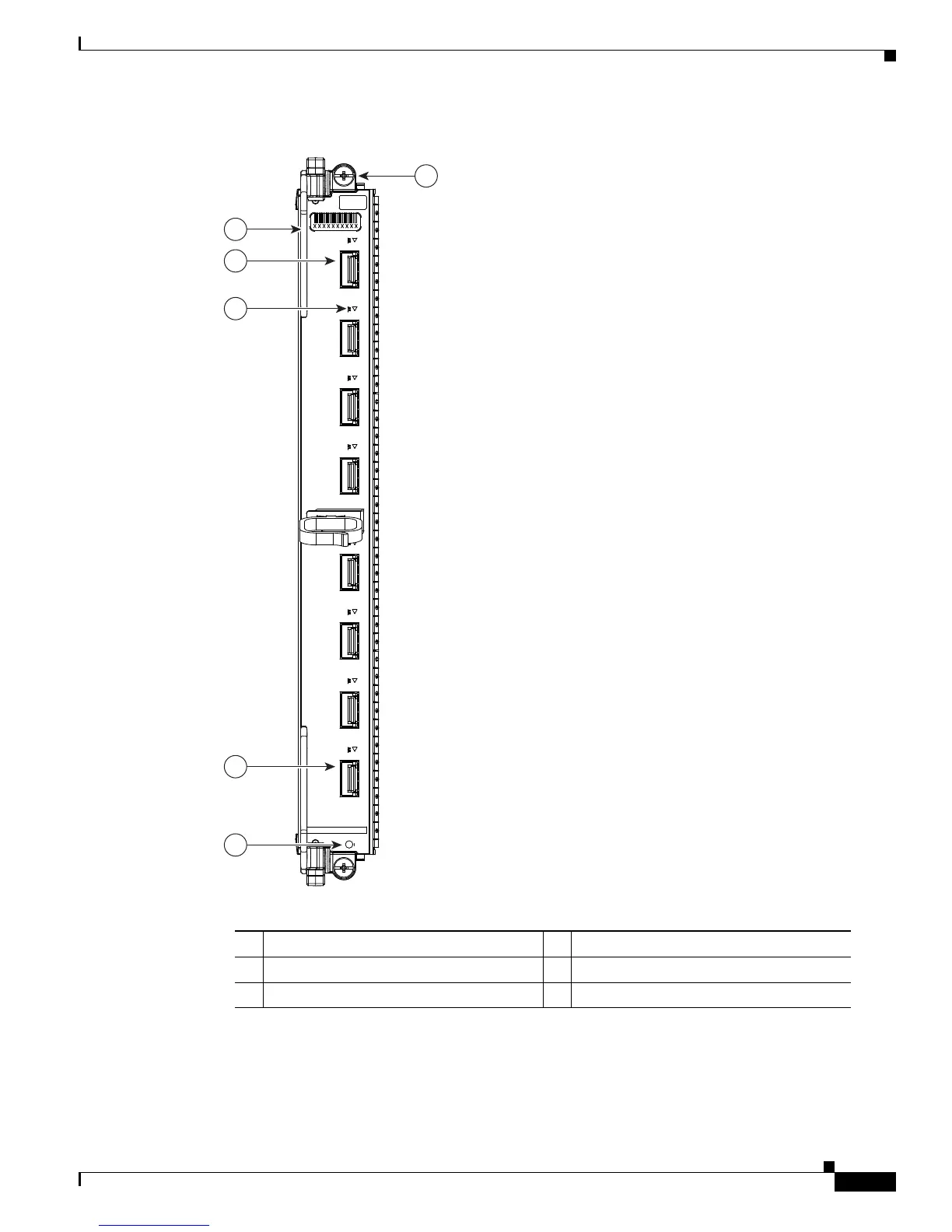

Figure 2-20 8-Port 10-Gigabit Ethernet (8x10GE) 2:1 Oversubscribed Line Card Front Panel
1 Ejector lever (one of two) 4 Port 7 XFP cage
2 Port 0 XFP cage 5 Line Card Status LED
3 Port Status LED (one per port) 6 Captive installation screw (one of two)
242984
CLASS 1
LASER
0123 4 567
A9K-8T/4E
STATUS
1
6
2
4
5
3

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
