Chapter 2 Functional Description
Cooling System Functional Description

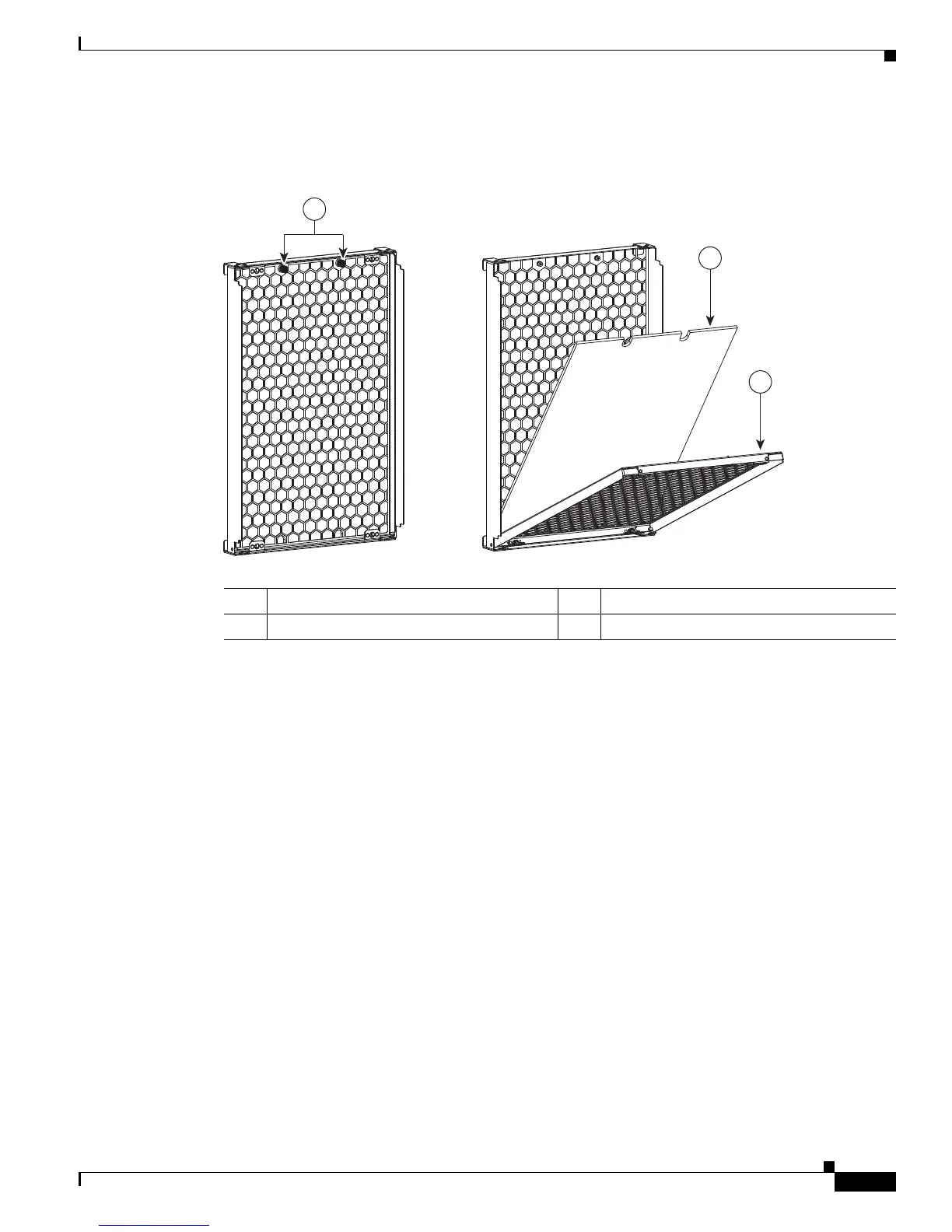

Figure 2-78 shows how to replace the foam media inside the center air filter.
Figure 2-78 Cisco ASR 9922 Router Chassis Center Air Filter
1 Loosen thumb screws. 3 Remove foam filter media.
2 Rotate and lower inner frame.
302420
1
2
3

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
