Cisco ASR 9010 Overview And Reference Guide

2-4
Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 2 Functional Description
Router Operation

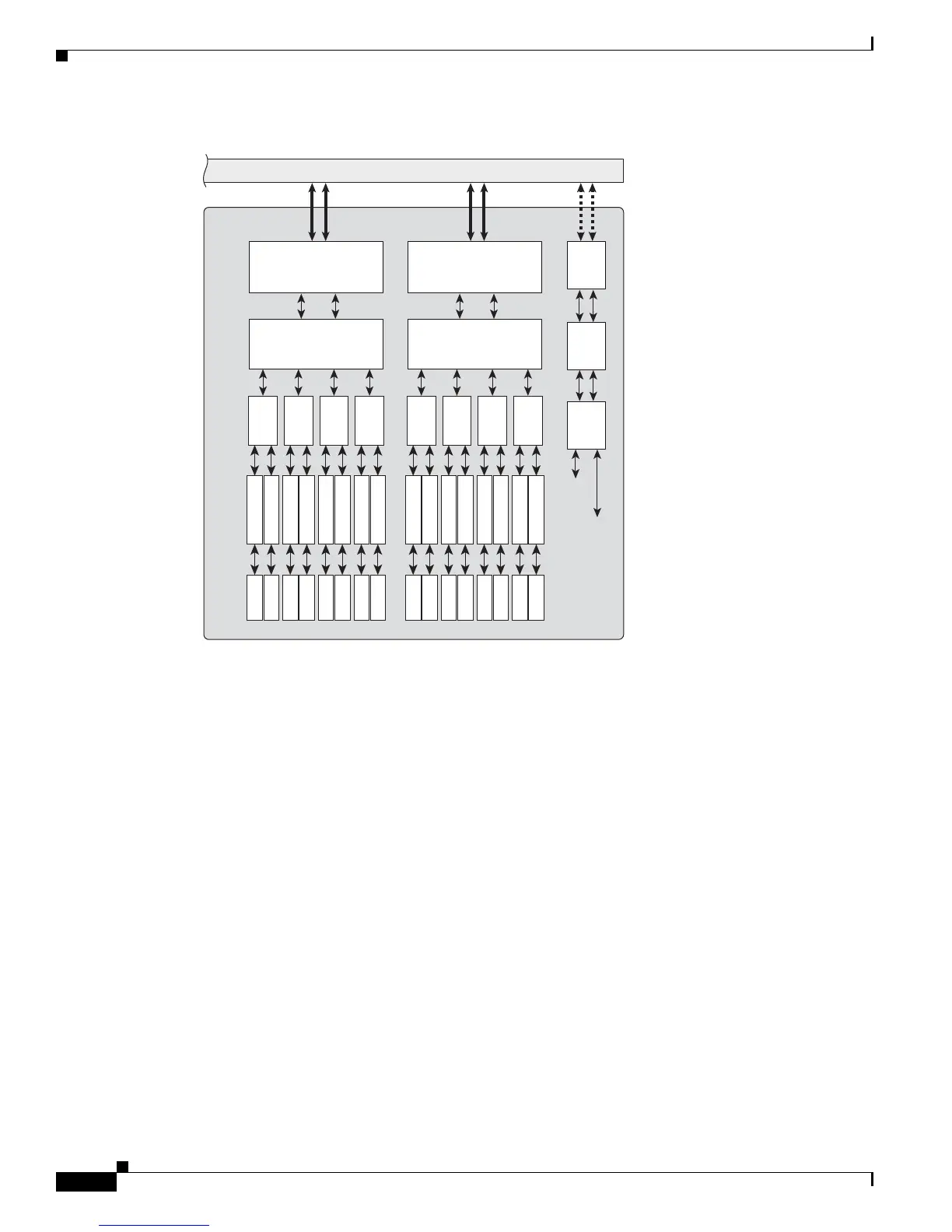

Figure 2-4 Additional System Components in the Cisco ASR 9000 Series Routers
248890
Backplane
16x10GE SFP+
Line Card
GE
PHY
Fabric
Interface
Chip
FPGA
NPU NPU NPU NPU
Fabric
Interface
Chip
FPGA
NPU NPU NPU NPU
CPU
GE
SW
To
FPGAs
To
NPUs
10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+ 10G PHYSFP+

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
