Cisco Catalyst IW9167I - 4-Pin Micro-Fit Connector for DC Power; M12-RJ45 Adapter

Status LED2Console port (RJ-45) and reset button
For information on how to use the Reset
button, see Using the Reset Button, on page
51.
1
100M/1000M/2.5G/5G Multigigabit Ethernet
(RJ-45) / M12 X-code auto-sensing PoE+ in
(802.3at/bt), UPOE-in
M12 X-code port by using
M12-RJ45 adapter can support
up to 2.5G rate.
Note
4SFP (copper) 100M/1000M/10G
Multigigabit Ethernet /M12 X-code or SFP
(fiber) 1G/10G
M12 X-code port by using
M12-RJ45 adapter can support
up to 2.5G rate.
Note
3
DC power input (micro-fit, or M12 4-pin
A-code by using M12 adapter)
5
4-Pin Micro-Fit Connector for DC Power

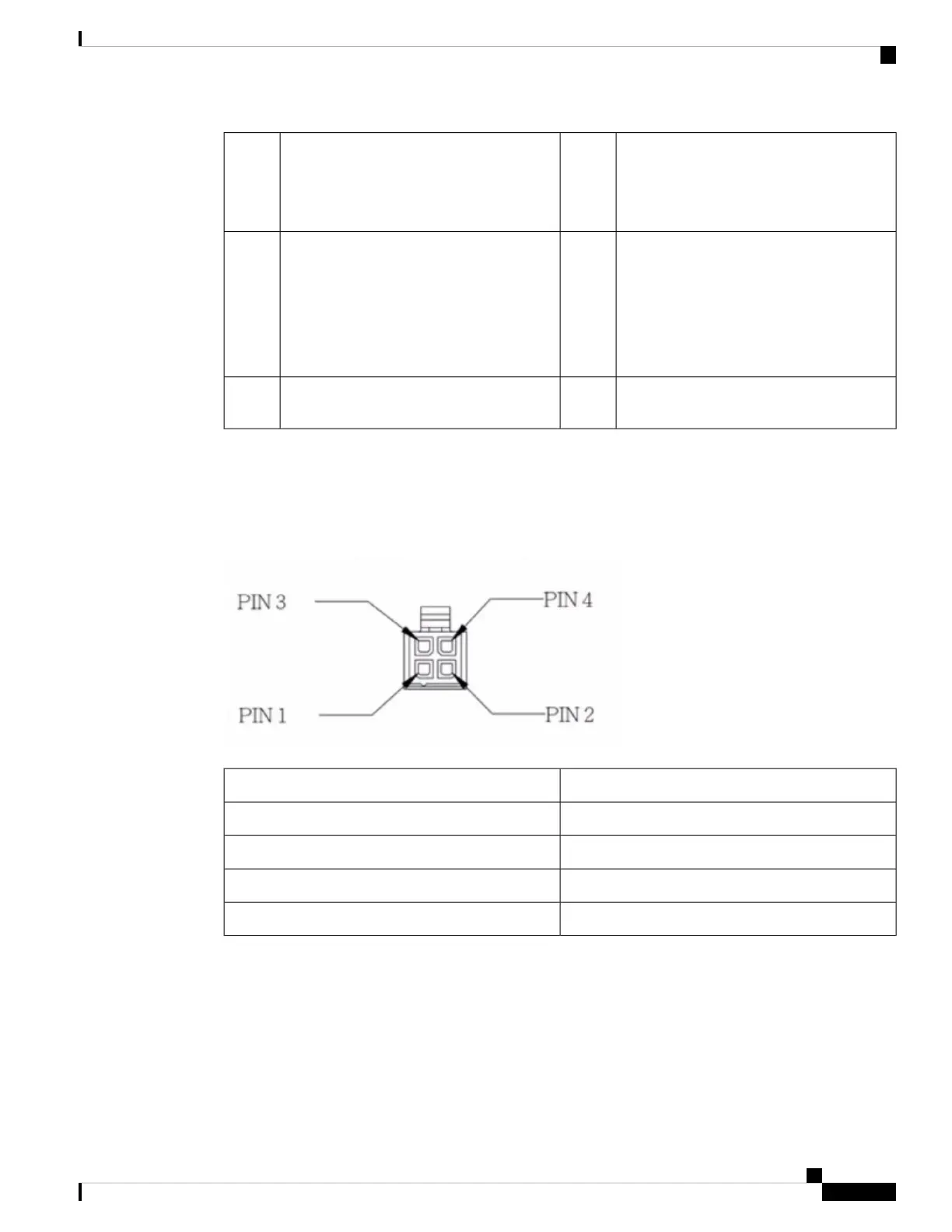

The following figures show the 4-pin Micro-Fit connector for DC power.
Figure 2: Mating Connector Front View
AssignmentMolex Micro-Fit Pin
DC- (Negative Terminal)Pin 1
Not assignedPin 2
DC+ (Positive Terminal)Pin 3
Not assignedPin 4
M12-RJ45 Adapter
M12-RJ45 adapter (Cisco PID: IW-ACC-M12ETH=) can be used to support M12 X-coded connector.
