Cisco Catalyst IW9167I - Connecting DC Power Port Using M12 Adapter

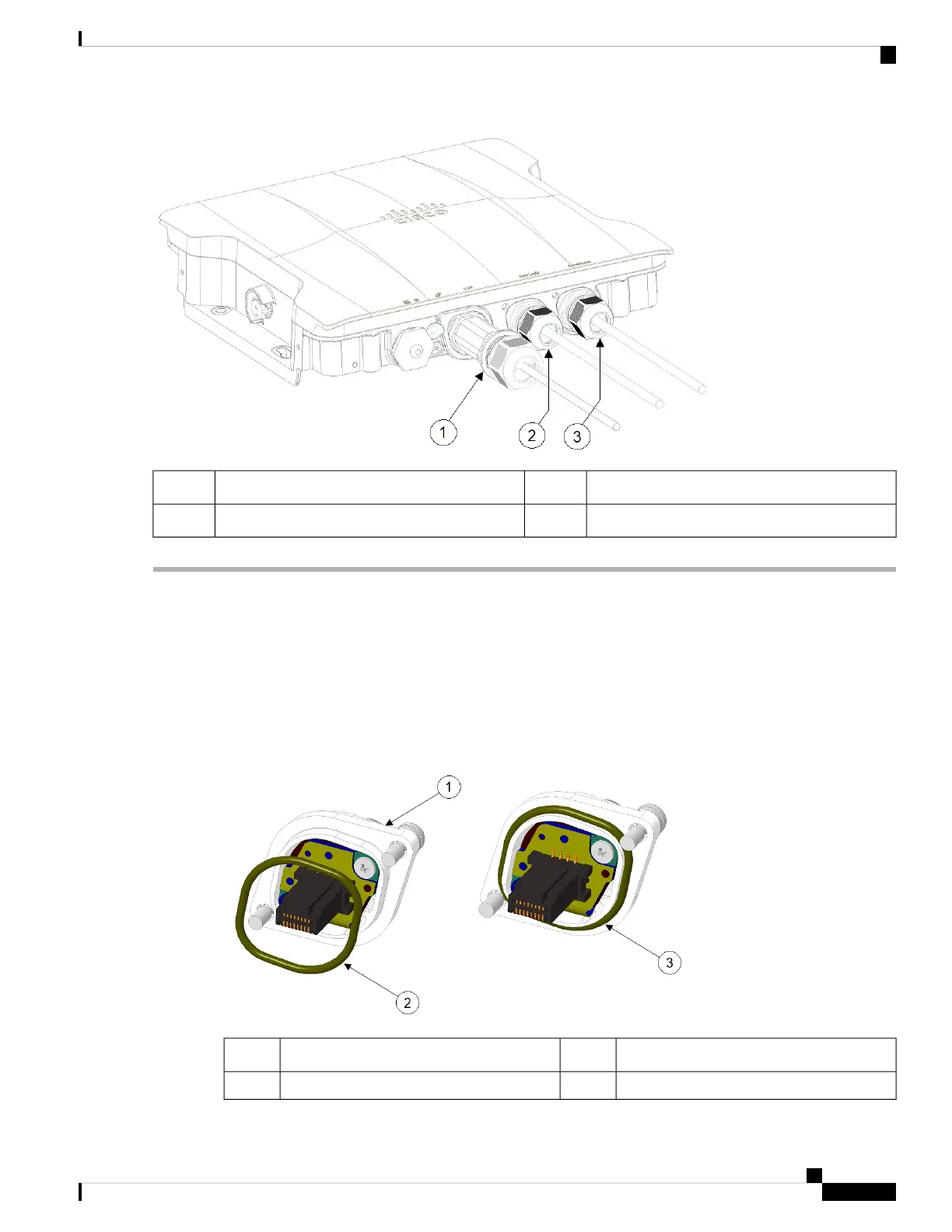

DC power port connected using cable gland3SFP port connected using cable gland1
RJ-45 port connected using cable gland2
Connecting DC Power Port Using M12 Adapter
Before you begin
O-rings are shipped separately from the M12 adapter. You need to place the o-ring on the adapter before
installing the M12 adapter to the chassis.
Figure 29: Installing O-ring on the M12 Adapter
O-ring2M12 adapter1
O-ring installed on M12 adapter3
Cisco Catalyst IW9167I Heavy Duty Access Point Hardware Installation Guide
37
Installation Overview
Connecting DC Power Port Using M12 Adapter
