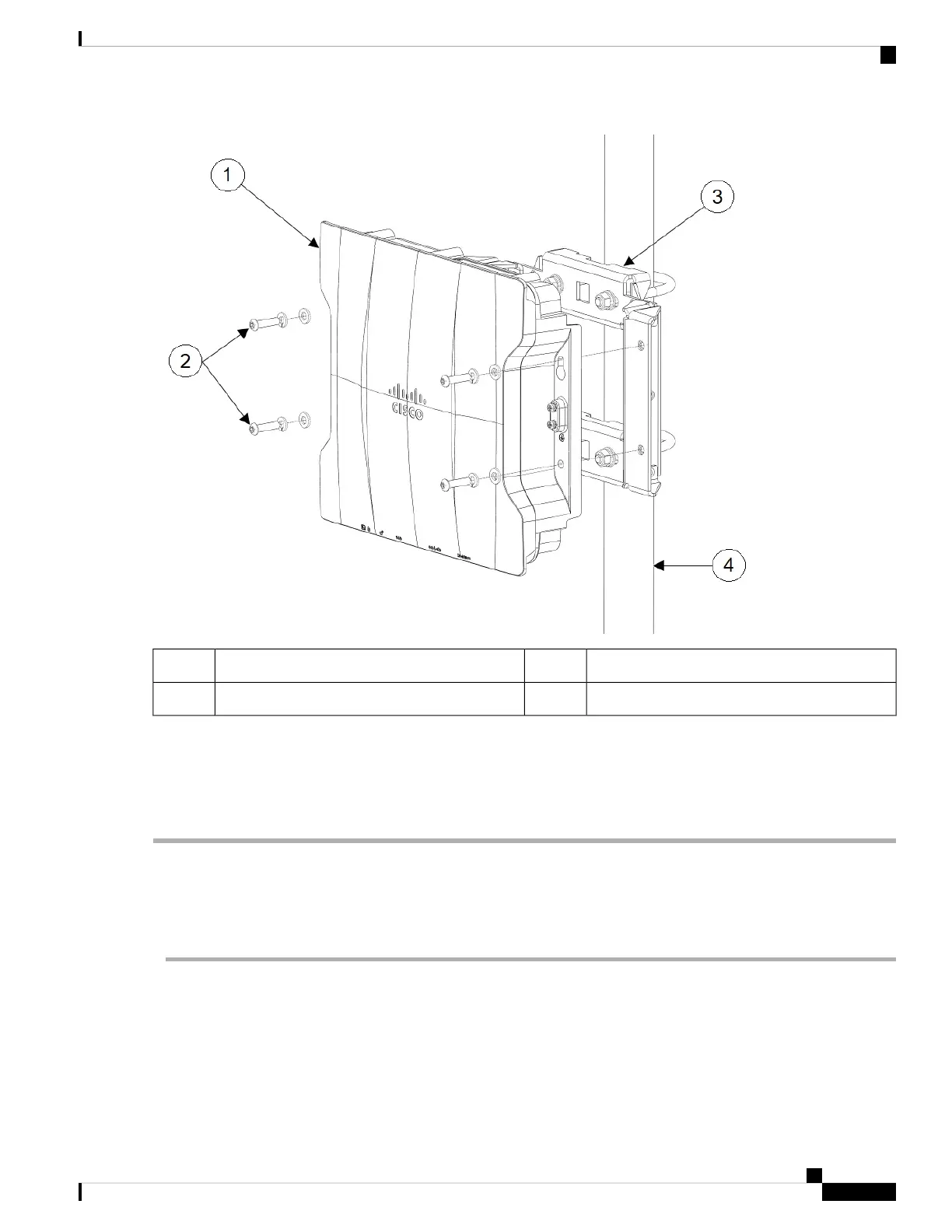

Pole mounting bracket3Access point1
2"– 3.2" (5–8 cm) diameter pole4M6 bolts and washers2
Ensure that the access point is firmly secured to the mounting bracket.
Note
You can use the keyholes for “hands-free” installation. Ensure that you torque the nuts to 6 to 7 ft-lbs.
Never leave the access point unattended if the mounting hardware is not torqued to full value.
Caution
Using the Mounting Bracket AIR-ACCPMK3700-2=
The mounting bracket AIR-ACCPMK3700-2= supports poles from 2 to 16 inches in diameter. To mount the
access point on a pole using this mounting bracket:
Step 1 Assemble two strap brackets on the pole clamp bracket that are positioned for the pole diameter you are using to mount
the access point. The following image illustrates the pole diameter indicators and bolt holes on the pole clamp bracket.
Cisco Catalyst IW9167I Heavy Duty Access Point Hardware Installation Guide
25
Installation Overview
Using the Mounting Bracket AIR-ACCPMK3700-2=
