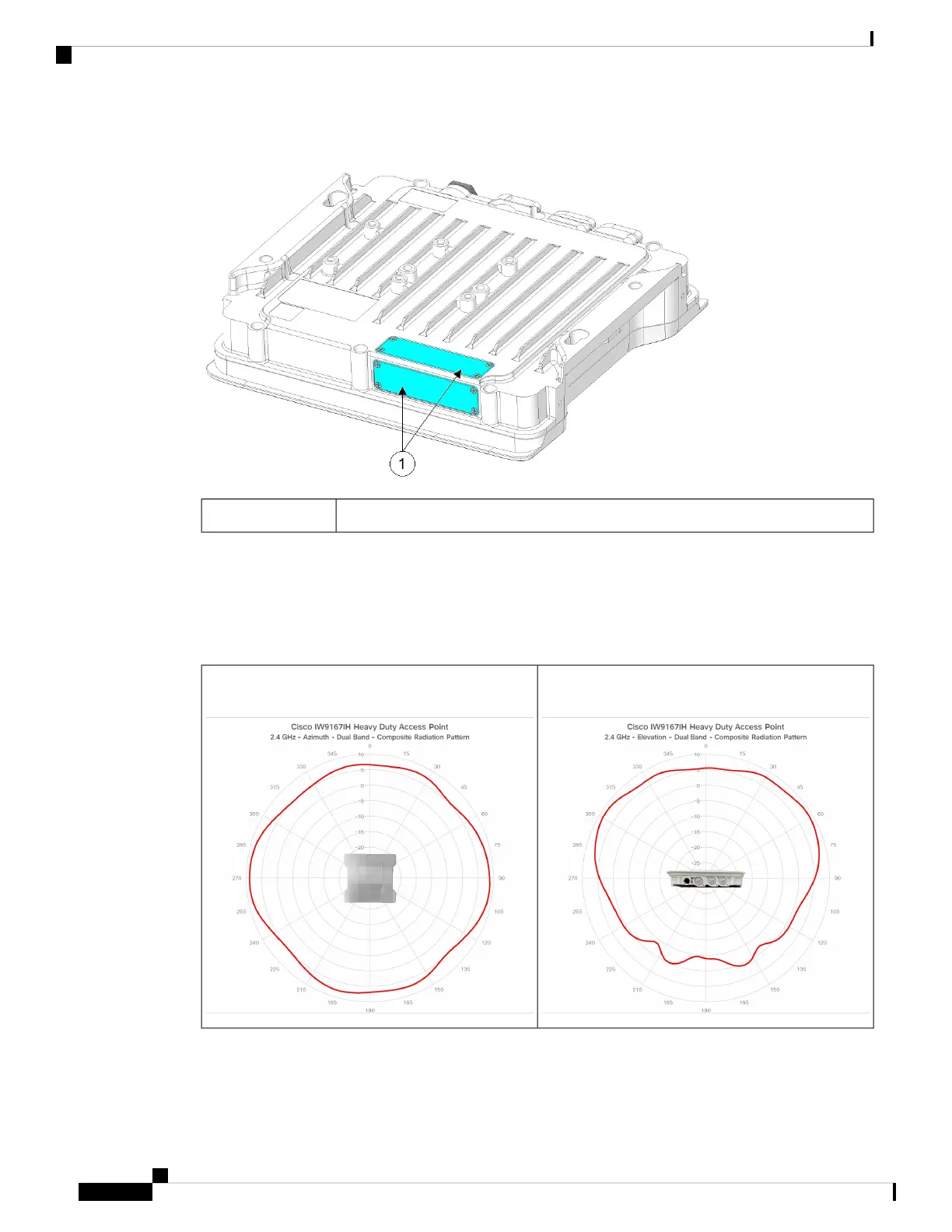

Figure 5: GNSS Windows
GNSS windows1
IW9167I (Internal Antenna) Radiation Patterns
The following illustrations show the IW9167I model with internal antenna radiation patterns:
Table 4: Cisco Catalyst IW9167I Radiation Patterns
Figure 7: IW9167I - Dual Band Composite Radiation Pattern (2.4-GHz
Elevation)
Figure 6: IW9167I - Dual Band Composite Radiation Pattern (2.4-GHz
Azimuth)
