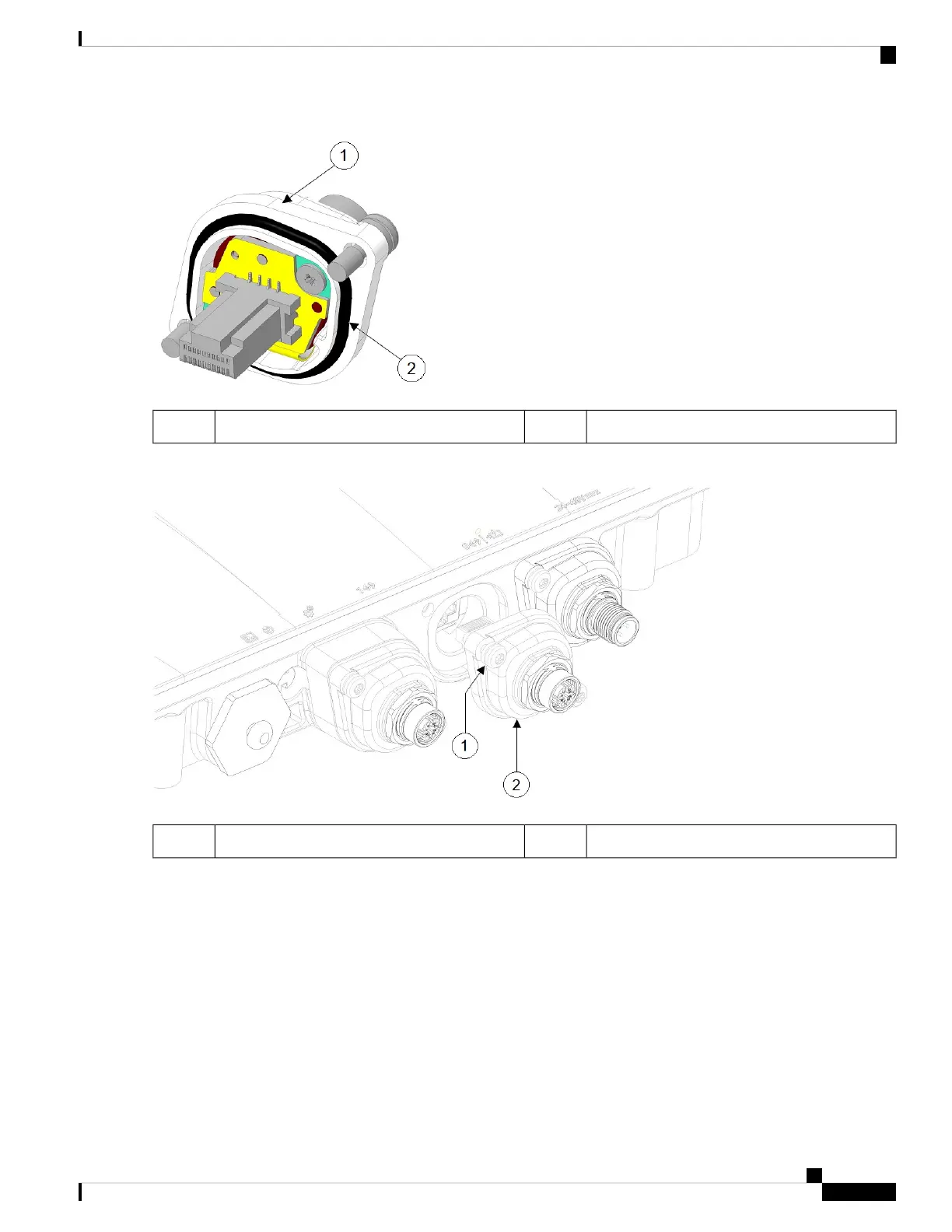

O-ring2M12 adapter1
Step 2 Align the RJ45 tab with the RJ45 connector in the chassis, and plug the M12 adapter into thechassis.
M12-RJ45 adapter2Captive screws1
Step 3 Tighten the M12 adapter captive screws into the chassis. Torque to 15-20 in-lbs.
Cisco Catalyst IW9167I Heavy Duty Access Point Hardware Installation Guide
41
Installation Overview
Connecting to the RJ45 Port Using M12 Adapter
