Cisco CGS 2520 - Attaching Brackets for 19-Inch Racks

2-5
Cisco CGS 2520 Hardware Installation Guide
OL-31444-01
Chapter 2 Switch Installation
Installing the Switch

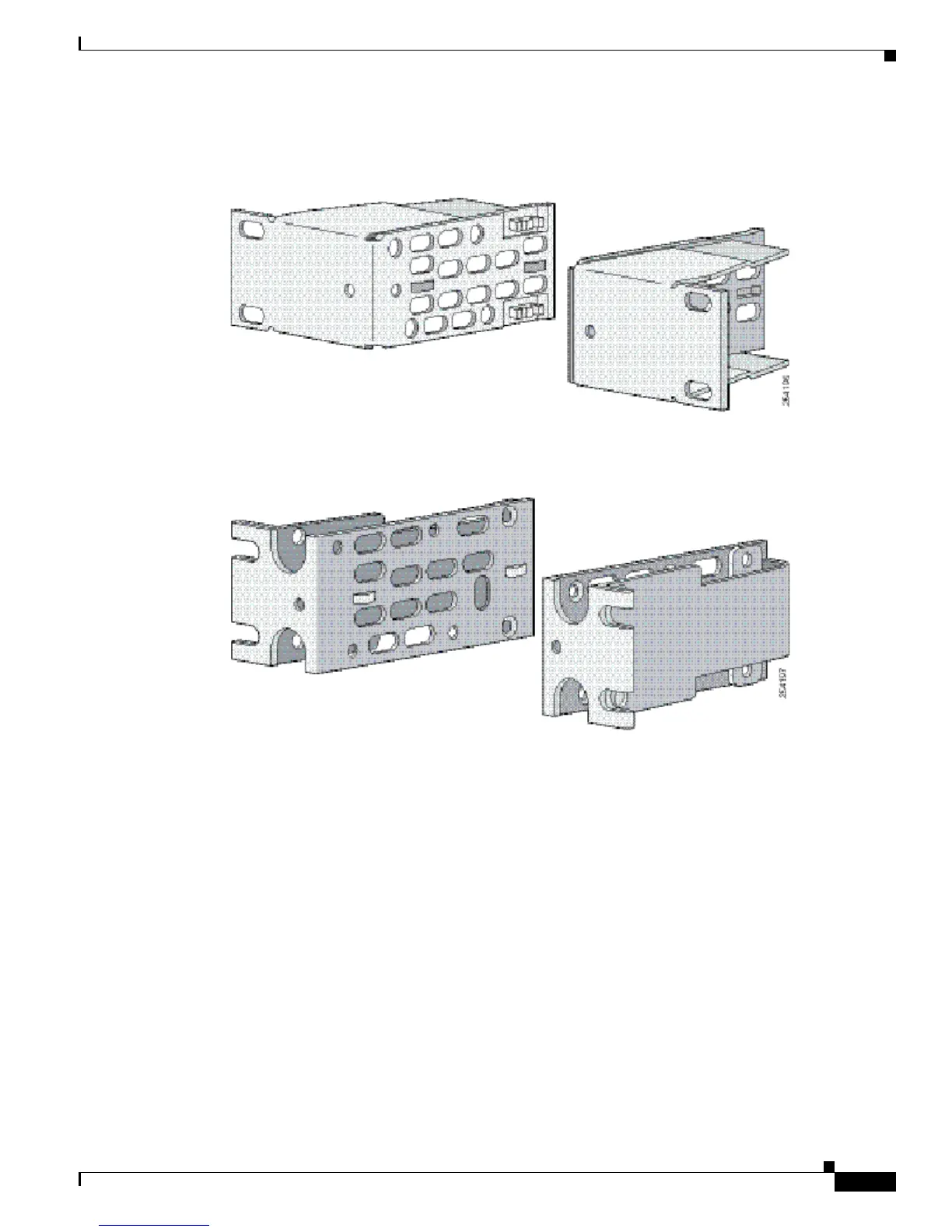

Figure 2-2 shows the 23-inch rack mounting brackets.
Figure 2-2 23-inch Mounting Brackets
Figure 2-3 shows the ETSI rack mounting brackets.
Figure 2-3 ETSI Mounting Brackets
Attaching Brackets for 19-Inch Racks
Figure 2-4 and Figure 2-5 shows the 19-inch rack mounting bracket locations on the switch for
cable-side mounting and power-side mounting onto an 19-inch rack.
