Cisco CGS 2520 Hardware Installation Guide
OL-31444-01
Chapter 2 Switch Installation
Installing the Switch

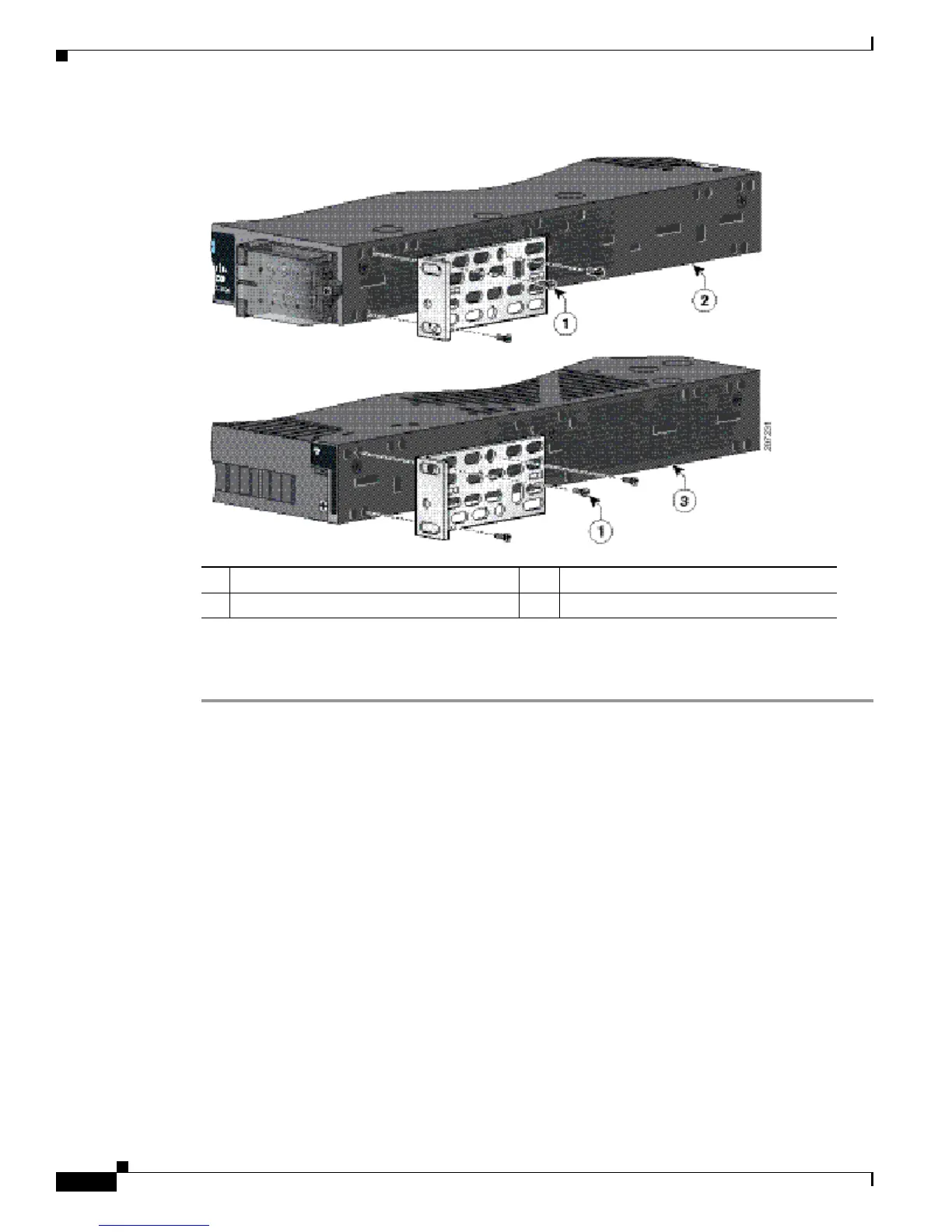

Figure 2-10 Attaching Brackets for 19-Inch Racks
Note
For IP-30 compliance: If you use 23-inch brackets or ETSI brackets, you can insert the rubber
plugs in the same holes as shown in Figure 2-6 and Figure 2-7 before installing the brackets.
Attaching Brackets for 23-Inch Racks
Figure 2-11 shows the 23-inch rack mounting bracket locations on the switch for cable-side mounting
and power-side mounting onto a 23-inch rack.
1 Phillips flat-head screws 3 Power supply-side mounting position
2 Cable-side-mounting position
