Cisco CGS 2520 Hardware Installation Guide
OL-31444-01
Chapter 2 Switch Installation
Inserting and Removing the SFP Module Patch Cable

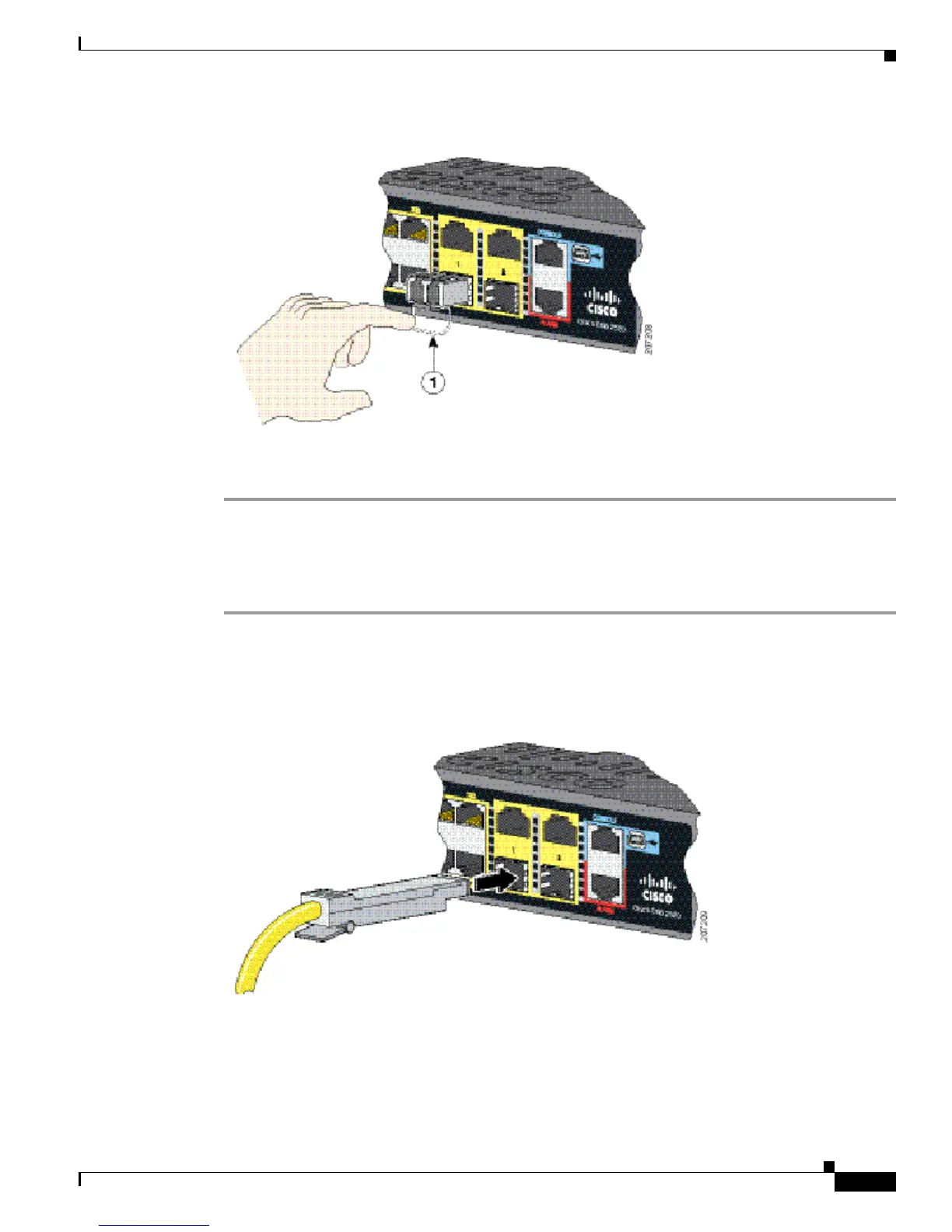

Figure 2-18 Removing a Bale Clasp Latch SFP Module
Step 5
Grasp the SFP module, and carefully remove it from the slot.
Step 6 Place the module in an anti-static bag or other protective environment.
Inserting and Removing the SFP Module Patch Cable
Step 1 Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
Step 2 Insert the SFP module patch cable into the slot until you feel the connector on the cable snap into place
at the rear of the slot (see Figure 2-19).
Figure 2-19 Inserting an SFP Module Patch Cable
Step 3 Repeat these steps for the second switch that you want to connect to the first switch.
