2-7
Cisco CGS 2520 Hardware Installation Guide
OL-31444-01
Chapter 2 Switch Installation
Installing the Switch

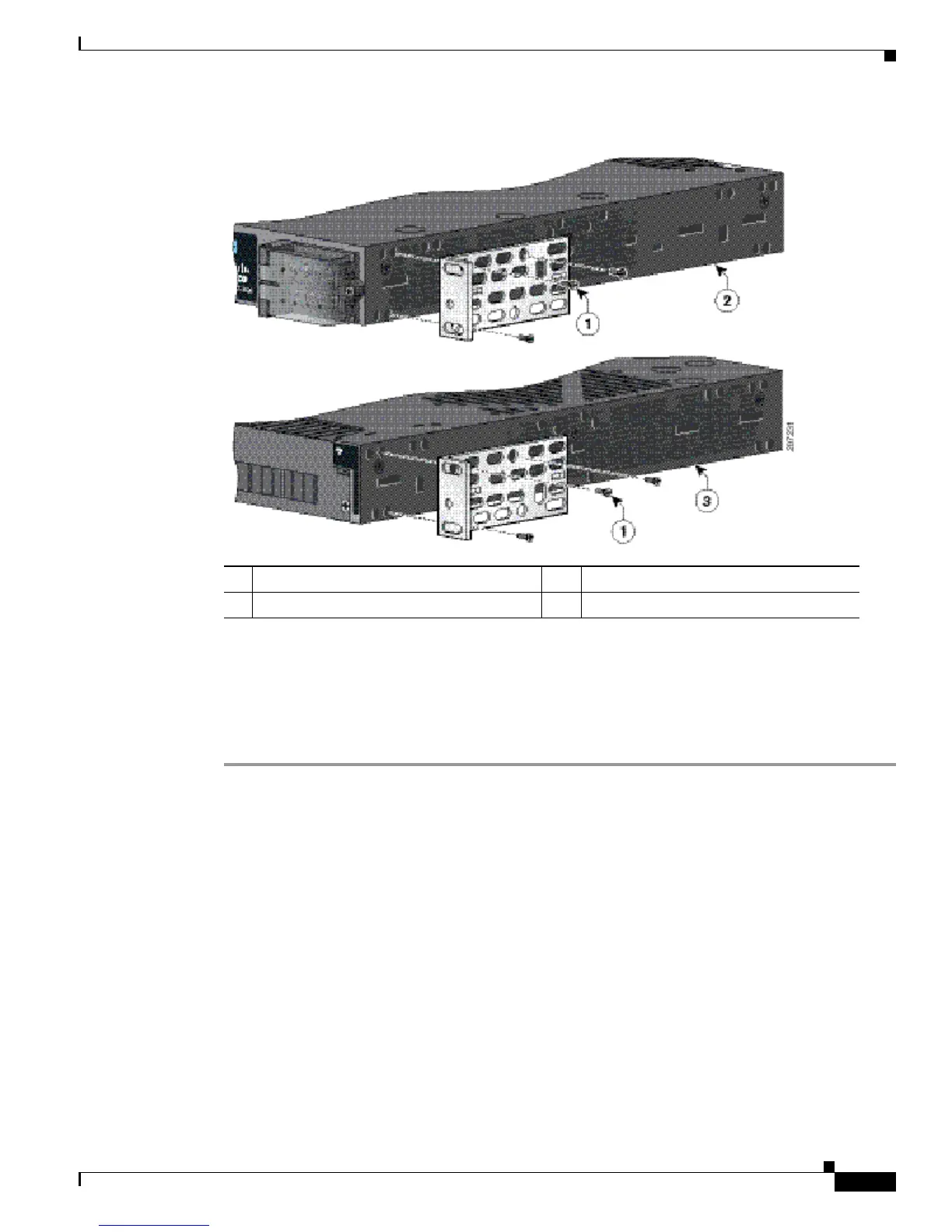

Figure 2-5 Attaching Brackets for 19-Inch Racks
Attaching Brackets for 19-Inch Racks (IP-30 Compliance)
Before installing the mounting brackets, you need to install the rubber plugs into the unused mounting
holes of the switch chassis. You can get the appropriate rubber plugs by ordering kit CGS-2520-IP30KIT.
Follow the procedure below to install the rubber plugs.
Step 1 Determine whether you will install using the mid-mount, cable-side, or power supply-side positioning
by identifying your bracket mounting positions shown in Figure 2-9 and Figure 2-10.
Step 2 Insert the rubber plugs into the appropriate holes according to your mount position as shown in
Figure 2-6 and Figure 2-7. Follow the same procedure for both sides of the switch.
1 Phillips flat-head screws 3 Power supply-side mounting position
2 Cable-side-mounting position
